EVE-E
Air Curtain

Elite Vestibule Exception (EVE) Electric Heated Air Curtain

Electric

The Elite Vestibule Exception (EVE) merges aesthetics and performance into a fashionable, low-profile air curtain designed for front-entry applications. As its name implies, the EVE can be used as an exception to costly, space-consuming vestibules. Available in a highly reflective stainless steel, a brushed stainless steel, white powder coat or black powder coat, the EVE blends into a building’s architectural design and layout. The unit has met all criteria per various vestibule codes. It has also been tested in accordance with the ANSI/AMCA 220 standard. The electrically heated unit is ideal for locations with colder winter months. A heated barrier prevents the infiltration of cold air when a door is open. The EVE-E has a stylish intake accompanied with rounded edges to create a curved, contemporary silhouette.


Unit Sizing

Unit Width:
3'-10'
Motor:
1/5 HP
Mount Type:
Exposed
Max Install Height:
12'
Wind Stoppage Ability:
= 15.0mph

Key Design Features

  • Meets ASHRAE 90.1 and IECC requirements for vestibule exception
  • AMCA tested performance
  • Low-profile outer cabinet available in brushed stainless steel, matte black, or gloss white
  • 1/5 HP ODP (Open Drip Proof) direct-drive variable-speed motor(s)
  • Adjustable air foil vane (+/-20˚)
  • Factory mounted single-stage electric heaters
  • Single point power connection available (see electrical table)
  • Alternate heater kW available (consult factory)

Air Curtain Controls

  • Activation by 24V magnetic door switch
  • SmartTouch controller
  • Filter (washable)

360 View

360 View | EVE-E - Elite Vestibule Exception (EVE) Electric Heated Air Curtain

Cost Savings Calculator

This tool will help you understand the cost savings you could expect based on the air curtain you select and your input on how and where it will be used.

Calculate Now

Air Curtain Selector

This tool is designed to help you find the best air curtain
for your situation by asking a few basic questions.

Begin
EVE-E Air Curtain | Performance Table
Electric Heat
MODEL Nozzle Width (in.) Max. FPM at Nozzle Avg. Outlet Velocity FPM Airflow Rate (CFM) Outlet Velocity Uniformity Power Rating (kW) Number of Motors Motor HP Heater kW Temp. Rise (˚F) Weight (lbs)
EVE-1-30E 29 3050 1243 746 66% 0.2 1 1/5 8 34 47
EVE-1-36E 35 3262 1316 961 87% 0.27 1 1/5 8 27 59
EVE-1-42E 41 3269 1294 1100 75% 0.29 1 1/5 8 23 69
EVE-1-48E 48 3256 1386 1344 85% 0.33 1 1/5 16 38 77
EVE-1-60E 59 3218 1406 1715 83% 0.54 1 1/5 16 30 91
EVE-2-72E 71 3262 1316 1922 87% 0.54 2 1/5 16 27 102
EVE-2-84E 83 3269 1294 2200 75% 0.58 2 1/5 24 35 115
EVE-2-96E 95 3256 1386 2688 85% 0.66 2 1/5 32 38 123
EVE-2-108E 107 3242 1397 3059 83% 0.87 2 1/5 32 33 139
EVE-2-120E 117 3218 1406 3430 83% 1.08 2 1/5 32 30 152

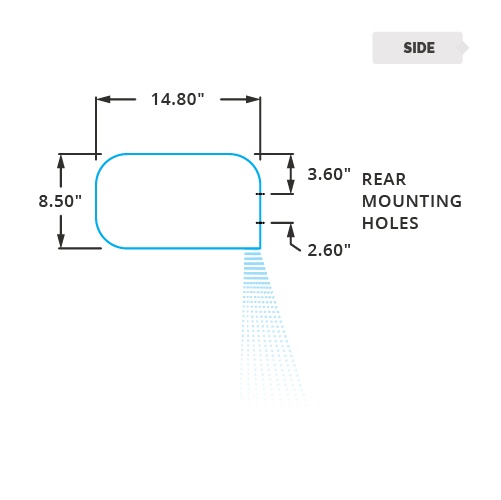

EVE-E Air Curtain | Mechanical Information Table
MODEL Overall Width (in.) Mounting Width (in.) Nozzle Width (in.)
EVE-1-30E 31 30 29
EVE-1-36E 37 36 35
EVE-1-42E 43 42 41
EVE-1-48E 49 48 47
EVE-1-60E 61 60 59
EVE-2-72E 73 72 71
EVE-2-84E 85 84 83
EVE-2-96E 97 96 95
EVE-2-108E 109 108 107
EVE-2-120E 119 118 117
