PTW
Air Curtain

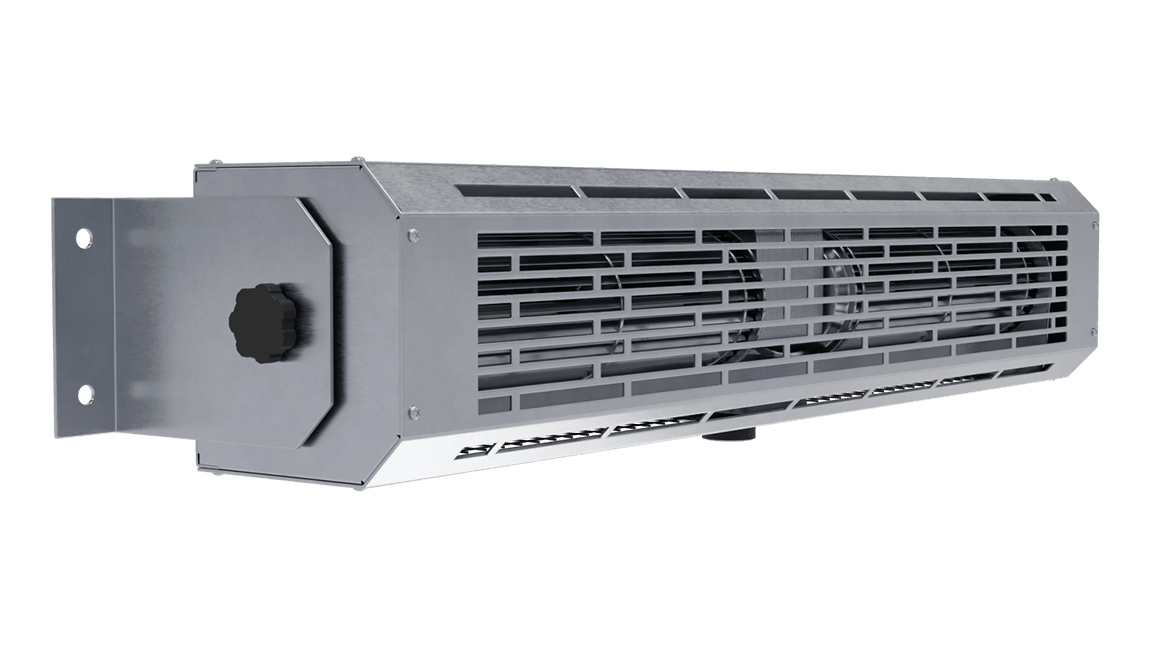

Pass Thru Window Unheated Air Curtain

Unheated

The PTW is specifically designed to stop outside air and vehicle fumes from infiltrating a drive-thru window.


Unit Sizing

Unit Width:
26.5"
Motor:
107w HP
Mount Type:
Exposed
Max Install Height:
3' 6"
Wind Stoppage Ability:
= 4.9mph

Key Design Features

  • 20 gauge 304 stainless steel outer case with a number three finish.
  • 107 watt motor.
  • 120 volt power cord plugs into standard receptacle.
  • Swivel mounting brackets allow for rear or top mounting and also allow for adjustment of the discharge angle.
  • Easy installation

Air Curtain Controls

  • Unit mounted variable speed dial.

360 View

360 View | PTW - Pass Thru Window Unheated Air Curtain

Cost Savings Calculator

This tool will help you understand the cost savings you could expect based on the air curtain you select and your input on how and where it will be used.

Calculate Now

Air Curtain Selector

This tool is designed to help you find the best air curtain
for your situation by asking a few basic questions.

Begin
PTW Air Curtain | Performance Table
MODELAvg. Velocity at Nozzle
on highest speed (FPM)
Air Flow Rate at Nozzle
on highest speed (CFM)
Motor Power
(Watts)
Amp DrawWeight
(lbs.)
Sound Level
PTW-2416533631071.71350 dba*
*Measured 10' away from unit in a free field on highest speed

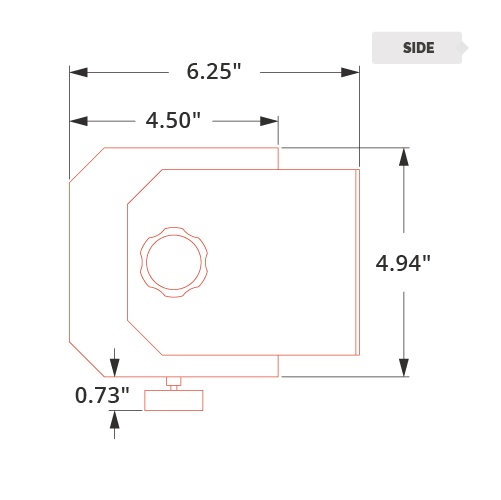

PTW Air Curtain | Mechanical Information Table
MODEL Overall Width Unit Width Mounting Width Unit Height
PTW-24 29.26 26.5 28.26 4.94
