Extra High Door (EHD) Unheated Air Curtain

The Extra High Door (EHD) is used in industrial settings at large door openings. EHD units are manufactured in single increments that can be provided up to 30 ft. wide. The EHD has top and bottom access panels to replace or service motors or blowers without lowering entire unit or bottom half of unit. All industrial units are direct drive, which avoids misalignment of couplers and outboard bearings and eliminates periodic belt replacement. The motor/blower plate comes out as an entire piece and all parts on the outside of the unit are constructed of stainless steel. Ideal for industrial settings, the EHD air curtain helps maintain more consistent indoor temperatures while preventing the entrance of outside air, flying insects, dust, and exhaust.

Get Unit Specs

EHD - Extra High Door (EHD) Unheated Air Curtain

Unit Sizing

Unit Width:

4' to 20'

Motor:

5 HP

Mount Type:

Exposed

Max Install Height:

22'

Wind Stoppage Ability:

= 21.3mph

Thumbnail View 1 | EHD - Extra High Door (EHD) Unheated Air Curtain

Thumbnail View 2 | EHD - Extra High Door (EHD) Unheated Air Curtain

Thumbnail View 3 | EHD - Extra High Door (EHD) Unheated Air Curtain

Thumbnail View 4 | EHD - Extra High Door (EHD) Unheated Air Curtain

Key Design Features

Outer cabinet constructed of 18-gauge 304 stainless steel with #3 finish
5 HP TEAO (Totally Enclosed Air Over) direct-drive single-speed motor(s)
High-efficiency discharge plenum with adjustable air foil vane (+/-20˚)
Top and bottom access panels for servicing and removal of motor-blower assembly
NEMA 12 control panel with factory installed magnetic motor starter, overload relays, and control transformer

Air Curtain Controls

Activation by 24V magnetic door switch
Toggle disconnect switch
Hand/Off/Auto selector switch

360 View

Cost Savings Calculator

This tool will help you understand the cost savings you could expect based on the air curtain you select and your input on how and where it will be used.

Calculate Now

Air Curtain Selector

This tool is designed to help you find the best air curtain
for your situation by asking a few basic questions.

Begin

EHD Air Curtain Downloads

Download All

Individual Files

EHD Air Curtain \| Performance Table
MODEL	Door Width (ft.)	Nozzle Width (in.)	Max.FPM at Nozzle	Max. CFM at Nozzle	Avg. FPM at Nozzle	CFM at Nozzle	Outlet Velocity Uniformity	Number of Motors	Motor HP	Weight (lbs.)
EHD-1-48	4	48	6572	6994	5499	6305	95%	1	5	387
EHD-1-60	5	60	6572	9924	4358	7480	94%	1	5	420
EHD-1-72	6	72	6572	12854	5128	9256	94%	1	5	440
EHD-2-96	8	96	6572	15926	4842	12977	95%	2	5	748
EHD-2-108	9	108	6572	17888	4600	13769	94%	2	5	781
EHD-2-120	10	120	6572	19848	4358	15750	94%	2	5	814
EHD-2-132	11	132	6572	21291	4842	16120	95%	2	5	834
EHD-2-144	12	144	6572	23891	4842	19168	95%	2	5	854
EHD-3-156	13	156	6572	25850	4681	20257	94%	3	5	1145
EHD-3-168	14	168	6572	27812	4520	22825	94%	3	5	1180
EHD-3-180	15	180	6572	29772	4358	23004	94%	3	5	1210
EHD-3-192	16	192	6572	30355	4842	23335	95%	3	5	1227
EHD-3-204	17	204	6572	31114	4358	23400	94%	3	5	1248
EHD-3-216	18	216	6572	31850	4600	24570	95%	3	5	1268
EHD-4-228	19	228	6572	37736	4842	28329	94%	4	5	1615
EHD-4-240	20	240	6572	39696	4358	29120	95%	4	5	1645

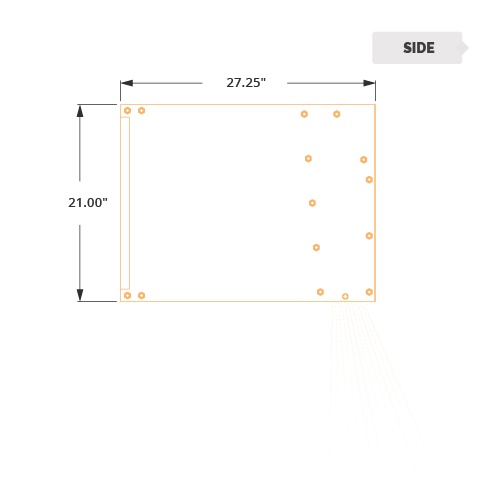

EHD Air Curtain \| Mechanical Information Table
MODEL	Overall Width (in.)	Nozzle Width (in.)	Mounting Width Rear (in.)	Mounting Width Top (in.)
EHD-1-48	51	48	49.5	47
EHD-1-60	63	60	61.5	59
EHD-1-72	75	72	73.5	71
EHD-2-96	99.12	96.12	97.62	95.12
EHD-2-108	111.12	108.12	109.62	107.12
EHD-2-120	123.12	120.12	121.62	119.12
EHD-2-132	135.12	132.12	133.62	131.12
EHD-2-144	147.12	144.12	145.62	143.12
EHD-3-156	159.24	156.24	157.74	155.24
EHD-3-168	171.24	168.24	169.74	167.24
EHD-3-180	183.24	180.24	181.74	179.24
EHD-3-192	195.24	192.24	193.74	191.24
EHD-3-204	207.24	204.24	205.74	203.24
EHD-3-216	219.24	216.24	217.74	215.24
EHD-4-228	231.36	228.36	229.86	227.36
EHD-4-240	243.36	240.36	241.86	239.36
