LDX
Air Curtain

Light-Duty Hazardous Area (LDX) Unheated Air Curtain

Unheated

Providing energy savings and environmental separation for dewatering, pharmaceutical, and hazardous warehouse facilities. The LDX is manufactured for Class I Division I Group C & D and Class II Group F & G hazardous areas.


Unit Sizing

Unit Width:
3' to 12'
Motor:
3/4 HP
Mount Type:
Exposed
Max Install Height:
12'
Wind Stoppage Ability:
= 17.3mph

Key Design Features

  • Case is 18 gauge 304 stainless steel in a number three finish.
  • Motors are 3/4 HP explosion proof suitable for Class I Group D and Class II F&G. 1630 rpm each
  • Aluminum fans. Tangential type blowers and coupling connection shall not be permitted in order to prevent sparks.
  • All internal wiring is encased in hard pipe and ran to an explosion proof junction box.
  • Air intake screen is perforated 304 stainless steel with mill grain finish.
  • High efficiency discharge plenum with directional air foil vane factory set to facilitate deflection of air stream +/- 20 ̊.
  • Hazardous area door switch for activation.

360 View

360 View | LDX - Light-Duty Hazardous Area (LDX) Unheated Air Curtain

Cost Savings Calculator

This tool will help you understand the cost savings you could expect based on the air curtain you select and your input on how and where it will be used.

Calculate Now

Air Curtain Selector

This tool is designed to help you find the best air curtain
for your situation by asking a few basic questions.

Begin
LDX Air Curtain | Performance Table
MODELNozzle
Width (in.)
Max. FPM
at Nozzle
Max. CFM
at Nozzle
Outlet Velocity
Uniformity
Number of
Motors
Motor
HP
Weight
(lbs.)
LDX-1-36364218289995%13/498
LDX-1-42424218338493%13/4106
LDX-1-48484218386792%13/4115
LDX-1-60604218437491%13/4125
LDX-2-72724218580395%23/4185
LDX-2-84844218676693%23/4205
LDX-2-96964218773292%23/4223
LDX-3-1081084218870295%33/4271
LDX-3-1201184218966894%33/4302
LDX-3-13213342181085395%33/4318
LDX-4-14414542181160695%43/4370

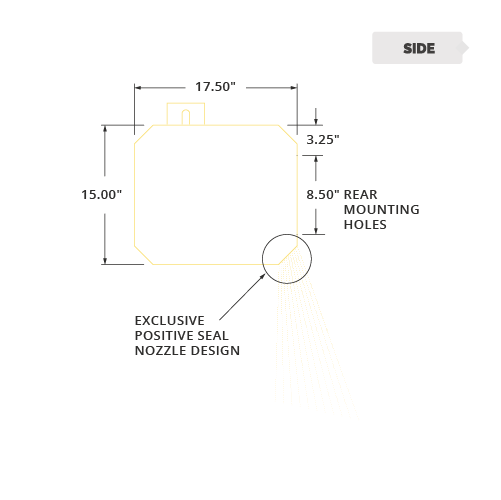

LDX Air Curtain | Mechanical Information Table
MODELOverall Width
(in.)
Nozzle Width
(in.)
Mounting Width
Top and Rear
(in.)
LDX-1-36373636.0625
LDX-1-42434242.0625
LDX-1-48494848.0625
LDX-1-60616060.0625
LDX-2-72737272.0625
LDX-2-84858484.0625
LDX-2-96979696.0625
LDX-3-108109108108.0625
LDX-3-120119118118.0625
LDX-3-132134133133.0625
LDX-4-144146145145.0625
