MP
Air Curtain

Mini-Power (MP) Vestibule Exception Unheated Air Curtain

Unheated

The Mini-Power’s (MP) compact low-profile design is ideal for entrances where space is limited. The MP air curtain from Powered Aire has met all criteria to be used as an exception to vestibules as well as being tested in accordance with the ANSI/AMCA 220 standard. The MP model is often seen in toll booths (for fume control), zoos/amusements parks, food trucks, cannabis grow houses, restaurants (to separate smoking and nonsmoking sections) and offices.


Unit Sizing

Unit Width:
30" to 10'
Motor:
1/5 HP
Mount Type:
Exposed
Max Install Height:
10'
Wind Stoppage Ability:
= 15.0mph

Key Design Features

  • 18 gauge 304 stainless steel in a number three finish
  • Heavy duty 1/5 HP motors. 1625 rpm each
  • Air intake screen is perforated stainless steel with mill grain finish
  • The motor/blower plate comes out of the unit as an entire piece and the electrical connections can be made on the top or sides of the unit for more versatility
  • Can be used as an exception to vestibules

Air Curtain Controls

  • ON/OFF Switch
  • Magnetic Door Switch for activation
  • Built-in Time Delay Relay

360 View

360 View | MP - Mini-Power (MP) Vestibule Exception Unheated Air Curtain

Cost Savings Calculator

This tool will help you understand the cost savings you could expect based on the air curtain you select and your input on how and where it will be used.

Calculate Now

Air Curtain Selector

This tool is designed to help you find the best air curtain
for your situation by asking a few basic questions.

Begin
MP Air Curtain | Performance Table
MODEL Nozzle Width (in.) Max. FPM at Nozzle Avg. Outlet Velocity (FPM) Airflow Rate (CFM) Outlet Velocity Uniformity Power Rating (kW) Number of Motors Motor HP Weight (lbs)
MP-1-30 29 3050 1335 801 66% 0.22 1 1/5 42
MP-1-36 35 3262 1348 984 84% 0.28 1 1/5 53
MP-1-42 41 3269 1462 1243 84% 0.33 1 1/5 60
MP-1-48 48 3256 1520 1474 85% 0.38 1 1/5 67
MP-1-60 59 3218 1529 1865 84% 0.46 1 1/5 85
MP-2-72 71 3262 1348 1968 84% 0.56 2 1/5 94
MP-2-84 83 3269 1462 2486 84% 0.66 2 1/5 105
MP-2-96 95 3256 1520 2948 85% 0.76 2 1/5 114
MP-2-108 107 3242 1525 3339 84% 0.84 2 1/5 130
MP-2-120 117 3218 1529 3730 84% 0.92 2 1/5 141

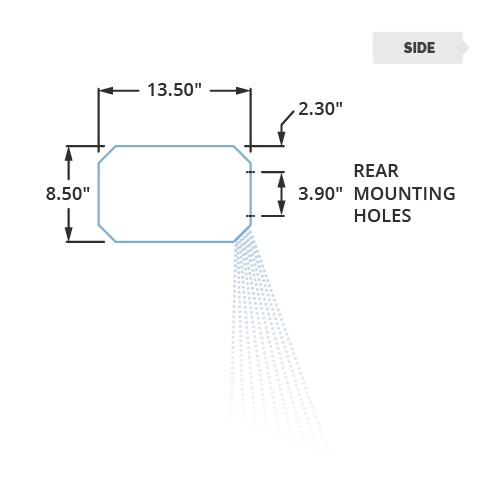

MP Air Curtain | Mechanical Information Table
MODELOverall Width
(in.)
Mounting Width
(in.)
Nozzle Width
(in.)
MP-1-30313029
MP-1-36373635
MP-1-42434241
MP-1-48494847
MP-1-60616059
MP-2-72737271
MP-2-84858483
MP-2-96979695
MP-2-108109108107
MP-2-120119118117
