RMP
Air Curtain

Restaurant Mini-Power (RMP) Low Profile Unheated Air Curtain

The RMP is a low-profile, single-speed air curtain designed for insect control. Its durable stainless steel case combined with a compact design makes it ideal for restaurant and concession stand use where mounting space above the door, window, or opening is limited.

Get Unit Specs

Unit Sizing

Unit Widths:

from 3' - 10'

Motors:

1/5 HP

Mount Type:

Exposed

Max Install Height:

10'

Wind Stoppage Ability:

= 15.0mph

Key Design Features

304 stainless steel case
1/5 HP motors.
Air intake screen is perforated stainless steel with mill grain finish.
Directional air foil vane factory set to facilitate deflection of air stream +/- 20 degrees.
USDA compliant, FDA compliant.
ETL Listed; ETL Sanitation certified to NSF Standard 37

Recommended Air Curtain Controls

Magnetic door switch for activation.
Built-in time delay relay.

360 View

Cost Savings Calculator

This tool will help you understand the cost savings you could expect based on the air curtain you select and your input on how and where it will be used.

Calculate Now

Air Curtain Selector

This tool is designed to help you find the best air curtain
for your situation by asking a few basic questions.

Begin

RMP Air Curtain Downloads

Download All

Individual Files

RMP Air Curtain \| Performance Table
MODEL	Nozzle Width (in.)	Max. FPM at Nozzle	Avg. FPM	CFM at Nozzle	Outlet Velocity Uniformity	Number of Motors	Motor HP	Weight (lbs.)
RMP-1-30	29	3050	2045	897	92%	1	1/5	42
RMP-1-36	35	3050	2142	1178	95%	1	1/5	53
RMP-1-42	41	3050	2086	1339	95%	1	1/5	60
RMP-1-48	47	3050	2045	1500	92%	1	1/5	67
RMP-1-60	59	3050	1928	1767	92%	1	1/5	85
RMP-2-72	71	3050	2142	2356	95%	2	1/5	94
RMP-2-84	83	3050	2087	2678	95%	2	1/5	105
RMP-2-96	95	3050	2045	3005	95%	2	1/5	114
RMP-2-108	107	3050	2142	3534	95%	2	1/5	130
RMP-2-120	117	3050	2103	3856	95%	2	1/5	141

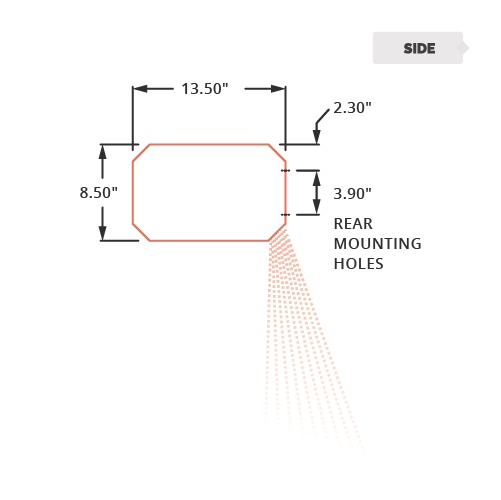

RMP Air Curtain \| Mechanical Information Table
MODEL	Overall Width (in.)	Mounting Width (in.)	Nozzle Width (in.)
RMP-1-30	31	30	29
RMP-1-36	37	36	35
RMP-1-42	43	42	41
RMP-1-48	49	48	47
RMP-1-60	61	60	59
RMP-2-72	73	72	71
RMP-2-84	85	84	83
RMP-2-96	97	96	95
RMP-2-108	109	108	107
RMP-2-120	119	118	117
