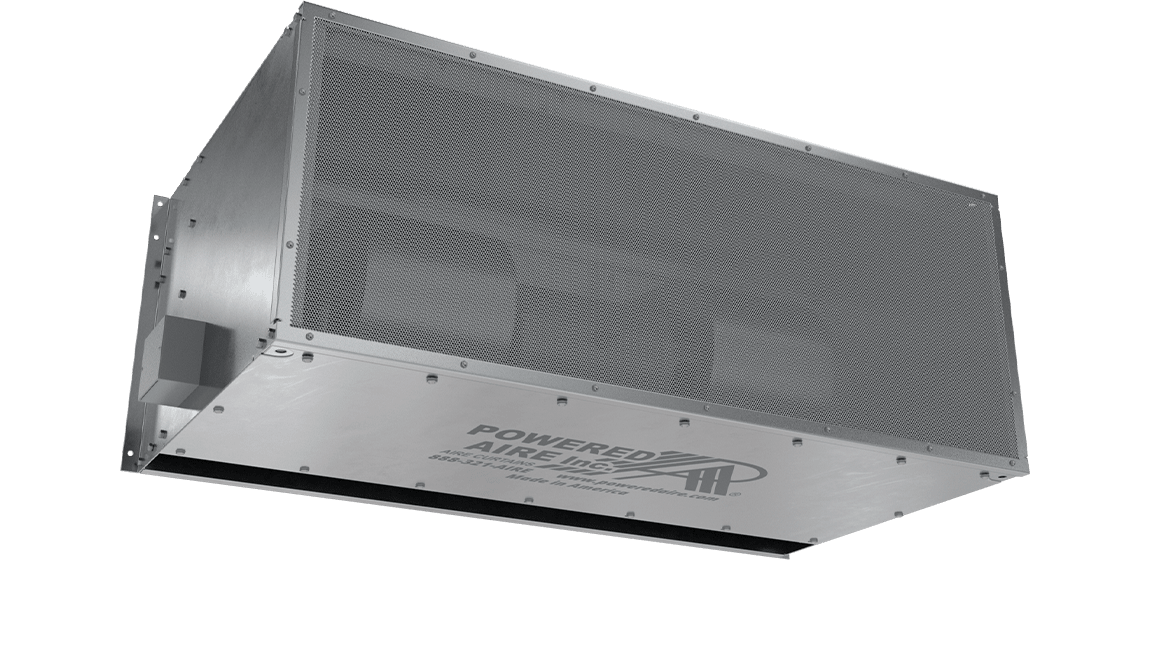

Xtreme Powered Aire (XPA) Unheated Air Curtain

Unheated

For gigantic size doors, the Xtreme Powered Aire (XPA) air curtain delivers unprecedented environmental separation for openings up to 50 feet high.


Unit Sizing

Unit Width:
6' to 30'
Motor:
20 HP
Mount Type:
Exposed
Max Install Height:
50'
Wind Stoppage Ability:
= 24.8mph

Key Design Features

  • All weight bearing structural support is made of formed 11-gauge stainless steel and galvanized steel. Outer casing is constructed of 16-gauge stainless steel.
  • Heavy duty 20 HP Total Enclosed Aire Over (TEAO) motors at 1175 rpm each, 50/60 Hz cycle. Single speed.
  • Galvanized fans.
  • Access panels for inspection, cleaning or removal of motor blower assembly, without having to lower the unit.
  • High efficiency discharge plenum with directional air foil vane factory set to facilitate deflection of air stream +/- 20˚.
  • Includes NEMA 12 control panel with magnetic motor starter, overload relays and control transformer.
  • Motors are controlled by softstarters.

Air Curtain Controls

  • Panel mounted HAND / OFF / AUTO switch
  • Magnetic door switch for activation

360 View

360 View | XPA - Xtreme Powered Aire (XPA) Unheated Air Curtain

Cost Savings Calculator

This tool will help you understand the cost savings you could expect based on the air curtain you select and your input on how and where it will be used.

Calculate Now

Air Curtain Selector

This tool is designed to help you find the best air curtain
for your situation by asking a few basic questions.

Begin
XPA Air Curtain | Performance Table
MODELDoor
Width (ft.)
Nozzle
Width (in.)
Max. FPM
at Nozzle
Max. CFM
at Nozzle
Avg. FPM
at Nozzle
CFM at
Nozzle
Outlet Velocity
Uniformity
Number of
Motors
Motor HP
(per motor)
Weight
(lbs.)
XPA-1-72672106602899454482180093%120895
XPA-1-84784106603193251642409991%120996
XPA-1-96896106603536550032659089%1201098
XPA-2-14412144106605798854484360093%2201790
XPA-2-15613156106606092652954589992%2201891
XPA-2-16814168106606386451644819891%2201992
XPA-2-18015180106606729750785068990%2202094
XPA-2-19216192106607073050035318089%2202196
XPA-3-21618216106608698954486540093%3202685
XPA-3-22819228106608992053436769992%3202786
XPA-3-24020240106609285852496999891%3202887
XPA-3-25221252106609579651647229791%3202988
XPA-3-26422264106609922951057478890%3203090
XPA-3-276232761066010266250527727990%3203192
XPA-3-288242881066010609550037977089%3203294
XPA-4-300253001066011891453688949992%4203681
XPA-4-312263121066012185252959179892%4203782
XPA-4-324273241066012479052279409792%4203883
XPA-4-336283361066012772851649639691%4203984
XPA-4-348293481066013116151199888790%4204086
XPA-4-3603036010660134594507810137890%4204188

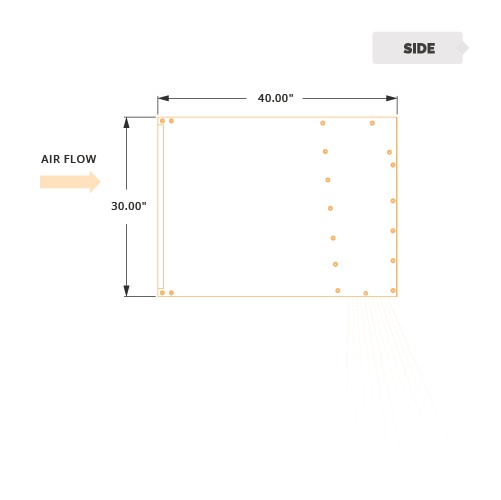

XPA Air Curtain | Mechanical Information Table
MODELOverall
Width (in.)
Nozzle
Width (in.)
Mounting Width
Rear (in.)
Mounting Width
Top (in.)
XPA-1-72757273.571
XPA-1-84878485.583
XPA-1-96999697.595
XPA-2-144147.12144.12145.62143.12
XPA-2-156159.12156.12157.62155.12
XPA-2-168171.12168.12169.62167.12
XPA-2-180183.12180.12181.62179.12
XPA-2-192195.12192.12193.62191.12
XPA-3-216219.24216.24217.74215.24
XPA-3-228231.24228.24229.74227.24
XPA-3-240243.24240.24241.74239.24
XPA-3-252255.24252.24253.74251.24
XPA-3-264267.24264.24265.74263.24
XPA-3-276279.24276.24277.74275.24
XPA-3-288291.24288.24289.74287.24
XPA-4-300303.36300.36301.86299.36
XPA-4-312315.36312.36313.86311.36
XPA-4-324327.36324.36325.86323.36
XPA-4-336339.36336.36337.86335.36
XPA-4-348351.36348.36349.86347.36
XPA-4-360363.36360.36361.86359.36
