RBT
Air Curtain

ETL Sanitation Certified (RBT) Unheated Air Curtain

The RBT is the restaurant industry’s go-to insect control air curtain. The RBT Air Curtain from Powered Aire is an ETL listed air curtain designed to eliminate the infiltration of insects through restaurant doors, whether mounted inside or outside.

The unit is NSF-rated and can be used in a variety of other applications seeking to prevent insects from entering through open doors. The ETL Outdoor listing gives the RBT air curtain the advantage of being able to be used on the outside of the door to help prevent the infiltration of insects, dust and debris.

Get Unit Specs

RBT - ETL Sanitation Certified (RBT) Unheated Air Curtain

Unit Sizing

Unit Widths:

from 3' to 12'

Motors:

3/4 HP

Mount Type:

Exposed

Max Install Height:

Wind Stoppage Ability:

= 17.3mph

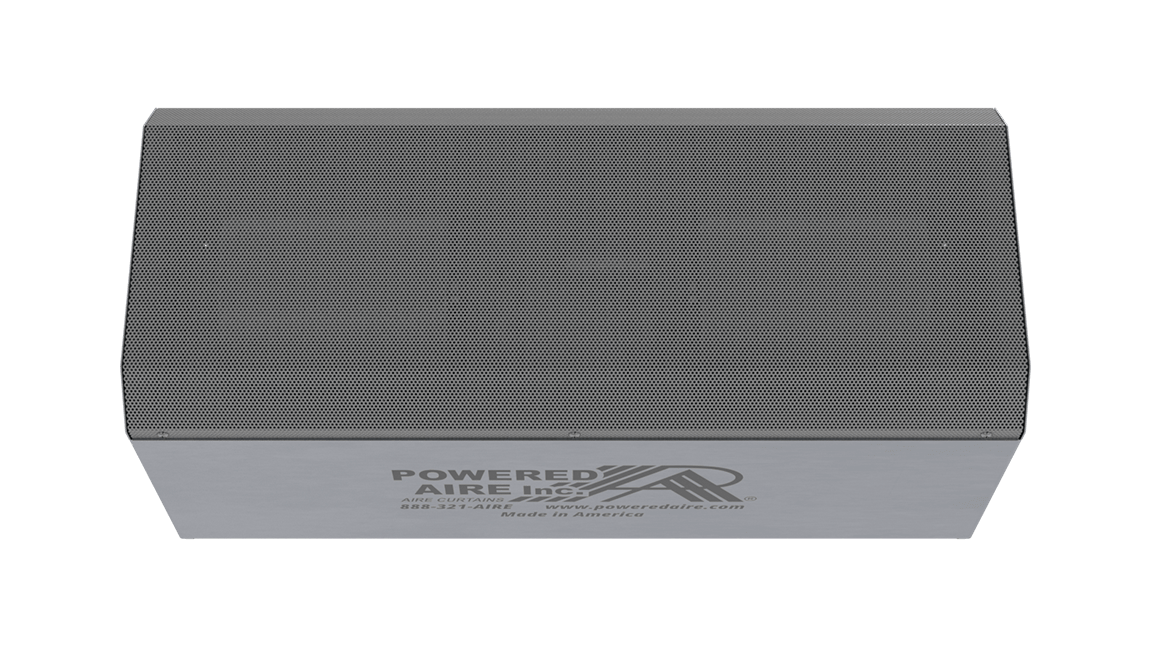

Thumbnail View 1 | RBT - ETL Sanitation Certified (RBT) Unheated Air Curtain

Thumbnail View 2 | RBT - ETL Sanitation Certified (RBT) Unheated Air Curtain

Thumbnail View 3 | RBT - ETL Sanitation Certified (RBT) Unheated Air Curtain

Thumbnail View 4 | RBT - ETL Sanitation Certified (RBT) Unheated Air Curtain

Key Design Features

Stainless steel case is 18 gauge 304 stainless steel in a number three finish.
Totally enclosed heavy duty 3/4 HP motors. 1610 rpm each. Single speed.
Galvanized fans.
Air intake screen is perforated stainless steel with mill grain finish.
High efficiency discharge plenum ensures that air being discharged fills the entire width and height of the opening. This also lowers the unit’s operational sound level.
Directional air foil vane factory set to facilitate deflection of air stream +/- 20 degrees.
USDA, FDA and AIB approved method for insect control.
ETL Listed for outdoor use.

Recommended Air Curtain Controls

Magnetic door switch for activation

360 View

Cost Savings Calculator

This tool will help you understand the cost savings you could expect based on the air curtain you select and your input on how and where it will be used.

Calculate Now

Air Curtain Selector

This tool is designed to help you find the best air curtain
for your situation by asking a few basic questions.

Begin

RBT Air Curtain Downloads

Download All

Individual Files

RBT Air Curtain \| Performance Table
MODEL	Nozzle Width (in.)	Max. FPM at Nozzle	Avg. FPM	Max. CFM	CFM at Nozzle	Outlet Velocity Uniformity	Number of Motors	Motor HP	Weight (lbs.)
RBT-1-36	36	4218	3695	2899	2541	95%	1	3/4	90
RBT-1-42	42	4218	3169	3384	2532	93%	1	3/4	97
RBT-1-48	48	4218	2771	3867	2559	92%	1	3/4	104
RBT-1-60	60	4218	2218	4374	2528	91%	1	3/4	117
RBT-2-60	60	4218	3315	5050	3812	95%	2	3/4	147
RBT-2-72	72	4218	3696	5803	5082	95%	2	3/4	169
RBT-2-84	84	4218	3169	6766	5063	93%	2	3/4	187
RBT-2-96	96	4218	2773	7732	5081	92%	2	3/4	203
RBT-3-108	108	4218	3702	8702	7623	95%	3	3/4	245
RBT-3-120	118	4218	3174	9668	7614	94%	3	3/4	274
RBT-3-132	133	4218	2792	10853	7589	95%	3	3/4	290
RBT-4-144	145	4218	3696	11606	10164	95%	4	3/4	338

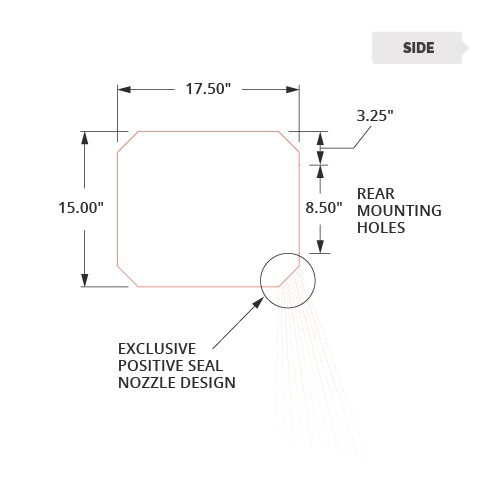

RBT Air Curtain \| Mechanical Information Table
MODEL	Overall Width (in.)	Nozzle Width (in.)	Mounting Width (in.)
RBT-1-36	37	36	36.06
RBT-1-42	43	42	42.06
RBT-1-48	49	48	48.06
RBT-1-60	61	60	60.06
RBT-2-60	61	60	60.06
RBT-2-72	73	72	72.06
RBT-2-84	85	84	84.06
RBT-2-96	97	96	96.06
RBT-3-108	109	108	108.06
RBT-3-120	119	118	118.06
RBT-3-132	134	133	133.06
RBT-4-144	146	145	145.06
