Air Curtains For
Industrial Use

​Few applications benefit more from the installation of air curtains than industrial settings. Air curtains provide significant benefits to warehouses, whether on dock doors, service doors, office doors or a variety of other locations. Within industrial applications, air curtains effectively separate temperatures, block insects, dust and debris, improve safety and streamline workflow.

Go to category

Doors Up To Twelve (12') Feet High

ETD - Eight-Twelve Doors

Insect Control for openings up to 10’ high.
Climate control for openings up to 12’ high.

    Select model to view details
  • ETD
  • View Installed
ETD

The ETD is a versatile air curtain designed for climate control and environmental separation in commercial and industrial applications. The ETD is housed in stainless steel and offers a variety of heating options to ensure the right fit for your application.

  • Exposed mount
  • For doors 12 ft. high
  • Widths from 3 ft. to 12 ft.
  • Heat types: Unheated Electric

Doors Up To Twelve (14') Feet High

TFD - Ten-Fourteen Doors

Insect Control for openings up to 12’ high.
Climate control for openings up to 14’ high.

    Select model to view details
  • TFD
  • View Installed

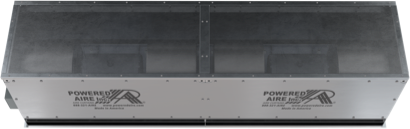

TFD

The TFD is a go-to air curtain for industrial doors up to 14 feet wide. The TFD allows for both top and bottom access so that adjustments can be made without lowering the unit. The unit is powerful enough to cover the entire door, blocking insects, dust, debris and outside air from entering.

Doors Up To Seventeen (17') Feet High

TSD – Twelve-Seventeen Doors

Insect Control for openings up to 16’ high.
Climate control for openings up to 17’ high.

    Select model to view details
  • TSD
  • View Installed

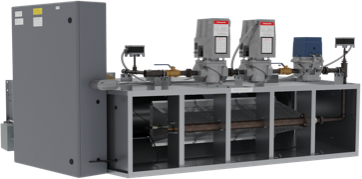

TSD

The TSD is an industrial air curtain designed for use on large dock doors, ground-level doors and other industrial openings requiring a heavy-duty air curtain capable of separating environments and blocking keeping dust, debris and fumes from entering.

Doors Up To Twenty-Two (22') Feet High

EHD – Extra High Door

Insect Control for openings up to 20’ high.
Climate control for openings up to 22’ high.

    Select model to view details
  • EHD
  • View Installed

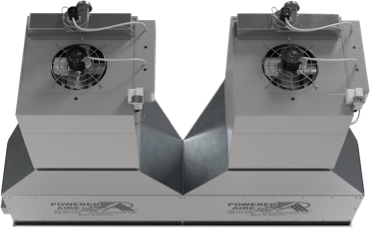

EHD

​The aptly named EHD Air curtain was designed for “Extra High Doors” in industrial settings. This powerful air curtain can be paired to protect openings up to 30-feet-wide. The durable, stainless steel unit has access points on the top and bottom so that adjustments can be made without lowering the unit. The EHD separates environments, blocks dust, debris and humidity and ensures an unobstructed, streamlined workflow through large industrial openings.

Doors Up To Thirty (30') Feet High

BPA – Big Powered Aire

Insect and environmental/climate control on doors up to 30’ high.

    Select model to view details
  • BPA
  • View Installed
BPA

The Big Powered Aire (BPA) is an industrial air curtain designed for large industrial openings up to 30 feet high. This heavy-duty air curtain is commonly used on train-bay doors, bus facilities, mines, aircraft hangars and other large openings up to 30’. The BPA was intuitively designed with access panels located in areas that allow for easy maintenance without removing the entire air curtain.

  • All weight bearing structural support is made of formed 11-gauge stainless steel and galvanized steel. Outer casing is constructed of 16-gauge stainless steel.
  • Heavy duty 7.5 HP Total Enclosed Aire Over (TEAO) motors at 1160 rpm each, 50/60 Hz cycle. Single speed.
  • Galvanized fans.
  • Access panels for inspection, cleaning or removal of motor blower assembly, without having to lower the unit.
  • Heat types: Unheated

Doors Up To Fifty (50') Feet High

XPA – Extreme Powered Aire

Insect and environmental/climate control on doors up to 50’ high.

    Select model to view details
  • XPA

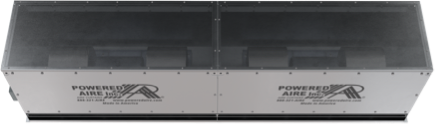

XPA

The Extreme Powered Aire (XPA) is the largest industrial air curtain in Powered AIre’s lineup. This heavy duty air curtain is capable of separating temperatures and blocking insects on industrial and warehouse doors up to 50 feet high!

  • All weight bearing structural support is made of formed 11-gauge stainless steel and galvanized steel. Outer casing is constructed of 16-gauge stainless steel.
  • Heavy duty 20 HP Total Enclosed Aire Over (TEAO) motors at 1175 rpm each, 50/60 Hz cycle. Single speed.
  • Galvanized fans.
  • Access panels for inspection, cleaning or removal of motor blower assembly, without having to lower the unit.
  • Heat types: Unheated

Benefits of Air Curtains on Industrial Doors

Maintain Workflow at Key Access/Entry Points

Air Curtains complement dock doors by enabling the doors to remain open during deliveries, loading and unloading cycles—without sacrificing temperature, safety or comfort. When dock doors are open, air curtains effectively block fumes, exhaust and unconditioned air from entering the building. Air curtains also give workers unimpeded access so that their workflow can be as efficient as possible.

Block Insects, Dust & Debris

Large warehouse doors, when open, can let in all types of unwanted elements such as insects, fumes, dust and debris. In warehouses where cleanliness is a priority, such as food processing or medical production facilities, a stray insect can instantly ruin a product. Air curtains effectively create a barrier that blocks these pesky intruders when the door is open. Food service and food processing warehouses are especially susceptible to insect infiltration and Powered Aire air curtains create an effective barrier that helps maintains sanitation standards and separate indoor/outdoor environments.

Control Temperatures & Maximize Employee Comfort

Opening a large industrial door in the dead of winter can send chills through the entire warehouse. In busy warehouses with multiple doors open, the cross drafts can quickly become unbearable. Placing air curtains above these doors is an effective solution that will help maintain a more comfortable interior while preventing the infiltration of outside air. Air curtains are equally effective in the summer months and help block heat and humidity from entering a warehouse.

Improve Employee Comfort

Few things can be worse than an unbearably cold or hot workspace. For those working around open dock doors, the extreme temperatures can be even more unbearable during the dead of winter or height of summer. Maintaining a more temperate climate within your warehouse will keep workers more comfortable while on the job.

Improve Safety

In a busy warehouse where forklifts and people are constantly on the move, safety is paramount—especially around doors. Closed doors and PVC strips may help separate environments but they inhibit workflow and decrease visibility through a door. Air curtains allow for complete visibility and access through a doorway, while separating temperatures, fumes and other unwanted elements.
