CAC
Air Curtain

Cooler Aire Curtain

The two-speed Cooler Aire Curtain™ is used to reduce moisture buildup on doors and floors in a cold storage environment. When used with a hard panel door, the Cooler Aire Curtain™ may be supplied with a timer to keep the air curtain running for a set period of time after the door closes. When used with a high speed fabric door, the Cooler Aire Curtain™ may be supplied with an Aire Controller™ to cycle the operation of the air curtain on and off during times when the door is not in use to keep the door panel dry.

Get Unit Specs

Unit Sizing

Unit Widths:

from 3' to 12'

Motors:

3/4 HP

Mount Type:

Exposed

Max Install Height:

14'

Wind Stoppage Ability:

= 17.3mph

Thumbnail View 1 | CAC - Cooler Aire Curtain

Thumbnail View 2 | CAC - Cooler Aire Curtain

Thumbnail View 3 | CAC - Cooler Aire Curtain

Thumbnail View 4 | CAC - Cooler Aire Curtain

Key Design Features

Stainless steel case is 18 gauge 304 stainless steel in a number three finish.
Heavy duty 3/4 HP motors. 1630 rpm each. Dual speed.
Galvanized fans.
Air intake screen is perforated stainless steel with mill grain finish.
High efficiency discharge plenum with directional air foil vane factory set to facilitate deflection of air stream +/- 20˚.
More than a timer, it’s an – Aire Controller™. The Aire Controller™ provides strategically timed fan functions for around-the-clock protection from moisture, frost and ice buildup on hard panel and high-speed fabric freezer doors. Offers preset and adjustable functions.

Recommended Air Curtain Controls

Magnetic door switch for activation
Dry contacts to interlock with door controller

360 View

Cost Savings Calculator

This tool will help you understand the cost savings you could expect based on the air curtain you select and your input on how and where it will be used.

Calculate Now

Air Curtain Selector

This tool is designed to help you find the best air curtain
for your situation by asking a few basic questions.

Begin

CAC Air Curtain Downloads

Download All

Individual Files

CAC Air Curtain \| Performance Table
MODEL	Nozzle Width (in.)	Max. FPM at Nozzle	Avg. FPM	Max. CFM	CFM at Nozzle	Outlet Velocity Uniformity	Number of Motors	Motor HP	Weight (lbs.)
CAC-1-36	36	H 4218 L 2837	H 3695 L 2487	H 2899 L 1950	H 2541 L 1710	95%	1	3/4	90
CAC-1-42	42	H 4218 L 2837	H 3169 L 2133	H 3384 L 2276	H 2532 L 1696	93%	1	3/4	97
CAC-1-48	48	H 4218 L 2837	H 2771 L 1865	H 3867 L 2601	H 2559 L 1721	92%	1	3/4	104
CAC-1-60	60	H 4218 L 2837	H 2218 L 1493	H 4374 L 2792	H 2528 L 1703	91%	1	3/4	117
CAC-2-60	60	H 4218 L 2837	H 3315 L 2231	H 5050 L 3252	H 3812 L 2565	94%	2	3/4	147
CAC-2-72	72	H 4218 L 2837	H 3696 L 2488	H 5803 L 3903	H 5082 L 3420	95%	2	3/4	169
CAC-2-84	84	H 4218 L 2837	H 3169 L 2133	H 6766 L 4551	H 5063 L 3382	93%	2	3/4	187
CAC-2-96	96	H 4218 L 2837	H 2773 L 1866	H 7732 L 5201	H 5081 L 3417	92%	2	3/4	203
CAC-3-108	108	H 4218 L 2837	H 3702 L 2486	H 8702 L 5853	H 7623 L 5130	95%	3	3/4	245
CAC-3-120	118	H 4218 L 2837	H 3174 L 2134	H 9668 L 6503	H 7614 L 5127	94%	3	3/4	274
CAC-3-132	133	H 4218 L 2837	H 2792 L 1885	H 10853 L 7155	H 7589 L 5104	94%	3	3/4	290
CAC-4-144	145	H 4218 L 2837	H 3696 L 2488	H 11606 L 7806	H 10164 L 6840	95%	4	3/4	338

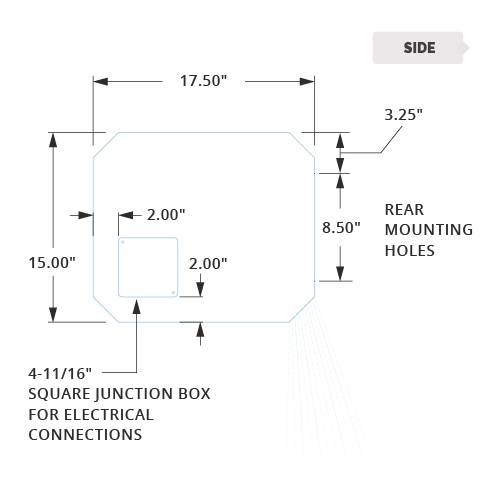

CAC Air Curtain \| Mechanical Information Table
MODEL	Overall Width (in.)	Nozzle Width (in.)	Mounting Width (in.)
CAC-1-36	37	36	36.06
CAC-1-42	43	42	42.06
CAC-1-48	49	48	48.06
CAC-1-60	61	60	60.06
CAC-2-60	61	60	60.06
CAC-2-72	73	72	72.06
CAC-2-84	85	84	84.06
CAC-2-96	97	96	96.06
CAC-3-108	109	108	108.06
CAC-3-120	119	118	118.06
CAC-3-132	134	133	133.06
CAC-4-144	146	145	145.06
