Heavy-Duty Hazardous Area (HDX) Unheated Air Curtains

Unheated

The HDX air curtain provides spark resistant construction for hazardous areas. This model is unheated and is manufactured for Class I Division 1 Group C & D and Class II Group F & G hazardous areas. The Hazardous Area air curtains have been used in dewatering, pharmaceutical, and hazardous warehousing facilities.

At a Glance

Single Incremental Widths

5' to 16'

MAX Installation Height

17'

Heavy Duty Motors

3 HP

Key Design Features

  • Case is 18 gauge 304 stainless steel in a number three finish.
  • Motors are 3 HP explosion proof suitable for Class I Group D and Class II F&G. Total Enclosed Air Over (TEAO) motors 1630 rpm each.
  • Aluminum fans and matched blower housings. To prevent a possible spark form occurring, no outboard bearings or flexible couplings will be acceptable.
  • Access panels for motor and fan assembly so that these can be removed without lowering the unit.
  • All internal wiring is encased in hard pipe and ran to an explosion proof junction box.
  • Air intake screen is perforated 304 stainless steel with mill grain finish.
  • High efficiency discharge plenum with directional air foil vane factory set to facilitate deflection of air stream +/- 20 ĚŠ.

Recommended Controls

360 View

360 View | HDX - Heavy-Duty Hazardous Area (HDX) Unheated Air Curtains

Cost Savings Calculator

This tool will help you understand the cost savings you could expect based on the air curtain you select and your input on how and where it will be used.

Calculate Now

Air Curtain Selector

This tool is designed to help you find the best air curtain
for your situation by asking a few basic questions.

Begin
HDX | Performance Table
MODELNozzle
Width (in.)
Max. FP
at Nozzle
Max. CFM
at Nozzle
Outlet Velocity
Uniformity
Number of
Motors
Motor
HP
Weight
(lbs.)
HDX-1-60605800485592%13396
HDX-1-72725900557986.3%13418
HDX-2-1201205800971092%23785
HDX-2-13213259001043486.3%23805
HDX-2-14414459001115886.3%23826
HDX-3-18018062001498886.3%331152
HDX-3-19219262001571286.3%331173

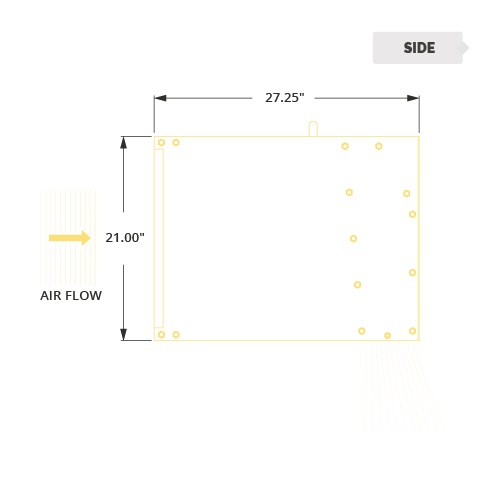

HDX | Mechanical Information Table
MODELOverall Width
(in.)
Nozzle Width
(in.)
Mounting Width
Rear (in.)
Mounting Width
Top (in.)
HDX-1-60636061.559
HDX-1-72757273.571
HDX-2-120123.12120.12121.62119.12
HDX-2-132135.12132.12133.62131.12
HDX-2-144147.12144.12145.62143.12
HDX-3-180183.24180.24181.74179.24
HDX-3-192195.24192.24193.74191.24
