Twelve-Seventeen Door (TSD) Unheated Air Curtains

Unheated

The TSD is typically used over dock doors, ground level doors or large openings in an industrial environment. All industrial units are direct drive, which avoids misalignment of couplers and outboard bearings and eliminates periodic belt replacement. Powered Aire, Inc. certifies model TSD shown herein is licensed to bear the AMCA Seal. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 211 and comply with the requirements of the AMCA Certified Ratings Program. The AMCA Certified Ratings Seal applies to airflow rate, average outlet velocity, outlet velocity uniformity, velocity projection and power rating at free delivery only. (May 2016)

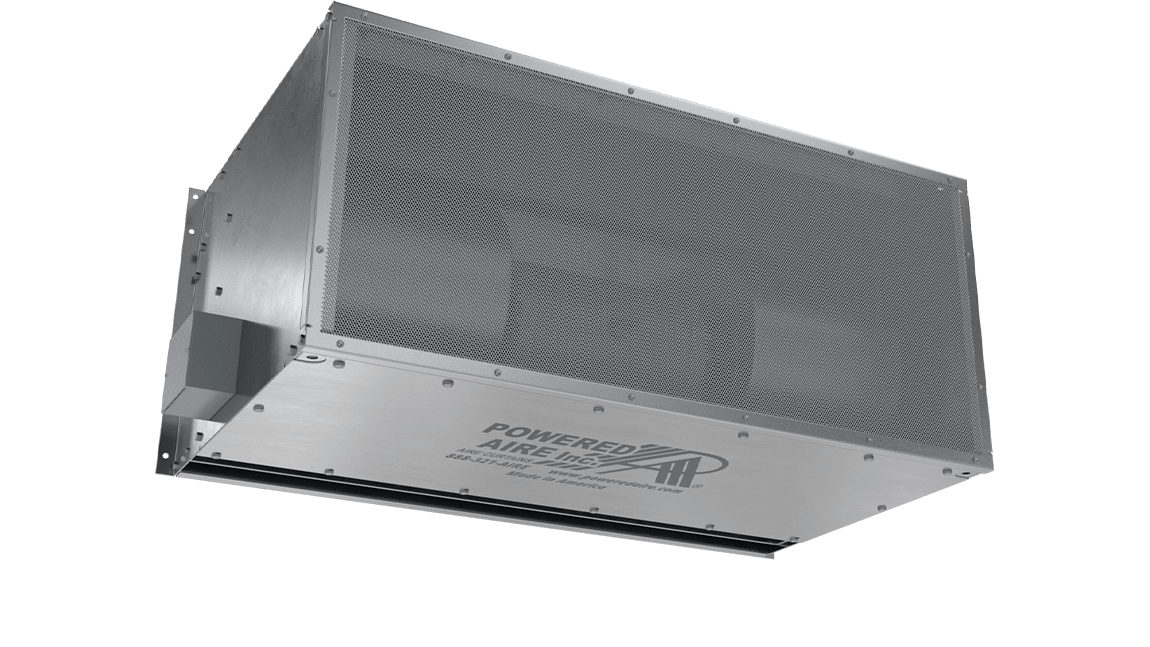

Full Size View 1 | TSD - Twelve-Seventeen Door (TSD) Unheated Air Curtains
Thumbnail View 1 | TSD - Twelve-Seventeen Door (TSD) Unheated Air Curtains Thumbnail View 2 | TSD - Twelve-Seventeen Door (TSD) Unheated Air Curtains Thumbnail View 3 | TSD - Twelve-Seventeen Door (TSD) Unheated Air Curtains Thumbnail View 4 | TSD - Twelve-Seventeen Door (TSD) Unheated Air Curtains

At a Glance

Single Incremental Widths

4' to 30'

MAX Installation Height

17'

Heavy Duty Motors

3 HP

Key Design Features

  • All weight bearing structural support is made of formed 11-gauge stainless steel and galvanized steel. Outer casing is constructed of 16-gauge stainless steel.
  • TSD has heavy duty 3 HP Total Enclosed Aire Over (TEAO) motors at 1160 rpm each, 50/60 cycle. Single speed.
  • Galvanized fans.
  • Air intake screen is perforated stainless steel.
  • Access panels for inspection, cleaning or removal of motor blower assembly, without having to lower the unit.
  • High efficiency discharge plenum with directional air foil vane factory set to facilitate deflection of air stream +/- 20 ĚŠ.
  • Includes NEMA 12 control panel with magnetic motor starter, overload relays and control transformer.

Recommended Controls

  • Panel mounted HAND / OFF / AUTO switch
  • Magnetic Door Switch for activation

360 View

360 View | TSD - Twelve-Seventeen Door (TSD) Unheated Air Curtains

Cost Savings Calculator

This tool will help you understand the cost savings you could expect based on the air curtain you select and your input on how and where it will be used.

Calculate Now

Air Curtain Selector

This tool is designed to help you find the best air curtain
for your situation by asking a few basic questions.

Begin

TSD Downloads

Download All

Individual Files

TSD | Performance Table
MODELDoor
Width (ft.)		Nozzle
Width (in.)		Max. FPM
at Nozzle		Avg. Outlet
Velocity FPM		CFM at
Nozzle		Outlet Velocity
Uniformity		Power
Rating (kW)		Number of
Motors		Motor
HP		Weight
(lbs.)
TSD-1-4844862003443459095.1%2.113342
TSD-1-6056058003006485592%2.113380
TSD-1-7267259002891557986.3%2.513400
TSD-2-9689662003443918095.1%4.223681
TSD-2-108910862003200944592%4.223719
TSD-2-1201012058003006971092%4.223757
TSD-2-13211132590029431043486.3%4.623777
TSD-2-14412144590028911115886.3%523797
TSD-3-14412144620034431377095.1%6.3331020
TSD-3-15613156620032751403592%6.3331058
TSD-3-16814168620032061475986.3%6.7331078
TSD-3-18015180620030771502486.3%6.7331116
TSD-3-19216192620030291574886.3%7.1331136
TSD-4-19216192620034431836095.1%8.4431359
TSD-3-20417204590029251601386.3%7.1331174
TSD-4-20417204620033141862592%8.4431397
TSD-3-21618216590028911673786.3%7.5331194
TSD-4-21618216620032591934986.3%8.8431417
TSD-4-22819228620031541961486.3%8.8431455
TSD-4-24020240620031122033886.3%9.2431475
TSD-5-24020240620034432295095.1%10.5531698
TSD-4-25221252620030242060386.3%9.2431513

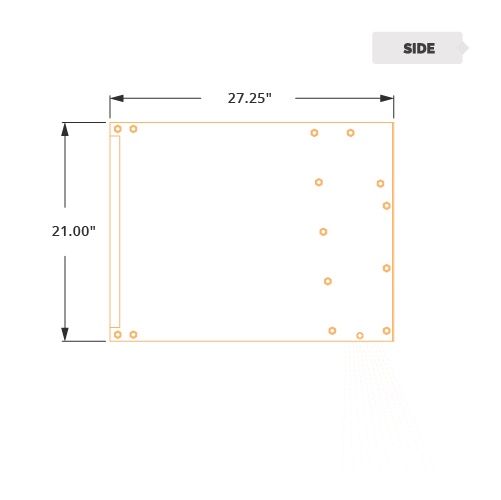

TSD | Mechanical Information Table
MODELOverall Width (in.)Nozzle Width (in.)Mounting Width Rear (in.)Mounting Width Top (in.)MODELOverall Width (in.)Nozzle Width (in.)Mounting Width Rear (in.)Mounting Width Top (in.)
TSD-1-48514849.547TSD-4-264267.36264.36265.86263.36
TSD-1-60636061.559TSD-5-264267.48264.48265.98263.48
TSD-1-72757273.571TSD-4-276279.36276.36277.86275.36
TSD-2-9699.1296.1297.6295.12TSD-5-276279.48276.48277.98275.48
TSD-2-108111.12108.12109.62107.12TSD-4-288291.36288.36289.86287.36
TSD-2-120123.12120.12121.62119.12TSD-5-288291.48288.48289.98287.48
TSD-2-132135.12132.12133.62131.12TSD-6-288291.6288.6290.1287.6
TSD-2-144147.12144.12145.62143.12TSD-5-300303.48300.48301.98299.48
TSD-3-144147.24144.24145.74143.24TSD-6-300303.6300.6302.1299.6
TSD-3-156159.24156.24157.74155.24TSD-5-312315.48312.48313.98311.48
TSD-3-168171.24168.24169.74167.24TSD-6-312315.6312.6314.1311.6
TSD-3-180183.24180.24181.74179.24TSD-5-324327.48324.48325.98323.48
TSD-3-192195.24192.24193.74191.24TSD-6-324327.6324.6326.1323.6
TSD-4-192195.36192.36193.86191.36TSD-5-336339.48336.48337.98335.48
TSD-3-204207.24204.24205.74203.24TSD-6-336339.6336.6338.1335.6
TSD-4-204207.36204.36205.86203.36TSD-7-336339.72336.72338.22335.72
TSD-3-216219.24216.24217.74215.24TSD-5-348351.48348.48349.98347.48
TSD-4-216219.36216.36217.86215.36TSD-6-348351.6348.6350.1347.6
TSD-4-228231.36228.36229.86227.36TSD-7-348351.72348.72350.22347.72
TSD-4-240243.36240.36241.86239.36TSD-5-360363.48360.48361.98359.48
TSD-5-240243.48240.48241.98239.48TSD-6-360363.6360.6362.1359.6
TSD-4-252255.36252.36253.86251.36TSD-7-360363.72360.72362.22359.72
TSD-5-252255.48252.48253.98251.48
