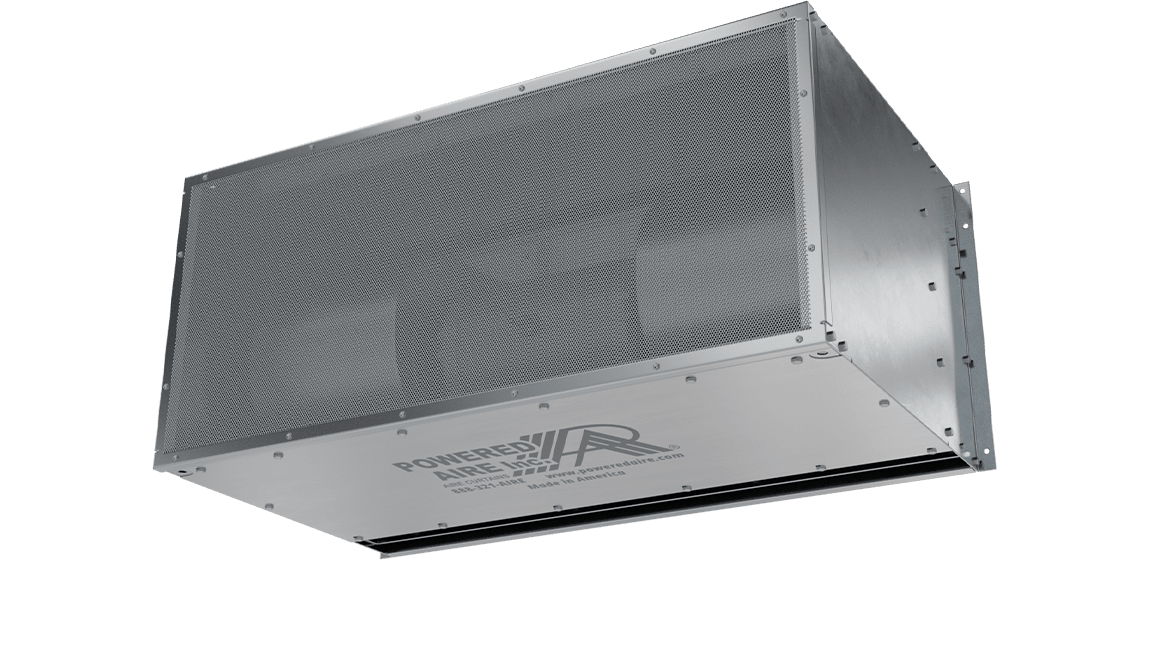

Ten-Fourteen Door (TFD) Unheated Air Curtain

The TFD is typically used over medium sized dock doors, or openings in an industrial environment. The TFD Air Curtain prevents insects, hot/cold air, exhaust and other elements from entering an industrial area, while also heling maintain more consistent indoor temperatures and reducing the load on HVAC systems.

TFD units are manufactured in single increments that can be provided up to 14 ft. wide. The TFD has top and bottom access panels to replace or service motors or blowers without lowering entire unit or bottom half of unit. All industrial units are direct drive, which avoids misalignment of couplers and outboard bearings and eliminates periodic belt replacement. The motor/blower plate comes out as an entire piece and all parts on the outside of the unit are constructed of stainless steel

Get Unit Specs

TFD - Ten-Fourteen Door (TFD) Unheated Air Curtain

Unit Sizing

Unit Width:

4' to 14'

Motor:

1.5 HP

Mount Type:

Exposed

Max Install Height:

14'

Wind Stoppage Ability:

= 18.2mph

Thumbnail View 1 | TFD - Ten-Fourteen Door (TFD) Unheated Air Curtain

Thumbnail View 2 | TFD - Ten-Fourteen Door (TFD) Unheated Air Curtain

Thumbnail View 3 | TFD - Ten-Fourteen Door (TFD) Unheated Air Curtain

Thumbnail View 4 | TFD - Ten-Fourteen Door (TFD) Unheated Air Curtain

Key Design Features

AMCA tested performance
Outer cabinet constructed of 18-gauge 304 stainless steel with #3 finish
1.5 HP TEAO (Totally Enclosed Air Over) direct-drive single-speed motor(s)
High-efficiency discharge plenum with adjustable air foil vane (+/-20˚)
Top and bottom access panels for servicing and removal of motor-blower assembly
NEMA 12 control panel

Air Curtain Controls

Activation by 24V magnetic door switch
Toggle disconnect switch
Hand/Off/Auto selector switch

360 View

Cost Savings Calculator

This tool will help you understand the cost savings you could expect based on the air curtain you select and your input on how and where it will be used.

Calculate Now

Air Curtain Selector

This tool is designed to help you find the best air curtain
for your situation by asking a few basic questions.

Begin

TFD Air Curtain Downloads

Download All

Individual Files

TFD Air Curtain \| Performance Table
MODEL	Nozzle Width (in.)	Max. FPM at Nozzle	Avg. Outlet Velocity FPM	CFM at Nozzle	Outlet Velocity Uniformity	Power Rating (kW)	Number of Motors	Motor HP	Sound Levels (dBA)*	Sound Power [LWA] (dBA)ⱡ	Weight (lbs.)
TFD-1-36	36	4500	3108	2331	92.0%	1.2	1	1.5	73	87	119
TFD-1-48	48	4500	3565	2565	94.0%	1.3	1	1.5	76	90	152
TFD-1-60	60	4500	2146	2682	73.0%	1.3	1	1.5	69	82	188
TFD-2-72	72	4500	3108	4662	92.0%	2.4	2	1.5	76	90	256
TFD-2-84	84	4500	2798	4896	92.0%	2.6	2	1.5	79	93	290
TFD-2-96	96	4500	2565	5130	94.0%	2.6	2	1.5	79	93	316
TFD-2-108	108	4500	2332	5247	73.0%	2.6	2	1.5	79	93	342
TFD-3-108	108	4500	3108	6993	92.0%	3.6	3	1.5	77	92	378
TFD-3-120	120	4500	2891	7227	92.0%	3.7	3	1.5	80	95	420
TFD-3-132	132	4500	2713	7461	92.0%	3.8	3	1.5	80	95	489
TFD-4-144	144	4500	3108	9324	92.0%	4.8	4	1.5	79	93	509
TFD-4-156	156	4500	2941	9558	92.0%	4.9	4	1.5	82	96	522
TFD-4-168	168	4500	2798	9792	92.0%	5.0	4	1.5	82	96	534

*dBA levels are not licensed by AMCA International
dBA levels calculated from sone values supplied by AMCA based on spherical free field at 5 ft.
ⱡ The A-weighted sound power ratings shown have been calculated per AMCA Standard 301
Values shown are for total LwA sound power levels for Installation Type A: free inlet, free outlet.

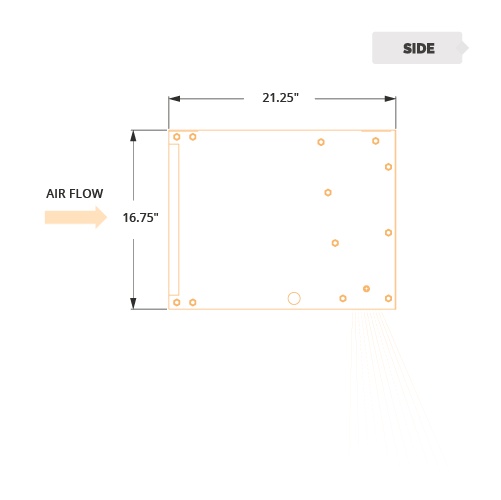

TFD Air Curtain \| Mechanical Information Table
MODEL	Overall Width (in.)	Nozzle Width (in.)	Mounting Width Rear and Top (in.)
TFD-1-36	39	36	37.5
TFD-1-48	51	48	49.5
TFD-1-60	63	60	61.5
TFD-2-72	75.07	72.07	73.57
TFD-2-84	87.07	84.07	85.57
TFD-2-96	99.07	96.07	97.57
TFD-2-108	111.07	108.07	109.57
TFD-3-108	111.15	108.15	109.65
TFD-3-120	123.15	120.15	121.65
TFD-3-132	135.15	132.15	133.65
TFD-4-144	147.22	144.22	145.72
TFD-4-156	159.22	156.22	157.72
TFD-4-168	171.22	168.22	169.72
