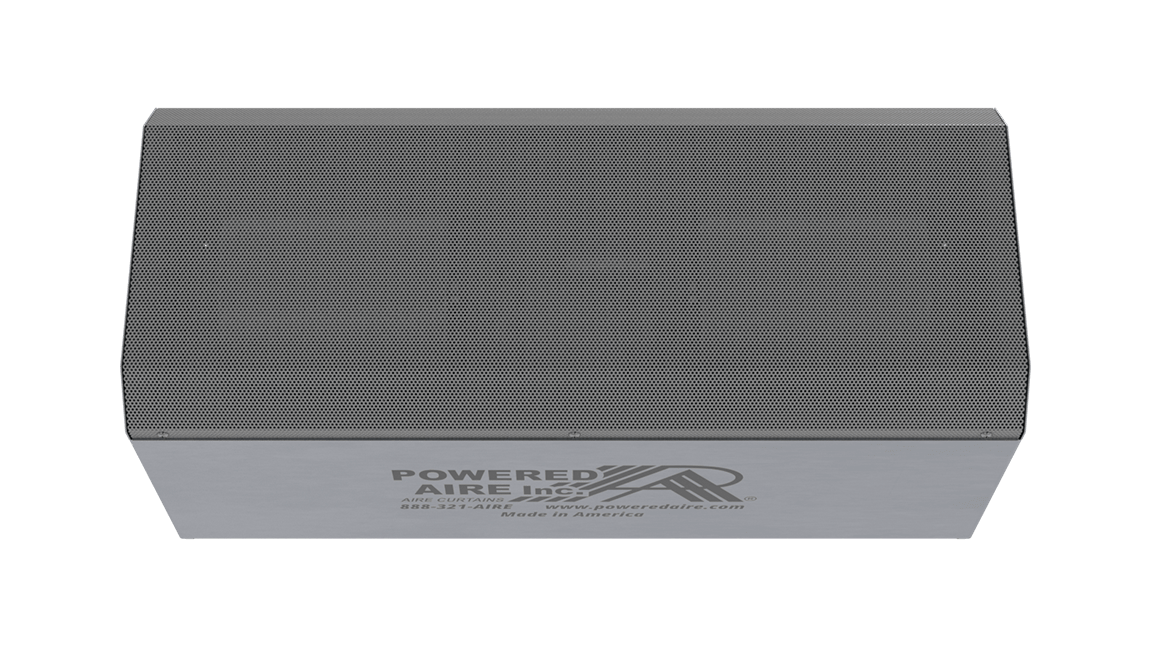

Freezer Aire™ (FAC-E) Electrically Heated Air Curtain

The Freezer Aire Curtain™ is an electrically heated air curtain designed to improve safety and functionality at ambient or cooler to freezer applications. The Freezer Aire Curtain™ reduces or eliminates fog, moisture, and ice buildup within the surrounding freezer area due to extreme temperature differences from one side of the opening to the other.

Get Unit Specs

FAC-E - Freezer Aire™ (FAC-E) Electrically Heated Air Curtain

Unit Sizing

Unit Width:

3' to 12'

Motor:

3/4 HP

Mount Type:

Exposed

Max Install Height:

14'

Wind Stoppage Ability:

= 17.3mph

Key Design Features

Stainless steel case is 18 gauge 304 stainless steel in a number three finish.
Heavy duty 3/4 HP motors. 1630 rpm each. Dual speed.
Galvanized fans.
Air intake screen is perforated stainless steel with mill grain finish.
High efficiency discharge plenum with directional air foil vane factory set to facilitate deflection of air stream +/- 20˚.
Heating elements are mounted inside the plenum, on the discharge side of the blowers, to ensure that heat won’t affect motor life and the heaters are protected from dust that would accumulate on them if they were mounted on the air intake.
More than a timer, it’s an – Aire Controller™. The Aire Controller™ provides strategically timed heat and fan functions for around-the-clock protection from moisture, frost and ice buildup on hard panel and high-speed fabric freezer doors. Offers preset and adjustable functions.

Air Curtain Controls

Magnetic door switch for activation
Dry contacts to interlock with door controller

360 View

Cost Savings Calculator

This tool will help you understand the cost savings you could expect based on the air curtain you select and your input on how and where it will be used.

Calculate Now

Air Curtain Selector

This tool is designed to help you find the best air curtain
for your situation by asking a few basic questions.

Begin

FAC-E Air Curtain Downloads

Download All

Individual Files

FAC-E Air Curtain \| Performance Table
MODEL	Nozzle Width (in.)	Max. FPM at Nozzle	Avg. FPM	Max. CFM	CFM at Nozzle	Outlet Velocity Uniformity	Number of Motors	Motor HP	Weight (lbs.)
FAC-1-36E	36	H 4218 L 2837	H 3695 L 2487	H 2899 L 1950	H 2541 L 1710	95%	1	3/4	95
FAC-1-42E	42	H 4218 L 2837	H 3169 L 2133	H 3384 L 2276	H 2532 L 1696	93%	1	3/4	102
FAC-1-48E	48	H 4218 L 2837	H 2771 L 1865	H 3867 L 2601	H 2559 L 1721	92%	1	3/4	109
FAC-1-60E	60	H 4218 L 2837	H 2218 L 1493	H 4374 L 2792	H 2528 L 1703	91%	1	3/4	121
FAC-2-60E	60	H 4218 L 2837	H 3315 L 2231	H 5050 L 3252	H 3812 L 2565	94%	2	3/4	155
FAC-2-72E	72	H 4218 L 2837	H 3696 L 2488	H 5803 L 3903	H 5082 L 3420	95%	2	3/4	177
FAC-2-84E	84	H 4218 L 2837	H 3169 L 2133	H 6766 L 4551	H 5063 L 3382	93%	2	3/4	195
FAC-2-96E	96	H 4218 L 2837	H 2773 L 1866	H 7732 L 5201	H 5081 L 3417	92%	2	3/4	210
FAC-3-108E	108	H 4218 L 2837	H 3702 L 2486	H 8702 L 5853	H 7623 L 5130	95%	3	3/4	255
FAC-3-120E	118	H 4218 L 2837	H 3174 L 2134	H 9668 L 6503	H 7614 L 5127	94%	3	3/4	284
FAC-3-132E	133	H 4218 L 2837	H 2792 L 1885	H 10853 L 7155	H 7589 L 5104	94%	3	3/4	301
FAC-4-144E	145	H 4218 L 2837	H 3696 L 2488	H 11606 L 7806	H 10164 L 6840	95%	4	3/4	354

FAC-E Air Curtain \| Mechanical Information Table
MODEL	Overall Width (in.)	Nozzle Width (in.)	Mounting Width (in.)
FAC-1-36E	37	36	36.06
FAC-1-42E	43	42	42.06
FAC-1-48E	49	48	48.06
FAC-1-60E	61	60	60.06
FAC-2-60E	61	60	60.06
FAC-2-72E	73	72	72.06
FAC-2-84E	85	84	84.06
FAC-2-96E	97	96	96.06
FAC-3-108E	109	108	108.06
FAC-3-120E	119	118	118.06
FAC-3-132E	134	133	133.06
FAC-4-144E	146	145	145.06
