CLD

Chameleon Light Duty (CLD) In-Ceiling Unheated Air Curtains

Unheated

The Chameleon Light Duty (CLD) is specifically designed to be dropped into the ceiling above customer entry ways where a standard air curtain cannot be exposed. Like the CED, the Chameleon also has the least objectionable airflow.

Full Size View 1 | CLD - Chameleon Light Duty (CLD) In-Ceiling Unheated Air Curtains
Thumbnail View 1 | CLD - Chameleon Light Duty (CLD) In-Ceiling Unheated Air Curtains Thumbnail View 2 | CLD - Chameleon Light Duty (CLD) In-Ceiling Unheated Air Curtains Thumbnail View 3 | CLD - Chameleon Light Duty (CLD) In-Ceiling Unheated Air Curtains Thumbnail View 4 | CLD - Chameleon Light Duty (CLD) In-Ceiling Unheated Air Curtains

At a Glance

Single Incremental Widths

3' to 12'

MAX Installation Height

11'

Heavy Duty Motors

1/2 HP

Key Design Features

  • 18 gauge galvanized steel case installed above the ceiling.
  • Heavy duty ½ HP motors. 1075 rpm each. 50/60 cycle. Dual speed.
  • Galvanized fans.
  • White powder coated decorative intake grille
  • High efficiency discharge plenum ensures that air being discharged fills the entire width and height of the opening. This also lowers the unit’s operational sound level.
  • Directional air foil vane factory set to facilitate deflection of air stream +/-20 degrees.
  • Includes control panel

Recommended Controls

  • OFF / LOW / HIGH switch
  • Magnetic door switch for activation
  • Time delay relay

360 View

360 View | CLD - Chameleon Light Duty (CLD) In-Ceiling Unheated Air Curtains

Cost Savings Calculator

This tool will help you understand the cost savings you could expect based on the air curtain you select and your input on how and where it will be used.

Calculate Now

Air Curtain Selector

This tool is designed to help you find the best air curtain
for your situation by asking a few basic questions.

Begin

CLD Downloads

Download All

Individual Files

CLD | Performance Table
MODELNozzle
Width (in.)		Max. FPM
at Nozzle		Avg.
FPM		Max.
CFM		CFM at
Nozzle		Outlet Velocity
Uniformity		Number of
Motors		Motor
HP		Weight
(lbs.)
CLD-1-3636H 1904
L 1748		H 1570
L 1408		H 1309
L 1202		H 1005
L 961		95%11/2171
CLD-1-4848H 1904
L 1748		H 1178
L 1056		H 1745
L 1603		H 1094
L 983		92%11/2189
CLD-1-6060H 1904
L 1748		H 942
L 845		H 1790
L 1650		H 1084
L 977		91%11/2220
CLD-2-7272H 1904
L 1748		H 1570
L 1408		H 2618
L 2404		H 2159
L 1936		95%21/2342
CLD-2-8484H 1904
L 1748		H 1346
L 1207		H 3054
L 2804		H 2093
L 1896		93%21/2355
CLD-2-9696H 1904
L 1748		H 1178
L 1056		H 3490
L 3204		H 2170
L 1942		92%21/2370
CLD-2-108108H 1904
L 1748		H 1058
L 945		H 3710
L 3403		H 2182
L 1949		95%21/2395
CLD-3-108108H 1904
L 1748		H 1570
L 1408		H 3928
L 3606		H 3239
L 2905		92%31/2513
CLD-3-120120H 1904
L 1748		H 1421
L 1274		H 4364
L 4006		H 3230
L 2900		95%31/2530
CLD-3-132132H 1904
L 1748		H 1178
L 1056		H 4950
L 4658		H 3247
L 2912		95%31/2545
CLD-4-144144H 1904
L 1748		H 1570
L 1408		H 5236
L 4808		H 4318
L 3872		95%41/2684

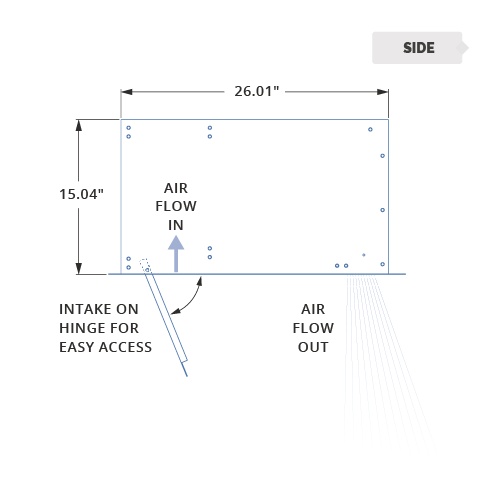

CLD | Mechanical Information Table
MODELOverall Width
(in.)		Nozzle Width
(in.)		Mounting Width
(in.)
CLD-1-36393637.5
CLD-1-48514849.5
CLD-1-60636061.5
CLD-2-7275.0772.0773.57
CLD-2-8487.0784.0785.57
CLD-2-9699.0796.0797.57
CLD-2-108111.07108.07109.57
CLD-3-108111.15108.15109.65
CLD-3-120123.15120.15121.65
CLD-3-132135.15132.15133.65
CLD-4-144147.22144.22145.72
