CED
Air Curtain

Customer Entrance Door (CED) Unheated Air Curtain

Unheated

The Customer Entrance Door (CED) air curtain from Powered Aire is specially designed for high-traffic retail facilities where customer satisfaction is key. The CED creates a barrier to keep conditioned air inside the building and unconditioned/unwanted elements out. It also maximizes employee and customer comfort. The CED has a gentle airflow and its unique plenum design helps make it one of the quietest air curtains in the industry. The CED is capable of being used as an exception to vestibules, having met all the criteria set forth in various codes. It has also been tested in accordance with the ANSI/AMCA 220 Standard.


Unit Sizing

Unit Widths:
from 3' to 14'
Motors:
1/2 HP
Mount Type:
Exposed
Max Install Height:
11'
Wind Stoppage Ability:
= 13.7mph

Key Design Features

  • 18 gauge 304 stainless steel in a number three finish
  • Heavy duty 1⁄2 HP motors. 1075 rpm each. 50/60 cycle.
  • Galvanized fans
  • Air intake screen is perforated stainless steel with mill grain finish
  • High efficiency discharge plenum ensures that air being discharged fills the entire width and height of the opening. This also lowers the unit’s operational sound level
  • All units are direct drive, which avoids misalignment of couplers and outboard bearings and eliminates belt replacement
  • Can be used as an exception to vestibules

Recommended Air Curtain Controls

  • ON/OFF Switch
  • Magnetic Door Switch for activation
  • Time delay relay

360 View

360 View | CED - Customer Entrance Door (CED) Unheated Air Curtain

Cost Savings Calculator

This tool will help you understand the cost savings you could expect based on the air curtain you select and your input on how and where it will be used.

Calculate Now

Air Curtain Selector

This tool is designed to help you find the best air curtain
for your situation by asking a few basic questions.

Begin
CED Air Curtain | Performance Table
MODEL Nozzle Width (in.) Max. FPM at Nozzle Avg. Outlet Velocity (FPM) Airflow Rate (CFM) Outlet Velocity Uniformity Power Rating (kW) Number of Motors Motor HP Weight (lbs)
CED-1-36 36 5560 1205 892 88% 0.25 1 1/2 83
CED-1-42 42 5305 1209 1040 90% 0.28 1 1/2 90
CED-1-48 48 4628 1131 1108 89% 0.28 1 1/2 97
CED-1-60 60 5096 998 1227 79% 0.29 1 1/2 111
CED-2-72 72 5560 1205 1784 88% 0.50 2 1/2 162
CED-2-84 84 5305 1209 2080 90% 0.56 2 1/2 182
CED-2-96 96 4628 1131 2216 89% 0.56 2 1/2 196
CED-3-108 108 5560 1205 2676 88% 0.75 3 1/2 239
CED-3-120 118 5028 1176 2892 88% 0.78 3 1/2 267
CED-3-132 133 4996 1111 3011 79% 0.79 3 1/2 276
CED-4-144 145 5560 1205 2568 88% 1.00 4 1/2 324
CED-4-156 157 5300 1208 3864 88% 1.06 4 1/2 342
CED-4-168 169 5305 1209 4160 90% 1.12 4 1/2 360

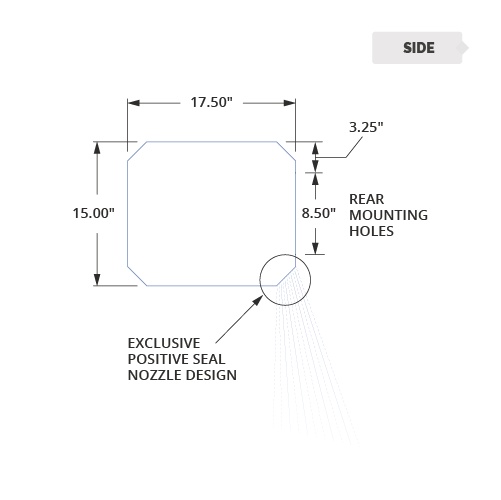

CED Air Curtain | Mechanical Information Table
MODEL Overall Width (in.) Nozzle Width (in.) Mounting Width (in.)
CED-1-36 37 36 36.06
CED-1-42 43 42 42.06
CED-1-48 49 48 48.06
CED-1-60 61 60 60.06
CED-2-72 73 72 72.06
CED-2-84 85 84 84.06
CED-2-96 97 96 96.06
CED-3-108 109 108 108.06
CED-3-120 119 118 118.06
CED-3-132 134 133 133.06
CED-4-144 146 145 145.06
CED-4-156 158 157 157.06
CED-4-168 170 169 169.06
