ECC
Air Curtain

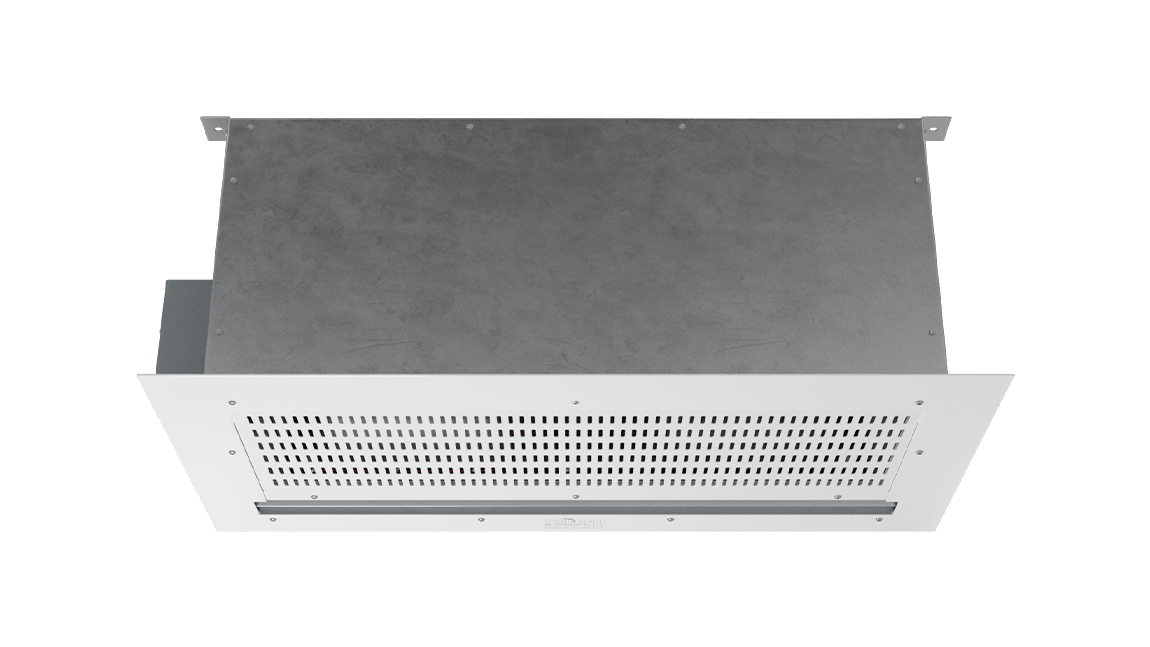

ECo Motor™ (ECC) Unheated Air Curtain

The ECC model air curtain is specifically designed to be dropped into the ceiling above customer entryways where a standard air curtain cannot be exposed.

Get Unit Specs

ECC - ECo Motor™ (ECC) Unheated Air Curtain

Unit Sizing

Unit Width:

3' to 12'

Motor:

3/4 HP

Mount Type:

Exposed

Max Install Height:

14'

Wind Stoppage Ability:

= 17.3mph

Thumbnail View 1 | ECC - ECo Motor™ (ECC) Unheated Air Curtain

Thumbnail View 2 | ECC - ECo Motor™ (ECC) Unheated Air Curtain

Thumbnail View 3 | ECC - ECo Motor™ (ECC) Unheated Air Curtain

Thumbnail View 4 | ECC - ECo Motor™ (ECC) Unheated Air Curtain

Key Design Features

White decorative intake grille with hinged access panel (consult factory for custom finishes)
3/4 HP EC (Electronically Commutated) direct-drive motor(s) with 2:1 speed turndown ratio and instantaneous startup
High-efficiency discharge plenum with adjustable air foil vane (+/-20˚)

Air Curtain Controls

Activation by 24V magnetic door switch
Toggle disconnect switch
SmartTouch controller
Filter (washable)

360 View

Cost Savings Calculator

This tool will help you understand the cost savings you could expect based on the air curtain you select and your input on how and where it will be used.

Calculate Now

Air Curtain Selector

This tool is designed to help you find the best air curtain
for your situation by asking a few basic questions.

Begin

ECC Air Curtain Downloads

Download All

Individual Files

ECC Air Curtain \| Performance Table
MODEL	Nozzle Width (in.)	Max. FPM at Nozzle	Avg. FPM	Max. CFM	CFM at Nozzle	Outlet Velocity Uniformity	Number of Motors	Motor HP	Weight (lbs.)
ECC-1-36	36	4218	3695	2899	2541	95%	1	3/4	179
ECC-1-48	48	4218	2771	3867	2559	92%	1	3/4	195
ECC-1-60	60	4218	2218	4374	2528	91%	1	3/4	225
ECC-2-72	72.07	4218	3696	5803	5082	95%	2	3/4	358
ECC-2-84	84.07	4218	3169	6766	5063	93%	2	3/4	371
ECC-2-96	96.07	4218	2773	7732	5081	92%	2	3/4	384
ECC-2-108	108.07	4218	2472	8216	5090	95%	2	3/4	397
ECC-3-108	108.15	4218	3702	8702	7623	92%	3	3/4	537
ECC-3-120	120.15	4218	3174	9668	7614	95%	3	3/4	550
ECC-3-132	132.15	4218	2792	10177	7589	95%	3	3/4	563
ECC-4-144	144.22	4218	3696	11606	10164	95%	4	3/4	716

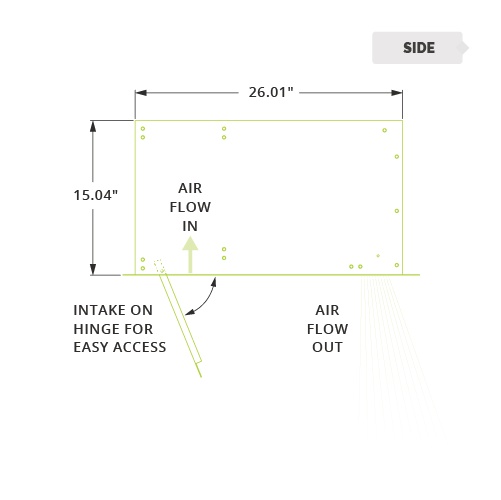

ECC Air Curtain \| Mechanical Information Table
MODEL	Nozzle Width (in.)	Overall Width (in.)	Mounting Width (in.)
ECC-1-36	36	39	37.5
ECC-1-48	48	51	49.5
ECC-1-60	60	63	61.5
ECC-2-72	72.07	75.07	73.57
ECC-2-84	84.07	87.07	85.57
ECC-2-96	96.07	99.07	97.57
ECC-2-108	108.07	111.07	109.57
ECC-3-108	108.15	111.15	109.65
ECC-3-120	120.15	123.15	121.65
ECC-3-132	132.15	135.15	133.65
ECC-4-144	144.22	147.22	145.72
