Light-Duty Corrosive Area (LDC) Unheated Air Curtains

Unheated

The LDC air curtain is designed for use in corrosive atmospheres. This light duty model has 3/4 hp motors and is unheated. This model differs from Powered Aire’s standard units by featuring a higher grade stainless steel case and stainless steel internal components for added protection against rust and corrosion.

At a Glance

Single Incremental Widths

3' to 12'

MAX Installation Height

12'

Heavy Duty Motors

3/4 HP

Key Design Features

  • Heavy duty case is 18 gauge 316 stainless steel in a number three finish.
  • Heavy duty Total Enclosed Aire Over (TEAO) 3/4 HP Dirty Duty Autophoretic motors with 316 stainless steel shafts. 1725 rpm each.
  • 316 stainless steel fans and housings.
  • All fastening components including screws and bolts are type 316 stainless steel.
  • Air intake screen is perforated 316 stainless steel with mill grain finish.
  • High efficiency discharge plenum with directional air foil vane factory set to facilitate deflection of air stream +/- 20 ̊.
  • NEMA 4X control panel constructed of 316 stainless steel.

Recommended Controls

  • Panel mounted HAND / OFF / AUTO switch
  • Magnetic Door switch for activation

360 View

360 View | LDC - Light-Duty Corrosive Area (LDC) Unheated Air Curtains

Cost Savings Calculator

This tool will help you understand the cost savings you could expect based on the air curtain you select and your input on how and where it will be used.

Calculate Now

Air Curtain Selector

This tool is designed to help you find the best air curtain
for your situation by asking a few basic questions.

Begin
LDC | Performance Table
MODELNozzle
Width (in.)
Max. FPM
at Nozzle
Max. CFM
at Nozzle
Outlet Velocity
Uniformity
Number of
Motors
Motor
HP
Weight
(lbs.)
LDC-1-36364218289995%13/490
LDC-1-42424218338493%13/497
LDC-1-48484218386792%13/4104
LDC-1-60604218437491%13/4117
LDC-2-72724218580395%23/4169
LDC-2-84844218676693%23/4187
LDC-2-96964218773292%23/4203
LDC-3-1081084218870295%33/4245
LDC-3-1201184218966894%33/4274
LDC-3-13213342181085395%33/4290
LDC-4-14414542181160695%43/4338

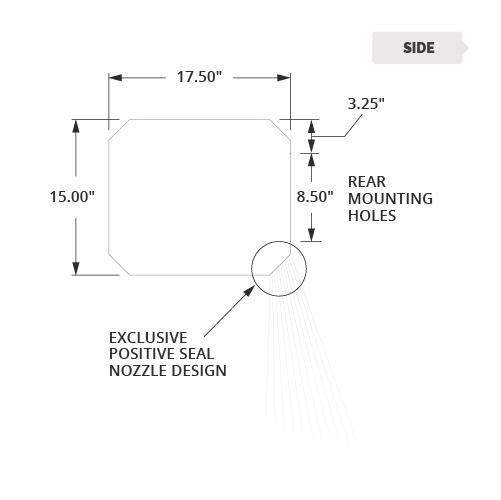

LDC | Mechanical Information Table
MODELOverall Width
(in.)
Nozzle Width
(in.)
Mounting Width
Top and Rear (in.)
LDC-1-36373636.0625
LDC-1-42434242.0625
LDC-1-48494848.0625
LDC-1-60616060.0625
LDC-2-72737272.0625
LDC-2-84858484.0625
LDC-2-96979696.0625
LDC-3-108109108108.0625
LDC-3-120119118118.0625
LDC-3-132134133133.0625
LDC-4-144146145145.0625
