Customer Entrance Door (CED-E) Electrically Heated Air Curtain

The heated version of the Customer Entrance Door (CED) from Powered Aire adds a heating element to this popular air curtain. The unit is ideal for use in areas receiving large amounts of pedestrian traffic and is commonly found in high-traffic retail facilities where customer satisfaction is key.

The heated CED creates a thermal barrier that maximizes the comfort of those within the area. It also keeps conditioned air inside and unwanted elements out. The CED-E has a gentle airflow and its unique plenum design helps make it one of the quietest air curtains in the industry. The CED-E can be used as an exception to vestibules, having met all the necessary codes and has been tested in accordance with the ANSI/AMCA 220 standard.

Get Unit Specs

CED-E - Customer Entrance Door (CED-E) Electrically Heated Air Curtain

Unit Sizing

Unit Widths:

from 3' to 14'

Motors:

1/2 HP

Mount Type:

Exposed

Max Install Height:

11'

Wind Stoppage Ability:

= 13.7mph

Key Design Features

18 gauge 304 stainless steel in a number three finish
Heavy duty 1⁄2 HP motors. 1075 rpm each. 50/60 cycle.
Galvanized fans
Air intake screen is perforated stainless steel with mill grain finish
High efficiency discharge plenum ensures that air being discharged fills the entire width and height of the opening. This also lowers the unit’s operational sound level
All units are direct drive, which avoids misalignment of couplers and outboard bearings and eliminates belt replacement
Can be used as an exception to vestibules

Recommended Air Curtain Controls

ON/OFF Switch
Thermostat, if electrically heated
Magnetic Door Switch for activation
Time delay relay

360 View

Cost Savings Calculator

This tool will help you understand the cost savings you could expect based on the air curtain you select and your input on how and where it will be used.

Calculate Now

Air Curtain Selector

This tool is designed to help you find the best air curtain
for your situation by asking a few basic questions.

Begin

CED-E Air Curtain Downloads

Download All

Individual Files

CED-E Air Curtain \| Performance Table
									Electric Heat
MODEL	Nozzle Width (in.)	Max. FPM at Nozzle	Avg. Outlet Velocity (FPM)	Airflow Rate (CFM)	Outlet Velocity Uniformity	Power Rating (kW)	Number of Motors	Motor HP	Heater kW	Temp. Rise (˚F)	Weight (lbs)
CED-1-36E	36	5560	1074	795	87%	0.24	1	1/2	10	40	88
CED-1-42E	42	5305	1030	886	96%	0.24	1	1/2	10	36	95
CED-1-48E	48	4628	987	967	94%	0.25	1	1/2	10	33	102
CED-1-60E	60	5096	822	1011	89%	0.25	1	1/2	10	32	113
CED-2-60E*	60	6269	1080	1329	94%	0.37	2	1/2	15	36	150
CED-2-72E	72	5560	1074	1590	87%	0.48	2	1/2	20	40	172
CED-2-84E	84	5305	1030	1772	96%	0.48	2	1/2	20	36	192
CED-2-96E	96	4628	987	1934	94%	0.50	2	1/2	20	33	206
CED-3-108E	108	5560	1074	2385	87%	0.72	3	1/2	30	40	244
CED-3-120E	118	5028	1039	2557	87%	0.73	3	1/2	30	37	272
CED-3-132E	133	4996	9660	2601	87%	0.73	3	1/2	30	37	285
CED-4-144E	145	5560	1074	3180	87%	0.96	4	1/2	40	40	344
CED-4-156E	157	5300	1051	3362	87%	0.96	4	1/2	40	38	362
CED-4-168E	169	5305	1030	3554	96%	0.96	4	1/2	40	36	380
*Model CED-2-60E is not licensed to bear the AMCA seal.

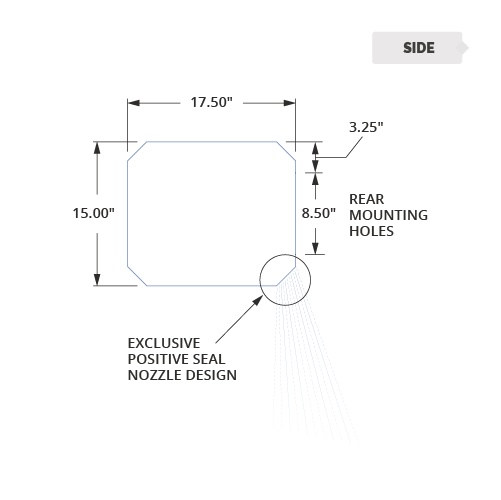

CED-E Air Curtain \| Mechanical Information Table
MODEL	Overall Width (in.)	Nozzle Width (in.)	Mounting Width (in.)
CED-1-36E	37	36	36.06
CED-1-42E	43	42	42.06
CED-1-48E	49	48	48.06
CED-1-60E	61	60	60.06
CED-2-60E	61	60	60.06
CED-2-72E	73	72	72.06
CED-2-84E	85	84	84.06
CED-2-96E	97	96	96.06
CED-3-108E	109	108	108.06
CED-3-120E	119	118	118.06
CED-3-132E	134	133	133.06
CED-4-144E	146	145	145.06
CED-4-156E	158	157	157.06
CED-4-168E	170	169	169.06
