PTW-E
Air Curtain

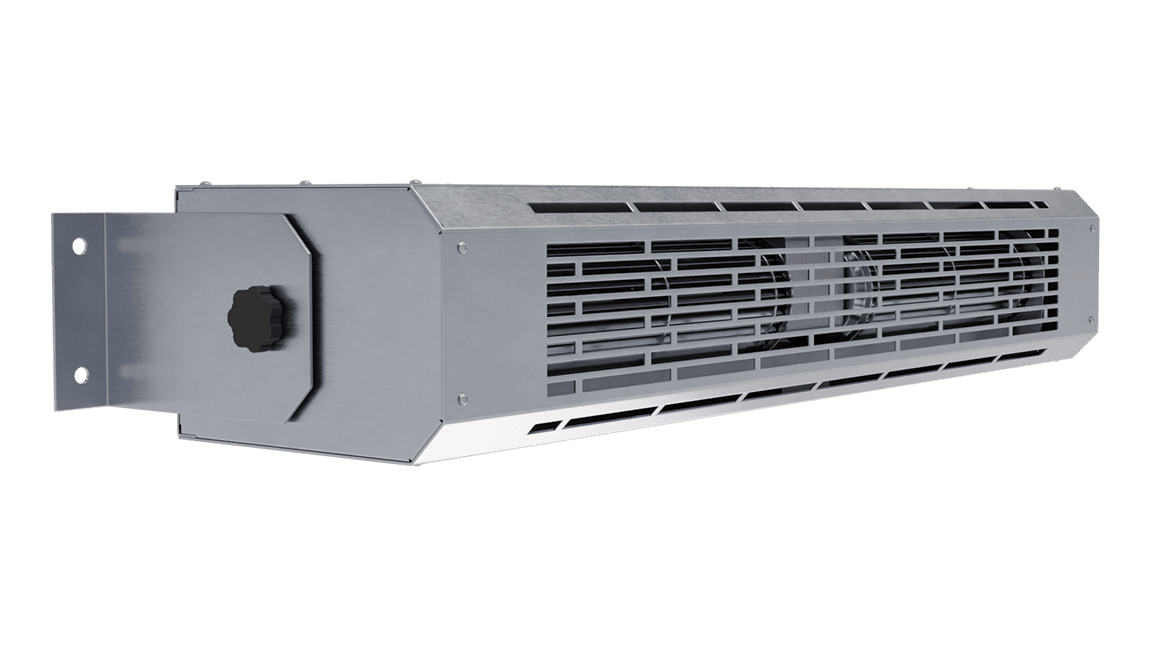

Pass Thru Window (PTW-E) Electrically Heated Air Curtain

The PTW is specifically designed to stop outside air and vehicle fumes from infiltrating a drive-thru window.

Get Unit Specs

PTW-E - Pass Thru Window (PTW-E) Electrically Heated Air Curtain

Unit Sizing

Unit Width:

26.5"

Motor:

Mount Type:

Exposed

Max Install Height:

3' 6"

Wind Stoppage Ability:

= 4.9mph

Key Design Features

20 gauge 304 stainless steel outer case with a number three finish.
107 watt motor.
120 volt power cord plugs into standard receptacle.
Swivel mounting brackets allow for rear or top mounting and also allow for adjustment of the discharge angle.
Easy installation

Air Curtain Controls

Unit mounted variable speed dial, with FAN / OFF / HEAT switch.

360 View

Cost Savings Calculator

This tool will help you understand the cost savings you could expect based on the air curtain you select and your input on how and where it will be used.

Calculate Now

Air Curtain Selector

This tool is designed to help you find the best air curtain
for your situation by asking a few basic questions.

Begin

PTW-E Air Curtain Downloads

Download All

Individual Files

PTW-E Air Curtain \| Performance Table
MODEL	Avg. Velocity at Nozzle on highest speed (FPM)	Air Flow Rate at Nozzle on highest speed (CFM)	Motor Power (Watts)	Electric Heating Capacity	Temp. Rise (°F) on highest speed	Amp Draw	Weight (lbs.)	Sound Level
PTW-24E	1653	363	107	1.2 kW	10.6° F	11.2	21	50 dba ^*
^* Measured 10' away from unit in a free field on highest speed

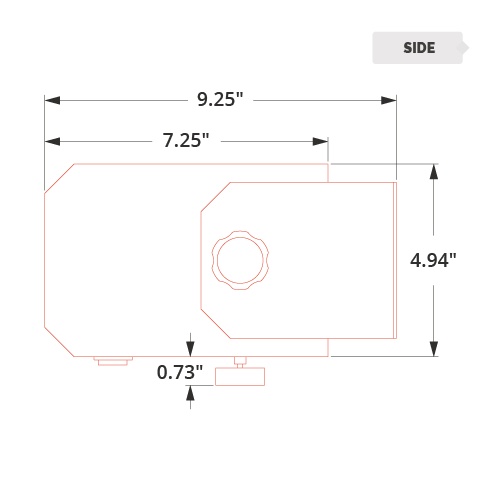

PTW-E Air Curtain \| Mechanical Information Table
MODEL	Overall Width	Unit Width	Mounting Width	Unit Height
PTW-24E	31.26	28.5	30.26	4.94
