ETA-ST
Air Curtain

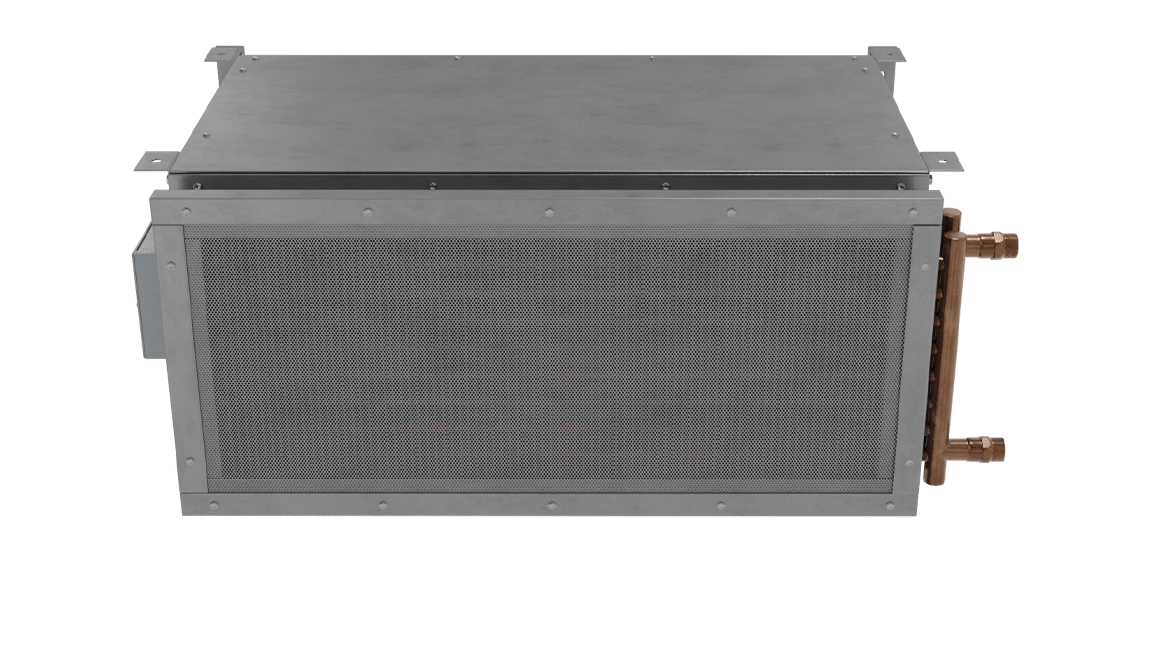

Exposed Vestibule Exception (ETA-ST) Steam Heated Air Curtain

When requesting a quote for Steam heated air curtain, please provide:
• Specifics of steam entering and exiting the air curtain.
• Location for steam supplies and returns (both on one side or one each side)

Get Unit Specs

ETA-ST - Exposed Vestibule Exception (ETA-ST) Steam Heated Air Curtain

Unit Sizing

Unit Widths:

from 3' to 14'

Motors:

3/4 HP

Mount Type:

Exposed

Max Install Height:

14'

Wind Stoppage Ability:

= 17.3mph

Key Design Features

Stainless steel case is 18 gauge 304 stainless steel in a number three finish.
Heavy duty 3/4 HP motors. 1630 rpm each.
High efficiency discharge plenum ensures that air being discharged fills the entire width and height of the opening. This also lowers the operational sound level.
Made-to-order steam or hot water coil mounted to intake of air curtain. Coil consists of 5/8 in. O.D. copper tubes and aluminum fins. Coils certified to ARI standard 410.
Control panel included

Recommended Air Curtain Controls

ON / OFF switch
Magnetic door switch for activation
Built-in time delay relay

360 View

Cost Savings Calculator

This tool will help you understand the cost savings you could expect based on the air curtain you select and your input on how and where it will be used.

Calculate Now

Air Curtain Selector

This tool is designed to help you find the best air curtain
for your situation by asking a few basic questions.

Begin

ETA-ST Air Curtain Downloads

Download All

Individual Files

ETA-ST Air Curtain \| Performance Table
							Steam
MODEL	Nozzle Width (in.)	FPM	CFM	Outlet Velocity Uniformity	Number of Motors	Motor HP	mbtu / Hour	Temp. Rise (°F)	Weight (lbs.)
ETA-1-36ST	36	2060	1401	88%	1	3/4	54	35.3	113
ETA-1-48ST	48	1849	1757	84%	1	3/4	70.4	36.8	145
ETA-1-60ST	60	1619	2007	72%	1	3/4	84.5	38.6	180
ETA-2-72ST	72	2060	2802	88%	2	3/4	110.2	36.1	249
ETA-2-84ST	84	2022	3356	88%	2	3/4	127.5	34.8	281
ETA-2-96ST	96	1849	3514	84%	2	3/4	143	37.3	306
ETA-3-108ST	108	2060	4203	88%	3	3/4	166.2	36.2	365
ETA-3-120ST	120	2033	4757	88%	3	3/4	186.5	35.9	406
ETA-3-132ST	132	1860	4809	72%	3	3/4	196.5	37.5	470
ETA-4-144ST	144	2060	5604	88%	4	3/4	221.7	36.3	491
ETA-4-156ST	156	2040	6158	88%	4	3/4	241.8	36	530
ETA-4-168ST	168	2022	6712	88%	4	3/4	261.8	35.7	560

ETA-ST Air Curtain \| Mechanical Information Table
MODEL	Overall Width (in.)	Nozzle Width (in.)	Mounting Width (in.)
ETA-1-36ST	39	36	37.5
ETA-1-48ST	51	48	49.5
ETA-1-60ST	63	60	61.5
ETA-2-72ST	75.07	72.07	73.57
ETA-2-84ST	87.07	84.07	85.57
ETA-2-96ST	99.07	96.07	97.57
ETA-3-108ST	111.15	108.15	109.65
ETA-3-120ST	123.15	120.15	121.65
ETA-3-132ST	135.15	132.15	133.65
ETA-4-144ST	147.22	144.22	145.72
ETA-4-156ST	159.22	156.22	157.22
ETA-4-168ST	171.22	168.22	169.22
