UVC-E

UV-C Light System For Air Purification Electrically Heated Air Curtains

Electric

The UVC-Aire offers a variable speed air curtain in a stainless-steel case. ¾ HP motors run continuously on low speed to provide a constant stream of purified air. Low-speed operation of the unit has been proven to inactivate/kill up to 99% of Coronavirus pathogens passing through the air curtain. The UVC-Aire is ideal for healthcare, retail, gyms, restaurants and other facilities looking to provide an added layer of protection against airborne germs.


Unit Sizing

Unit Widths:
from 3' to 12'
Motors:
3/4 HP
Mount Type:
Above Ceiling
Max Install Height:
14'
UVC Light Wavelength:
253.7nm
COVID-19 Kill Rate:
99.01 to 99.71% dependent on unit/speed
For Door Widths Between
36" and 168"

How the UVC-Aire Protects

  1. Germs, viruses and bacteria are pulled into the air curtain
  2. Upon entering, the harmful pathogens are exposed to and inactivated by UV-C light
  3. The discharged air is significantly reduced of dangerous pathogens such as the Coronavirus

UVC-Aire Retrofit Extension

Extension of the case for retrofit of previously installed air curtains.

  • UVC-Aire –Powered Aire’s air sanitation system proven to eliminate Covid-19 and other viruses from the air at up to a 99.9% effectiveness rate.
  • Designed to retrofit on most existing unheated or electrically heated commercial or low-profile units
  • Quick and easy installation – easily extend the case length with emitters and new filter.
  • Plug-and-Play with 120 Volt Power Supply. Emitters will continuously operate independent of air curtain operation.
  • Simply move existing intake screen and filters to be to the front of the extension.

Cost Savings Calculator

This tool will help you understand the cost savings you could expect based on the air curtain you select and your input on how and where it will be used.

Calculate Now

Air Curtain Selector

This tool is designed to help you find the best air curtain
for your situation by asking a few basic questions.

Begin
UVC-E | Performance Table
Electric Heat
MODEL Nozzle Width (in.) Max FPM at Nozzle Average Outlet Velocity (FPM) Airflow Rate (CFM) Outlet Velocity Uniformity Power Rating (kW) Number of Motors Motor HP Heater kW Temp. Rise (˚F) Weight (lbs) Coronavirus Inactivation Rate Number of Emitters
UVC-1-36E 36 5654 2060 1401 88% 0.76 1 3/4 110 10 13 99.01 2
UVC-1-42E 42 5321 2022 1678 88% 0.84 1 3/4 118 10 13 99.15 2
UVC-1-48E 48 5296 1849 1757 84% 0.86 1 3/4 125 10 13 99.56 2
UVC-1-60E 60 5288 1619 2007 72% 0.94 1 3/4 139 10 13 99.71 2
UVC-2-72E 72 5654 2060 2802 88% 1.52 2 3/4 193 20 13 99.44 2
UVC-2-84E 84 5321 2022 3356 88% 1.68 2 3/4 212 20 13 99.26 4
UVC-2-96E 96 5296 1849 3514 84% 1.72 2 3/4 231 20 13 99.62 4
UVC-3-108E 108 5654 2060 4203 88% 2.28 3 3/4 275 30 13 99.63 4
UVC-3-120E 118 5340 2033 4757 88% 2.44 3 3/4 306 30 13 99.61 4
UVC-3-132E 133 5305 1860 4809 72% 2.46 3 3/4 336 30 13 99.61 4
UVC-4-144E 145 5654 2060 5604 88% 3.04 4 3/4 388 40 13 99.48 4

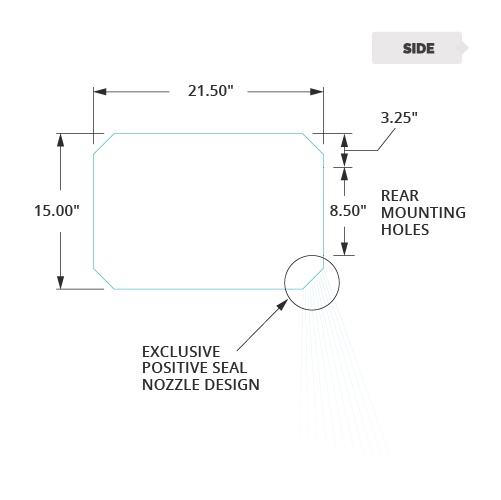

UVC-E | Mechanical Information Table
MODEL Overall Width (in.) Nozzle Width (in.) Mounting Width (in.)
UVC-1-36E 36 37 36.06
UVC-1-42E 42 43 42.06
UVC-1-48E 48 49 48.06
UVC-1-60E 60 61 60.06
UVC-2-72E 72 73 72.06
UVC-2-84E 84 85 84.06
UVC-2-96E 96 97 96.06
UVC-3-108E 108 109 108.06
UVC-3-120E 118 119 118.06
UVC-3-132E 133 134 133.06
UVC-4-144E 145 146 145.06
