ECC-HW

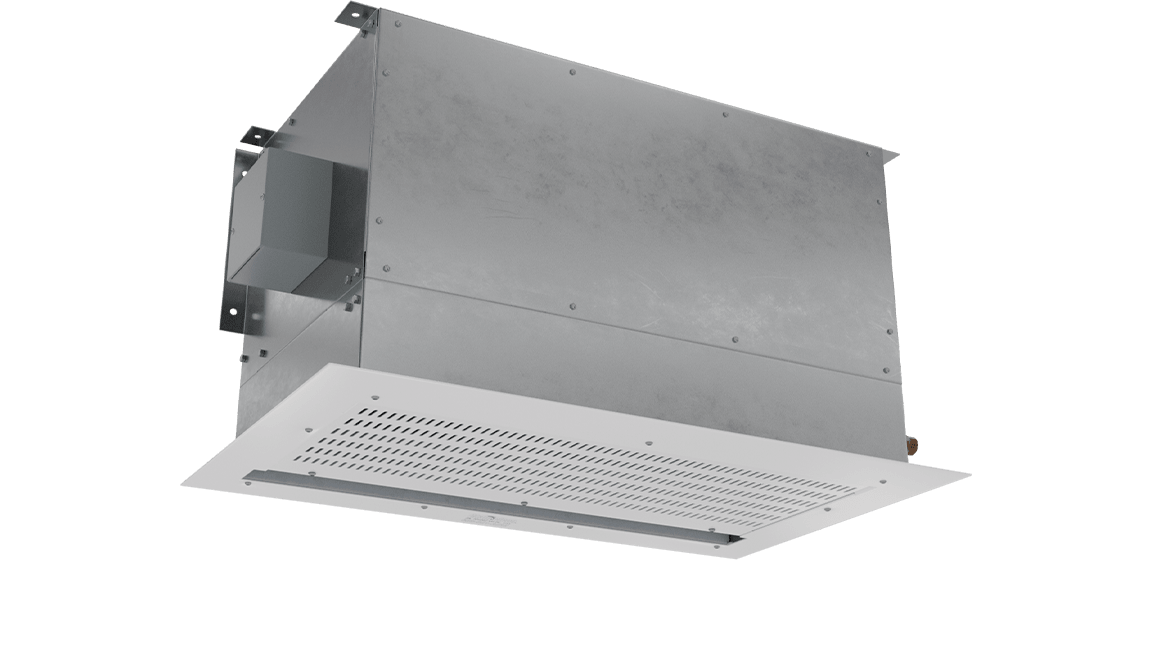

ECo Motor™ (ECC-HW) Hot Water Heated Air Curtains

Hot Water

The ECC model air curtain is specifically designed to be dropped into the ceiling above customer entryways where a standard air curtain cannot be exposed.

At a Glance

Single Incremental Widths

3' to 12'

MAX Installation Height

14'

Heavy Duty Motors

3/4 HP

Key Design Features

  • Heavy duty 3⁄4 HP EC motors. 1650 rpm on high speed.
  • 2:1 turndown ratio when used with optional speed dial.
  • Galvanized fans.
  • White powder coated decorative intake grille.
  • High efficiency discharge plenum ensures that air being discharged fills the entire width and height of the opening. This also lowers the unit’s operational sound level.
  • Hot water coil mounted to intake of air curtain. Coil consists of 5/8 in. O.D. copper tubes and aluminum fins. Coils certified to ARI standard 410.
  • Includes control panel.

Recommended Controls

  • Variable Speed Dial
  • Magnetic Door Switch for activation
  • Time Delay Relay
  • Potentiometer to control motor speed

360 View

360 View | ECC-HW - ECo Motor™ (ECC-HW) Hot Water Heated Air Curtains

Cost Savings Calculator

This tool will help you understand the cost savings you could expect based on the air curtain you select and your input on how and where it will be used.

Calculate Now

Air Curtain Selector

This tool is designed to help you find the best air curtain
for your situation by asking a few basic questions.

Begin
ECC-HW | Performance Table
Hot Water
MODELNozzle
Width (in.)
Max. FPM
at Nozzle
Avg.
FPM
Max.
CFM
CFM at
Nozzle
Outlet Velocity
Uniformity
Number of
Motors
Motor
HP
mbtu/ HourTemp.Rise (˚F)Weight
(lbs.)
ECC-1-36HW36421836952899254195%13/49735206
ECC-1-48HW48421827713867255992%13/410237224
ECC-1-60HW60421822184374252891%13/410036255
ECC-2-72HW72.07421836965803508295%23/419435402
ECC-2-84HW84.07421831696766506393%23/420537415
ECC-2-96HW96.07421827737732508192%23/419435430
ECC-2-108HW108.07421824728216509095%23/419235455
ECC-3-108HW108.15421837028702762392%33/428334598
ECC-3-120HW120.15421831749668761495%33/430737615
ECC-3-132HW132.154218279210177758995%33/430737630
ECC-4-144HW144.2242183696116061016495%43/438835794
