ECo Motor™ (ECC-E) Electrically Heated Air Curtains

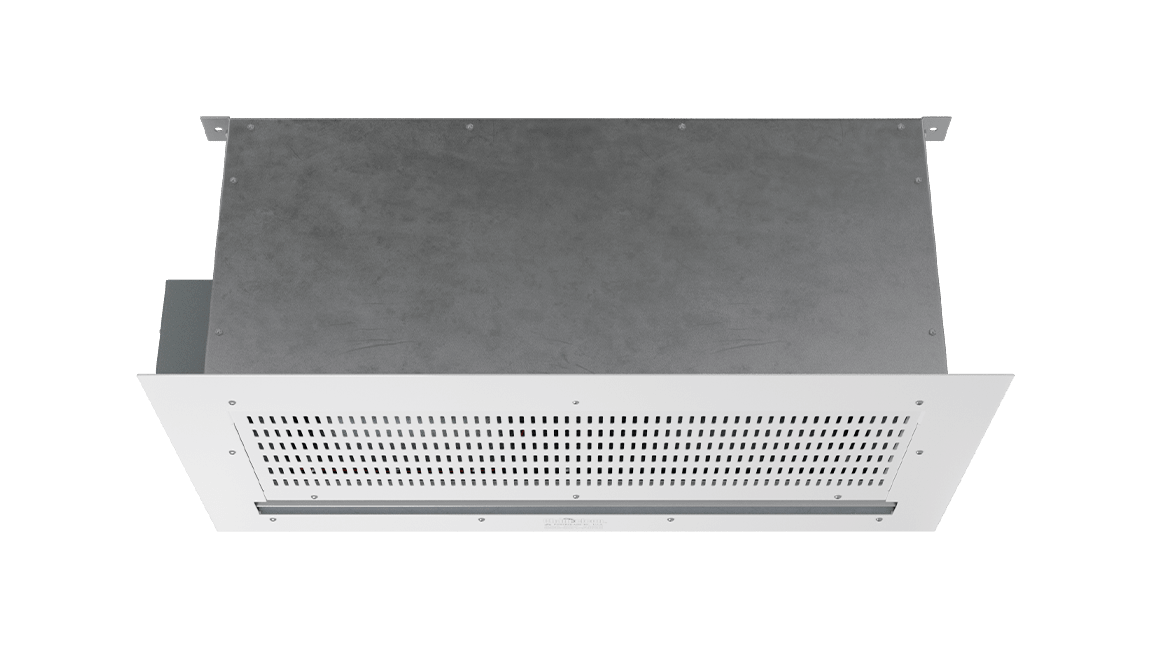

ElectricThe ECC model air curtain is specifically designed to be dropped into the ceiling above customer entryways where a standard air curtain cannot be exposed.
At a Glance
Single Incremental Widths
3' to 12'
MAX Installation Height
14'
Heavy Duty Motors
3/4 HP
Key Design Features
- Heavy duty 3⁄4 HP EC motors. 1650 rpm on high speed.
- 2:1 turndown ratio when used with optional speed dial.
- Galvanized fans.
- White powder coated decorative intake grille.
- High efficiency discharge plenum ensures that air being discharged fills the entire width and height of the opening. This also lowers the unit’s operational sound level.
- Directional air foil vane factory set to facilitate deflection of air stream +/-20 degrees.
- Includes control panel.
Recommended Controls
- Variable Speed Dial
- Thermostat
- Magnetic Door Switch for activation
- Time Delay Relay
- Potentiometer to control motor speed
360 View
Cost Savings Calculator
This tool will help you understand the cost savings you could expect based on the air curtain you select and your input on how and where it will be used.
Calculate NowAir Curtain Selector
This tool is designed to help you find the best air curtain
for your situation by asking a few basic questions.
ECC-E Downloads
Download All| ECC-E | Performance Table | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Electric Heat | |||||||||||
| MODEL | Nozzle Width (in.) |
Max. FPM at Nozzle |
Avg. FPM |
Max. CFM |
CFM at Nozzle |
Outlet Velocity Uniformity |
Number of Motors |
Motor HP |
Heater kW |
Temp. Rise (°F) |
Weight (lbs.) |
| ECC-1-36E | 36 | 4218 | 3695 | 2899 | 2541 | 95% | 1 | 3/4 | 10 | 13 | 182 |
| ECC-1-48E | 48 | 4218 | 2771 | 3867 | 2559 | 92% | 1 | 3/4 | 10 | 13 | 204 |
| ECC-1-60E | 60 | 4218 | 2218 | 4374 | 2528 | 91% | 1 | 3/4 | 10 | 13 | 230 |
| ECC-2-72E | 72.07 | 4218 | 3696 | 5803 | 5082 | 95% | 2 | 3/4 | 20 | 13 | 364 |
| ECC-2-84E | 84.07 | 4218 | 3169 | 6766 | 5063 | 93% | 2 | 3/4 | 20 | 13 | 382 |
| ECC-2-96E | 96.07 | 4218 | 2773 | 7732 | 5081 | 92% | 2 | 3/4 | 20 | 13 | 397 |
| ECC-2-108E | 108.07 | 4218 | 2472 | 8216 | 5090 | 95% | 2 | 3/4 | 20 | 13 | 417 |
| ECC-3-108E | 108.15 | 4218 | 3702 | 8702 | 7623 | 92% | 3 | 3/4 | 30 | 13 | 546 |
| ECC-3-120E | 120.15 | 4218 | 3174 | 9668 | 7614 | 95% | 3 | 3/4 | 30 | 13 | 570 |
| ECC-3-132E | 132.15 | 4218 | 2792 | 10177 | 7589 | 95% | 3 | 3/4 | 30 | 13 | 584 |
| ECC-4-144E | 144.22 | 4218 | 3696 | 11606 | 10164 | 95% | 4 | 3/4 | 40 | 13 | 728 |
| ECC-E | Mechanical Information Table | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| MODEL | Nozzle Width (in.) | Overall Width (in.) | Mounting Width (in.) | ||||||||
| ECC-1-36E | 36 | 39 | 37.5 | ||||||||
| ECC-1-48E | 48 | 51 | 49.5 | ||||||||
| ECC-1-60E | 60 | 63 | 61.5 | ||||||||
| ECC-2-72E | 72.07 | 75.07 | 73.57 | ||||||||
| ECC-2-84E | 84.07 | 87.07 | 85.57 | ||||||||
| ECC-2-96E | 96.07 | 99.07 | 97.57 | ||||||||
| ECC-2-108E | 108.07 | 111.07 | 109.57 | ||||||||
| ECC-3-108E | 108.15 | 111.15 | 109.65 | ||||||||
| ECC-3-120E | 120.15 | 123.15 | 121.65 | ||||||||
| ECC-3-132E | 132.15 | 135.15 | 133.65 | ||||||||
| ECC-4-144E | 144.22 | 147.22 | 145.72 | ||||||||
