ECE-E
Air Curtain

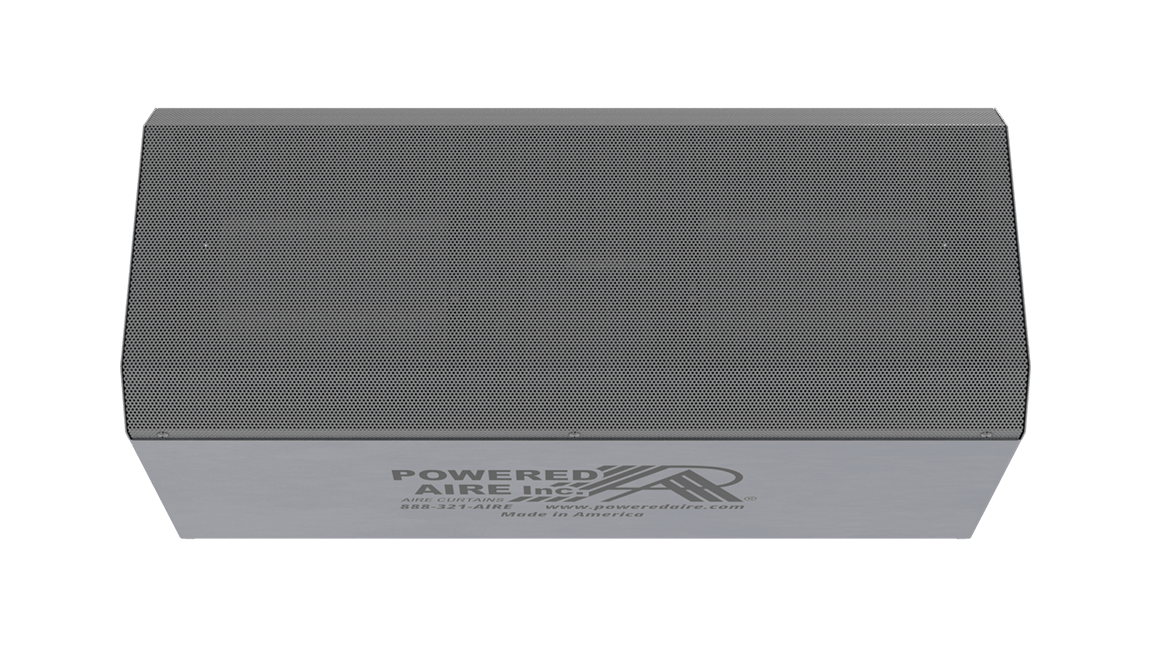

ECo Motor™ (ECE-E) Electrically Heated Air Curtain

Electric

Powered Aire’s ECo-Motor™ models feature electrically commutated (EC) motors that are significantly more energy efficient than traditional PSC motors. The motors are specifically designed for air curtain applications, with the time between motor activation and maximum speed less than 1 second.


Unit Sizing

Unit Width:
3' to 12'
Motor:
3/4 HP
Mount Type:
Exposed
Max Install Height:
14'
Wind Stoppage Ability:
= 17.3mph

Key Design Features

  • Outer cabinet constructed of 18-gauge 304 stainless steel with #3 finish
  • 3/4 HP EC (Electronically Commutated) direct-drive motor(s) with 2:1 speed turndown ratio and instantaneous startup
  • High-efficiency discharge plenum with adjustable air foil vane (+/-20˚)
  • Factory mounted single-stage electric heaters
  • Single point power connection available (see electrical table)
  • Alternate heater kW available (consult factory)

Air Curtain Controls

  • Activation by 24V magnetic door switch
  • Toggle disconnect switch
  • SmartTouch controller
  • Filter (washable)

360 View

360 View | ECE-E - ECo Motor™ (ECE-E) Electrically Heated Air Curtain

Cost Savings Calculator

This tool will help you understand the cost savings you could expect based on the air curtain you select and your input on how and where it will be used.

Calculate Now

Air Curtain Selector

This tool is designed to help you find the best air curtain
for your situation by asking a few basic questions.

Begin
ECE-E Air Curtain | Performance Table
Electric Heat
MODELNozzle
Width (in.)
Max. FPM
at Nozzle
Avg.
FPM
Max.
CFM
CFM at
Nozzle
Outlet Velocity
Uniformity
Number
of Motors
Motor
HP
Heater
kW
Temp.
Rise (°F)
Weight
(lbs.)
ECE-1-36E36421836952899254195%1 3/4101395
ECE-1-42E42421831693384253293%1 3/41013102
ECE-1-48E48421827713867255992%1 3/41013109
ECE-1-60E60421822184374252891%1 3/41013121
ECE-2-60E60421833155050381294%2 3/41513155
ECE-2-72E72421836965803508295%2 3/42013177
ECE-2-84E84421831696766506393%2 3/42013195
ECE-2-96E96421827737732508192%2 3/42013210
ECE-3-108E108421837028702762395%3 3/43013255
ECE-3-120E118421831749668761494%3 3/43013284
ECE-3-132E1334218279210853758994%3 3/43013301
ECE-4-144E14542183696116061016495%4 3/44013354

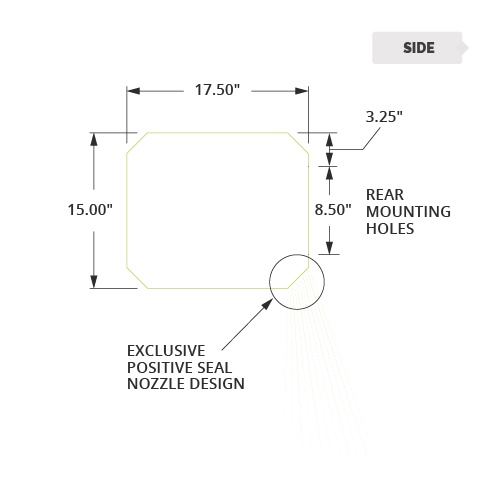

ECE-E Air Curtain | Mechanical Information Table
MODEL Nozzle Width (in.) Overall Width (in.) Mounting Width (in.)
ECE-1-36E 36 37 36.06
ECE-1-42E 42 43 42.06
ECE-1-48E 48 49 48.06
ECE-1-60E 60 61 60.06
ECE-2-60E 60 61 60.06
ECE-2-72E 72 73 72.06
ECE-2-84E 84 85 84.06
ECE-2-96E 96 97 96.06
ECE-3-108E 108 109 108.06
ECE-3-120E 118 119 118.06
ECE-3-132E 133 134 133.06
ECE-4-144E 145 146 145.06
