Ten Fourteen Door (TFD) Air Curtains

TFD

The TFD is typically used over medium sized dock doors, or openings in an industrial environment. TFD units are manufactured in single increments that can be provided up to 14 ft. wide. The TFD has top and bottom access panels to replace or service motors or blowers without lowering entire unit or bottom half of unit. All industrial units are direct drive, which avoids misalignment of couplers and outboard bearings and eliminates periodic belt replacement. The motor/blower plate comes out as an entire piece and all parts on the outside of the unit are constructed of stainless steel.
Heating
Unheated
Max Install Height
14'
Installation
Exposed
Incremental Widths
4' to 14'
View TFD Specs & Info

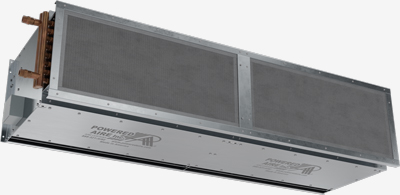

TFD-HW

The TFD is typically used over medium sized dock doors, or openings in an industrial environment and is equipped with a hot water coil on the intake. TFD units are manufactured in single increments that can be provided up to 14 ft. wide. The TFD has top and bottom access panels to replace or service motors or blowers without lowering entire unit or bottom half of unit. All industrial units are direct drive, which avoids misalignment of couplers and outboard bearings and eliminates periodic belt replacement. The motor/blower plate comes out as an entire piece and all parts on the outside of the unit are constructed of stainless steel.
Heating
Hot Water
Max Install Height
14'
Installation
Exposed
Incremental Widths
4' to 14'
View TFD-HW Specs & Info

TFD-ST

The TFD is typically used over medium sized dock doors, or openings in an industrial environment and is equipped with a steam coil on the intake. TFD units are manufactured in single increments that can be provided up to 14 ft. wide. The TFD has top and bottom access panels to replace or service motors or blowers without lowering entire unit or bottom half of unit. All industrial units are direct drive, which avoids misalignment of couplers and outboard bearings and eliminates periodic belt replacement. The motor/blower plate comes out as an entire piece and all parts on the outside of the unit are constructed of stainless steel.
Heating
Steam
Max Install Height
14'
Installation
Exposed
Incremental Widths
4' to 14'
View TFD-ST Specs & Info

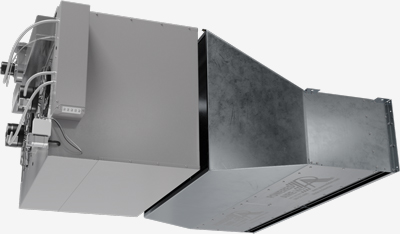

TFD-IG

The Indirect Gas Fired air curtain works like your typical home furnace. The flame heats a tube, the air flows over the tube and the heated air is discharged. This air curtain will provide up to a 35 ̊F temperature rise at the threshold. Not only will this model prevent cold air from infiltrating the opening, it will help keep door hinges from freezing, keep the floor dry, help keep employees comfortable and promote safety and productivity. Indirect gas heaters used are certified by the American Gas Association (AGA). Standard equipment includes power-vented flues, spark-ignited pilots, stainless steel duct transition and stainless steel air curtain housing.
Heating
Indirect Gas
Max Install Height
14'
Installation
Exposed
Incremental Widths
4' to 14'
View TFD-IG Specs & Info
