Ten-Fourteen Door (TFD-ST) Steam Heated Air Curtain

The TFD is typically used over medium sized dock doors, or openings in an industrial environment and is equipped with a steam coil on the intake. TFD units are manufactured in single increments that can be provided up to 14 ft. wide. The TFD has top and bottom access panels to replace or service motors or blowers without lowering entire unit or bottom half of unit. All industrial units are direct drive, which avoids misalignment of couplers and outboard bearings and eliminates periodic belt replacement. The motor/blower plate comes out as an entire piece and all parts on the outside of the unit are constructed of stainless steel.

Get Unit Specs

TFD-ST - Ten-Fourteen Door (TFD-ST) Steam Heated Air Curtain

Unit Sizing

Unit Width:

4' to 14'

Motor:

1.5 HP

Mount Type:

Exposed

Max Install Height:

14'

Wind Stoppage Ability:

= 18.2mph

Key Design Features

Outer cabinet constructed of 18-gauge 304 stainless steel with #3 finish
1.5 HP TEAO (Totally Enclosed Air Over) direct-drive single-speed motor(s)
High-efficiency discharge plenum with adjustable air foil vane (+/-20˚)
Top and bottom access panels for servicing and removal of motor-blower assembly
NEMA 12 control panel
Coil made to AHRI Standard 410
Hot water coil comprised of galvanized steel casing, 5/8" copper tube, aluminum fins, and same end supply/return connections
Leak tested at 450 psi
Single length hot water coils up to 14 ft
Single length steam coils up to 10 ft
Custom coil selections available (consult factory)

Air Curtain Controls

Activation by 24V magnetic door switch
Toggle disconnect switch
Hand/Off/Auto selector switch
Heat On/Off selector switch
Digital thermostat
Hot water or steam control valve with actuator

360 View

Cost Savings Calculator

This tool will help you understand the cost savings you could expect based on the air curtain you select and your input on how and where it will be used.

Calculate Now

Air Curtain Selector

This tool is designed to help you find the best air curtain
for your situation by asking a few basic questions.

Begin

TFD-ST Air Curtain Downloads

Download All

Individual Files

TFD-ST Air Curtain \| Performance Table
											Steam
MODEL	Nozzle Width (in)	Max. FPM at Nozzle	Avg. Outlet Velocity FPM	CFM at Nozzle	Outlet Velocity Uniformity	Power Rating (kW)	Number of Motors	Motor HP	Sound Levels (dBA)*	Sound Power [LWA] (dBA)	mbtu/Hour	Temp. Rise (˚F)	Weight (lbs)
TFD-1-36ST	36	4500	3108	2331	92.0%	1.2	1	1.5	73	87	90	36	165
TFD-1-48ST	48	4500	3565	2565	94.0%	1.3	1	1.5	76	90	95	34	182
TFD-1-60ST	60	4500	2146	2682	73.0%	1.3	1	1.5	69	82	101	35	165
TFD-2-72ST	72	4500	3108	4662	92.0%	2.4	2	1.5	76	90	179	36	335
TFD-2-84ST	84	4500	2798	4896	92.0%	2.6	2	1.5	79	93	187	35	346
TFD-2-96ST	96	4500	2565	5130	94.0%	2.6	2	1.5	79	93	192	35	360
TFD-2-108ST	108	4500	2332	5247	73.0%	2.6	2	1.5	79	93	205	36	382
TFD-3-108ST	108	4500	3108	6993	92.0%	3.6	3	1.5	77	92	266	35	500
TFD-3-120ST	120	4500	2891	7227	92.0%	3.7	3	1.5	80	95	268	34	516
TFD-3-132ST	132	4500	2713	7461	92.0%	3.8	3	1.5	80	95	**		526
TFD-4-144ST	144	4500	3108	9324	92.0%	4.8	4	1.5	79	95	**		665
TFD-4-156ST	156	4500	2941	9558	92.0%	4.9	4	1.5	82	96	**		681
TFD-4-168ST	168	4500	2798	9792	92.0%	5.0	4	1.5	82	96	**		692
*Calculation based on spherical free field at 5 ft.
**Contact factory for availability

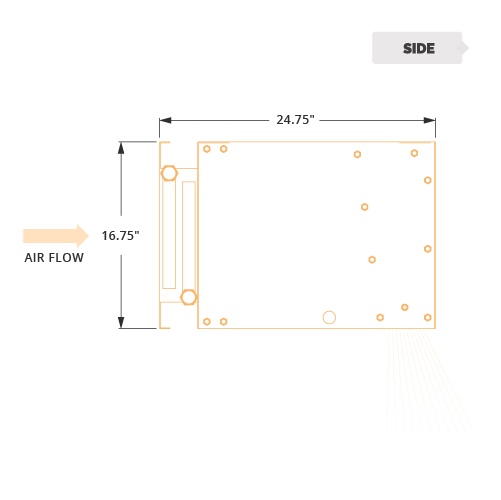

TFD-ST Air Curtain \| Mechanical Information Table
MODEL	Overall Width (in.)	Nozzle Width (in.)	Mounting Width Rear and Top (in.)
TFD-1-36	39	36	37.5
TFD-1-48	51	48	49.5
TFD-1-60	63	60	61.5
TFD-2-72	75.07	72.07	73.57
TFD-2-84	87.07	84.07	85.57
TFD-2-96	99.07	96.07	97.57
TFD-2-108	111.07	108.07	109.57
TFD-3-108	111.15	108.15	109.65
TFD-3-120	123.15	120.15	121.65
TFD-3-132	135.15	132.15	133.65
TFD-4-144	147.22	144.22	145.72
TFD-4-156	159.22	156.22	157.72
TFD-4-168	171.22	168.22	169.72
