At a Glance
Single Incremental Widths
3' to 12'
MAX Installation Height
Heavy Duty Motors
Key Design Features
- 18 gauge 304 stainless steel in a number three finish.
- Heavy duty 1⁄2 HP motors. 1075 rpm each. 50/60 cycle. Dual speed.
- Galvanized fans.
- Air intake screen is perforated stainless steel with mill grain finish.
- Top and bottom access panels
- ½ hp dual speed motor(s)
- High efficiency discharge plenum ensures that air being discharged fills the entire width and height of the opening. This also lowers the unit’s operational sound level.

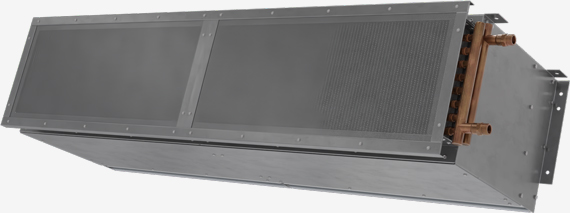

- Steam or hot water coil mounted to intake of air curtain. Coil consists of 5/8 in. O.D. copper tubes and aluminum fins. Coils certified to ARI standard 410.
- OFF / LOW / HIGH switch
- Magnetic door switch for activation
- Built in time delay relay
|CHS-2-108ST | Performance Table|
|MODEL||Nozzle Width (in.)||Max. FPM |
|Avg. FPM||Max. CFM||CFM |
|Outlet Velocity Uniformity||Number of Motors||Motor HP||Steam||Weight|
|Temp. Rise (˚F)|
