Chameleon Vestibule Exception (CHA-E) In-Ceiling Electrically Heated Air Curtain

The electrically heated CHA-E air curtain mounts discretely into the ceiling to create a heated barrier of air that prevents cold outside air from entering a building. The CHA-E can be used as an exception for vestibules as it has been tested in accordance with the ANSI/AMCA 220 standard. The CHA-E utilizes a smaller, which requires less ceiling space for installation and operation. Maintenance of the CHA-E can be made via a hinged bottom panel and the controls are mounted to the motor plate, eliminating the need for an external control box. The CHA-E combines performance and aesthetics into a discreet, in-ceiling mounted air curtain.

Get Unit Specs

CHA-E - Chameleon Vestibule Exception (CHA-E) In-Ceiling Electrically Heated Air Curtain

Unit Sizing

Unit Width:

3' to 12'

Motor:

3/4 HP

Mount Type:

Above Ceiling

Max Install Height:

14'

Wind Stoppage Ability:

= 17.3mph

Thumbnail View 1 | CHA-E - Chameleon Vestibule Exception (CHA-E) In-Ceiling Electrically Heated Air Curtain

Thumbnail View 2 | CHA-E - Chameleon Vestibule Exception (CHA-E) In-Ceiling Electrically Heated Air Curtain

Thumbnail View 3 | CHA-E - Chameleon Vestibule Exception (CHA-E) In-Ceiling Electrically Heated Air Curtain

Thumbnail View 4 | CHA-E - Chameleon Vestibule Exception (CHA-E) In-Ceiling Electrically Heated Air Curtain

Key Design Features

Meets ASHRAE 90.1 and IECC requirements for vestibule exception
AMCA tested performance
White decorative intake grille with hinged access panel (consult factory for custom finishes)
3/4 HP ODP (Open Drip Proof) direct-drive dual-speed motor(s)
High-efficiency discharge plenum with adjustable air foil vane (+/-20˚)
Factory mounted single-stage electric heaters
Single point power connection available (see electrical table)
Alternate heater kW available (consult factory)

Air Curtain Controls

Activation by 24V magnetic door switch
Toggle disconnect switch
SmartTouch controller
Filter (washable)

360 View

Cost Savings Calculator

This tool will help you understand the cost savings you could expect based on the air curtain you select and your input on how and where it will be used.

Calculate Now

Air Curtain Selector

This tool is designed to help you find the best air curtain
for your situation by asking a few basic questions.

Begin

CHA-E Air Curtain Downloads

Download All

Individual Files

CHA-E Air Curtain \| Performance Table
MODEL	Nozzle Width (in.)	Average Outlet Velocity (FPM)	Air Flow Rate (CFM)	Outlet Velocity Uniformity	Power Rating (kW)	Number of Motors	Motor HP	Heater kW	Temp. Rise (°F)	Weight (lbs.)
CHA-1-36E	36	2443	1197	86%	0.59	1	3/4	10	26.7	182
CHA-1-48E	48	2338	1543	79%	0.7	1	3/4	10	20.7	204
CHA-1-60E	60	1923	1596	82%	0.73	1	3/4	10	20	230
CHA-2-72E	72	2443	2394	86%	1.18	2	3/4	20	26.7	364
CHA-2-84E	84	2383	2740	79%	1.29	2	3/4	20	23.3	382
CHA-2-96E	96	2338	3086	79%	1.4	2	3/4	20	20.7	397
CHA-2-108E	108	2107	3139	79%	1.43	2	3/4	20	20.3	417
CHA-3-108E	108	2443	3591	86%	1.77	3	3/4	30	26.7	546
CHA-3-120E	120	2401	3937	79%	1.88	3	3/4	30	24.3	570
CHA-3-132E	132	2367	4283	79%	1.99	3	3/4	30	22.4	584
CHA-4-144E	144	2443	4788	86%	2.36	4	3/4	40	26.7	728

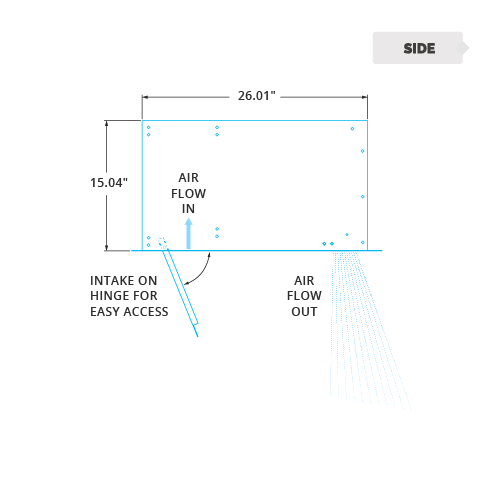

CHA-E Air Curtain \| Mechanical Information Table
MODEL	Overall Width (in.)	Nozzle Width (in.)	Mounting Width (in.)
CHA-1-36E	39	36	37.5
CHA-1-48E	51	48	49.5
CHA-1-60E	63	60	61.5
CHA-2-72E	75.07	72.07	73.57
CHA-2-84E	87.07	84.07	85.57
CHA-2-96E	99.07	96.07	97.57
CHA-2-108E	111.07	108.07	109.57
CHA-3-108E	111.15	108.15	109.65
CHA-3-120E	123.15	120.15	121.65
CHA-3-132E	135.15	132.15	133.65
CHA-4-144E	147.22	144.22	145.72
