CLD-E

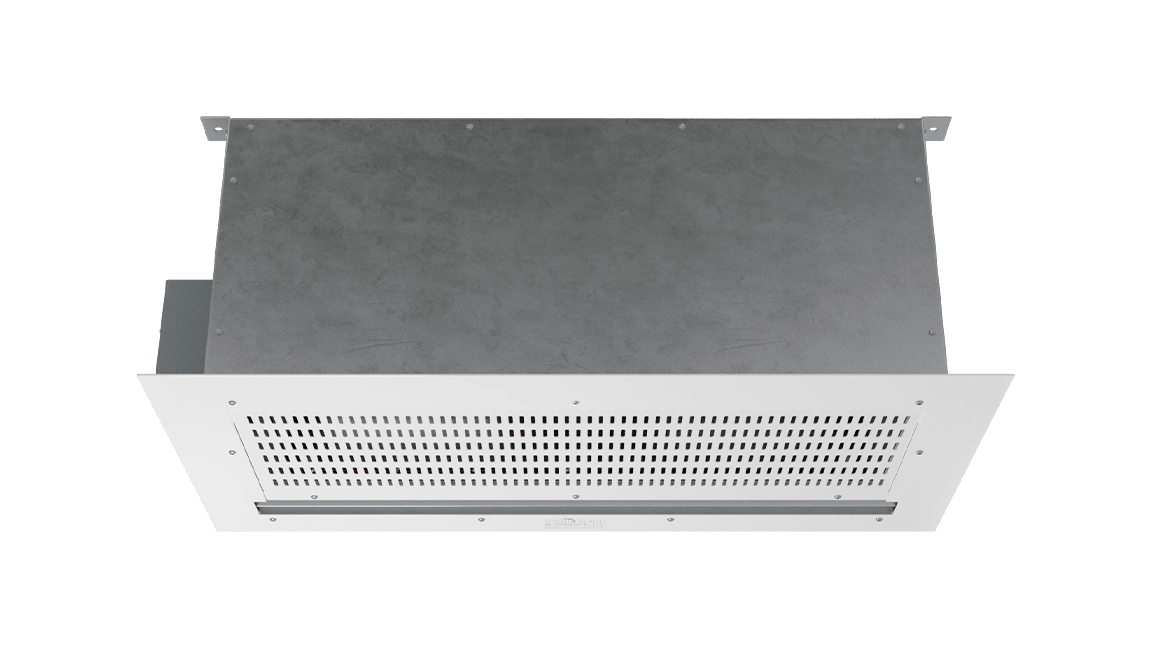

Chameleon Light Duty (CLD-E) Above Ceiling Electrically Heated Air Curtains

Electric

The Chameleon Light Duty (CLD-E) electrically heated air curtain is specifically designed to be dropped into the ceiling above customer entry ways where a standard air curtain cannot be exposed. Like the CED, the Chameleon also has the least objectionable airflow.

Full Size View 1 | CLD-E - Chameleon Light Duty (CLD-E) Above Ceiling Electrically Heated Air Curtains
Thumbnail View 1 | CLD-E - Chameleon Light Duty (CLD-E) Above Ceiling Electrically Heated Air Curtains Thumbnail View 2 | CLD-E - Chameleon Light Duty (CLD-E) Above Ceiling Electrically Heated Air Curtains Thumbnail View 3 | CLD-E - Chameleon Light Duty (CLD-E) Above Ceiling Electrically Heated Air Curtains Thumbnail View 4 | CLD-E - Chameleon Light Duty (CLD-E) Above Ceiling Electrically Heated Air Curtains

At a Glance

Single Incremental Widths

3' to 12'

MAX Installation Height

11'

Heavy Duty Motors

1/2 HP

Key Design Features

  • 18 gauge galvanized steel case installed above the ceiling.
  • Heavy duty ½ HP motors. 1075 rpm each. 50/60 cycle. Dual speed.
  • Galvanized fans.
  • White powder coated decorative intake grille
  • High efficiency discharge plenum ensures that air being discharged fills the entire width and height of the opening. This also lowers the unit’s operational sound level.
  • Directional air foil vane factory set to facilitate deflection of air stream +/-20 degrees.
  • Includes control panel

Recommended Controls

  • OFF / LOW / HIGH switch
  • Thermostat
  • Magnetic door switch for activation
  • Time delay relay

360 View

360 View | CLD-E - Chameleon Light Duty (CLD-E) Above Ceiling Electrically Heated Air Curtains

Cost Savings Calculator

This tool will help you understand the cost savings you could expect based on the air curtain you select and your input on how and where it will be used.

Calculate Now

Air Curtain Selector

This tool is designed to help you find the best air curtain
for your situation by asking a few basic questions.

Begin

CLD-E Downloads

Download All

Individual Files

CLD-E | Performance Table
Electric Heat
MODELNozzle Width (in.)Max. FPM at NozzleAvg. FPMMax. CFMCFM at NozzleOutlet Velocity UniformityNumber of MotorsMotor HPHeater kWTemp. Rise (°F)Weight (lbs.)
CLD-1-36E36H 1904
L 1748		H 1570
L 1408		H 1309
L 1202		H 1005
L 961		95%11/210H 29
L 33		174
CLD-1-48E48H 1904
L 1748		H 1178
L 1056		H 1745
L 1603		H 1094
L 983		92%11/210H 29
L 33		196
CLD-1-60E60H 1904
L 1748		H 942
L 845		H 1790
L 1650		H 1084
L 977		91%11/210H 29
L 33		224
CLD-2-72E72H 1904
L 1748		H 1570
L 1408		H 2618
L 2404		H 2159
L 1936		95%21/220H 29
L 33		348
CLD-2-84E84H 1904
L 1748		H 1346
L 1207		H 3054
L 2804		H 2093
L 1896		93%21/220H 29
L 33		365
CLD-2-96E96H 1904
L 1748		H 1178
L 1056		H 3490
L 3204		H 2170
L 1942		92%21/220H 29
L 33		379
CLD-2-108E108H 1904
L 1748		H 1058
L 945		H 3710
L 3403		H 2182
L 1949		95%21/220H 29
L 33		402
CLD-3-108E108H 1904
L 1748		H 1570
L 1408		H 3928
L 3606		H 3239
L 2905		92%31/230H 29
L 33		522
CLD-3-120E120H 1904
L 1748		H 1421
L 1274		H 4364
L 4006		H 3230
L 2900		95%31/230H 29
L 33		547
CLD-3-132E132H 1904
L 1748		H 1178
L 1056		H 4950
L 4658		H 3247
L 2912		95%31/230H 29
L 33		559
CLD-4-144E144H 1904
L 1748		H 1570
L 1408		H 5236
L 4808		H 4318
L 3872		95%41/240H 29
L 33		696

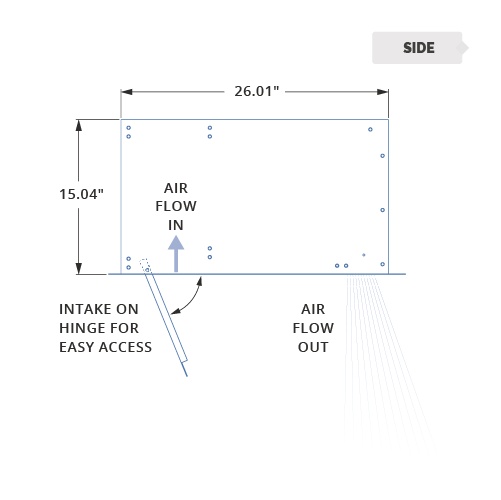

CLD-E | Mechanical Information Table
MODELOverall Width
(in.)		Nozzle Width
(in.)		Mounting Width
(in.)
CLD-1-36E393637.5
CLD-1-48E514849.5
CLD-1-60E636061.5
CLD-2-72E75.0772.0773.57
CLD-2-84E87.0784.0785.57
CLD-2-96E99.0796.0797.57
CLD-2-108E111.07108.07109.57
CLD-3-108E111.15108.15109.65
CLD-3-120E123.15120.15121.65
CLD-3-132E135.15132.15133.65
CLD-4-144E147.22144.22145.72
