Chameleon Light Duty (CLD-HW) Above Ceiling Hot Water Heated Air Curtains

Hot Water

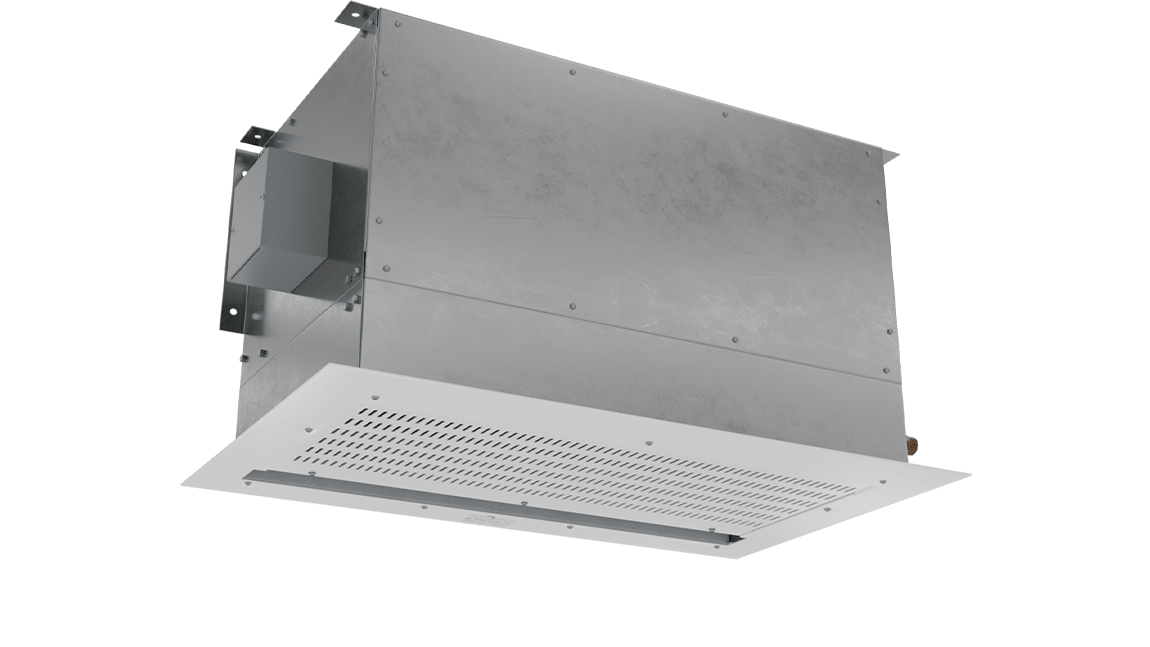

The Chameleon Light Duty (CLD-HW) hot water heated air curtain is specifically designed to be dropped into the ceiling above customer entry ways where a standard air curtain cannot be exposed. Like the CED, the Chameleon also has the least objectionable airflow.

At a Glance

Single Incremental Widths

3' to 12'

MAX Installation Height

11'

Heavy Duty Motors

1/2 HP

Key Design Features

  • 18 gauge galvanized steel case installed above the ceiling.
  • Heavy duty 1⁄2 HP motors. 1075 rpm each. 50/60 cycle. Dual speed.
  • Galvanized fans.
  • White powder coated decorative intake screen
  • High efficiency discharge plenum ensures that air being discharged fills the entire width and height of the opening. This also lowers the unit’s operational sound level.
  • Directional air foil vane factory set to facilitate deflection of air stream +/-20 degrees.
  • Made-to-order steam or hot water coil mounted to intake of air curtain. Coil consists of 5/8 in. O.D. copper tubes and aluminum fins. Coils certified to ARI standard 410
  • Includes control panel

Recommended Controls

  • OFF / LOW / HIGH switch
  • Magnetic door switch for activation
  • Time delay relay

360 View

360 View | CLD-HW - Chameleon Light Duty (CLD-HW) Above Ceiling Hot Water Heated Air Curtains

Cost Savings Calculator

This tool will help you understand the cost savings you could expect based on the air curtain you select and your input on how and where it will be used.

Calculate Now

Air Curtain Selector

This tool is designed to help you find the best air curtain
for your situation by asking a few basic questions.

Begin
CLD-HW | Performance Table
Hot Water
MODELNozzle
Width (in.)
Max. FPM
at Nozzle
Avg.
FPM
Max.
CFM
CFM at
Nozzle
Outlet Velocity
Uniformity
Number of
Motors
Motor
HP
mbtu / HourTemp. Rise (°F)Weight
(lbs.)
CLD-1-36HW36H 1904
L 1748
H 1570
L 1408
H 1309
L 1202
H 1005
L 961
95%11/245H 38
L 43
196
CLD-1-48HW48H 1904
L 1748
H 1178
L 1056
H 1745
L 1603
H 1094
L 983
92%11/247H 40
L 45
214
CLD-1-60HW60H 1904
L 1748
H 942
L 845
H 1790
L 1650
H 1084
L 977
91%11/245H 38
L 43
245
CLD-2-72HW72H 1904
L 1748
H 1570
L 1408
H 2618
L 2404
H 2159
L 1936
95%21/282H 35
L 39
392
CLD-2-84HW84H 1904
L 1748
H 1346
L 1207
H 3054
L 2804
H 2093
L 1896
93%21/287H 37
L 41
405
CLD-2-96HW96H 1904
L 1748
H 1178
L 1056
H 3490
L 3204
H 2170
L 1942
92%21/287H 37
L 41
420
CLD-2-108HW108H 1904
L 1748
H 1058
L 945
H 3710
L 3403
H 2182
L 1949
95%21/285H 36
L 40
445
CLD-3-108HW108H 1904
L 1748
H 1570
L 1408
H 3928
L 3606
H 3239
L 2905
92%31/2127H 36
L 40
588
CLD-3-120HW120H 1904
L 1748
H 1421
L 1274
H 4364
L 4006
H 3230
L 2900
95%31/2131H 37
L 41
605
CLD-3-132HW132H 1904
L 1748
H 1178
L 1056
H 4950
L 4658
H 3247
L 2912
95%31/2138H 39
L 44
620
CLD-4-144HW144H 1904
L 1748
H 1570
L 1408
H 5236
L 4808
H 4318
L 3872
95%41/2174H 37
L 41
784

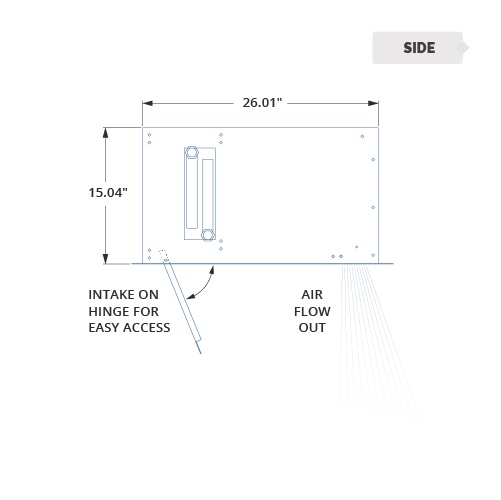

CLD-HW | Mechanical Information Table
MODELOverall Width
(in.)
Nozzle Width
(in.)
Mounting Width
(in.)
CLD-1-36HW393637.5
CLD-1-48HW514849.5
CLD-1-60HW636061.5
CLD-2-72HW75.0772.0773.57
CLD-2-84HW87.0784.0785.57
CLD-2-96HW99.0796.0797.57
CLD-2-108HW111.07108.07109.57
CLD-3-108HW111.15108.15109.65
CLD-3-120HW123.15120.15121.65
CLD-3-132HW135.15132.15133.65
CLD-4-144HW147.22144.22145.72
