MP-E
Air Curtain

Mini-Power (MP) Low Profile Electrically Heated Air Curtain

Electric

The heated version of Powered Aire’s Mini Power (MP) unit offers the same versatility found in the unheated version but also provides a heating component to improve comfort for workers and customers. The unit is also capable of being used as a secondary heating device. The heated MP can be used in areas with limited overhead space due to its compact design. The heated MP can now be used as an exception to vestibules, having met all criteria per various codes. It has also been tested in accordance with the ANSI/AMCA 220 standard.


Unit Sizing

Unit Width:
30" to 10'
Motor:
1/5 HP
Mount Type:
Exposed
Max Install Height:
10'
Wind Stoppage Ability:
= 15.0mph

Key Design Features

  • Meets ASHRAE 90.1 and IECC requirements for vestibule exception
  • AMCA tested performance
  • Low-profile outer cabinet constructed of 18-gauge 304 stainless steel with #3 finish
  • 1/5 HP ODP (Open Drip Proof) direct-drive variable-speed motor(s)
  • Adjustable air foil vane (+/-20˚)
  • Factory mounted single-stage electric heaters
  • Single point power connection available (see electrical table)
  • Alternate heater kW available (consult factory)

Air Curtain Controls

  • Activation by 24V magnetic door switch
  • SmartTouch controller
  • Filter (washable)

360 View

360 View | MP-E - Mini-Power (MP) Low Profile Electrically Heated Air Curtain

Cost Savings Calculator

This tool will help you understand the cost savings you could expect based on the air curtain you select and your input on how and where it will be used.

Calculate Now

Air Curtain Selector

This tool is designed to help you find the best air curtain
for your situation by asking a few basic questions.

Begin
MP-E Air Curtain | Performance Table
Electric Heat
MODEL Nozzle Width (in.) Max. FPM at Nozzle Avg. Outlet Velocity FPM Airflow Rate (CFM) Outlet Velocity Uniformity Power Rating (kW) Number of Motors Motor HP Heater kW Temp. Rise (˚F) Weight (lbs)
MP-1-30E 29 3050 1243 746 66% 0.2 1 1/5 8 34 47
MP-1-36E 35 3262 1316 961 87% 0.27 1 1/5 8 27 59
MP-1-42E 41 3269 1294 1100 75% 0.29 1 1/5 8 23 69
MP-1-48E 48 3256 1386 1344 85% 0.33 1 1/5 16 38 77
MP-1-60E 59 3218 1406 1715 83% 0.54 1 1/5 16 30 91
MP-2-72E 71 3262 1316 1922 87% 0.54 2 1/5 16 27 102
MP-2-84E 83 3269 1294 2200 75% 0.58 2 1/5 24 35 115
MP-2-96E 95 3256 1386 2688 85% 0.66 2 1/5 32 38 123
MP-2-108E 107 3242 1397 3059 83% 0.87 2 1/5 32 33 139
MP-2-120E 117 3218 1406 3430 83% 1.08 2 1/5 32 30 152

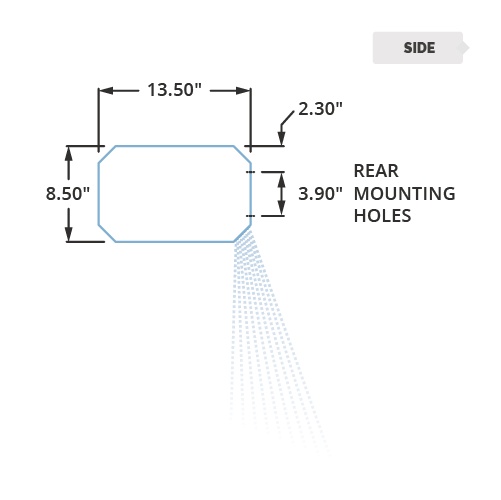

MP-E Air Curtain | Mechanical Information Table
MODELOverall Width
(in.)
Mounting Width
(in.)
Nozzle Width
(in.)
MP-1-30E313029
MP-1-36E373635
MP-1-42E434241
MP-1-48E494847
MP-1-60E616059
MP-2-72E737271
MP-2-84E858483
MP-2-96E979695
MP-2-108E109108107
MP-2-120E119118117
