CHS-ST
Air Curtain

Customer Entrance Door (CHS-ST) Steam Heated Air Curtain

Steam

CHS-ST steam heated air curtains prevent the infiltration of cold, outside air from entering through retail and customer entry front doors. For high-traffic areas, the constant influx of cold air can create unpleasant conditions for employees and customers, while also adding to increased energy costs. The CHS-ST uses steam-generated heat to create a more comfortable internal environment, which helps lessen the strain on an HVAC system, reducing overall costs. The CHS-ST has a gentle airflow and its unique plenum design make it one of the quietest air curtains in the industry.


Unit Sizing

Unit Widths:
from 3' to 12'
Motors:
1/2 HP
Mount Type:
Exposed
Max Install Height:
11'
Wind Stoppage Ability:
= 13.7mph

Key Design Features

  • Outer cabinet constructed of 18-gauge 304 stainless steel with #3 finish
  • 1/2 HP ODP (Open Drip Proof) direct-drive dual-speed motor(s)
  • High-efficiency discharge plenum with adjustable air foil vane (+/-20˚)
  • Top and bottom access panels for servicing and removal of motor-blower assembly
  • NEMA 12 control panel
  • Coil made to AHRI Standard 410
  • Hot water coil comprised of galvanized steel casing, 5/8" copper tube, aluminum fins, and same end supply/return connections
  • Leak tested at 450 psi
  • Single length hot water coils up to 14 ft
  • Single length steam coils up to 10 ft
  • Custom coil selections available (consult factory)

Recommended Air Curtain Controls

  • Activation by 24V magnetic door switch
  • Toggle disconnect switch
  • SmartTouch controller
  • Hot water or steam control valve with actuator
  • Filter (washable)

360 View

360 View | CHS-ST - Customer Entrance Door (CHS-ST) Steam Heated Air Curtain

Cost Savings Calculator

This tool will help you understand the cost savings you could expect based on the air curtain you select and your input on how and where it will be used.

Calculate Now

Air Curtain Selector

This tool is designed to help you find the best air curtain
for your situation by asking a few basic questions.

Begin
CHS-ST Air Curtain | Performance Table
Steam
MODEL Nozzle Width (in.) Max. FPM at Nozzle Avg. FPM CFM at Nozzle Outlet Velocity Uniformity Number of Motors Motor HP mbtu / Hour Temp. Rise (˚F) Weight (lbs)
CHS-1-36ST 36 5560 1205 892 88% 1 1/2 32 33 123
CHS-1-48ST 48 4628 1131 1108 89% 1 1/2 41 34 134
CHS-1-60ST 60 5096 998 1227 79% 1 1/2 49 36 170
CHS-2-72ST 72 5560 1205 1784 88% 2 1/2 65 34 240
CHS-2-84ST 84 5305 1209 2080 90% 2 1/2 76 34 271
CHS-2-96ST 96 4628 1131 2216 89% 2 1/2 84 35 295
CHS-3-108ST 108 5560 1205 2676 88% 3 1/2 98 34 355
CHS-3-120ST 120 5028 1176 2892 88% 3 1/2 107 34 396
CHS-3-132ST 132 4996 1111 3011 79% 3 1/2 115 35 459
CHS-4-144ST 144 5560 1205 2568 88% 4 1/2 131 34 480

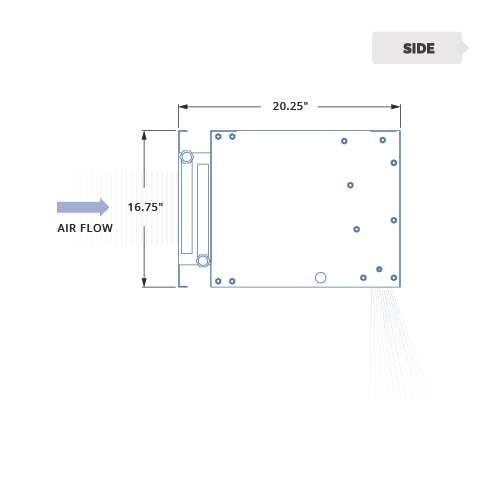

CHS-ST Air Curtain | Mechanical Information Table
MODEL Overall Width (in.) Nozzle Width (in.) Mounting Width (in.)
CHS-1-36ST 39 36 37.5
CHS-1-48ST 51 48 49.5
CHS-1-60ST 63 60 61.5
CHS-2-72ST 75.07 72.07 73.57
CHS-2-84ST 87.07 84.07 85.57
CHS-2-96ST 99.07 96.07 97.57
CHS-3-108ST 111.15 108.15 109.65
CHS-3-120ST 123.15 120.15 121.65
CHS-3-132ST 135.15 132.15 133.65
CHS-4-144ST 147.22 144.22 145.72
