ECo Motor™ (ECC-ST) Steam Heated Air Curtain

Steam

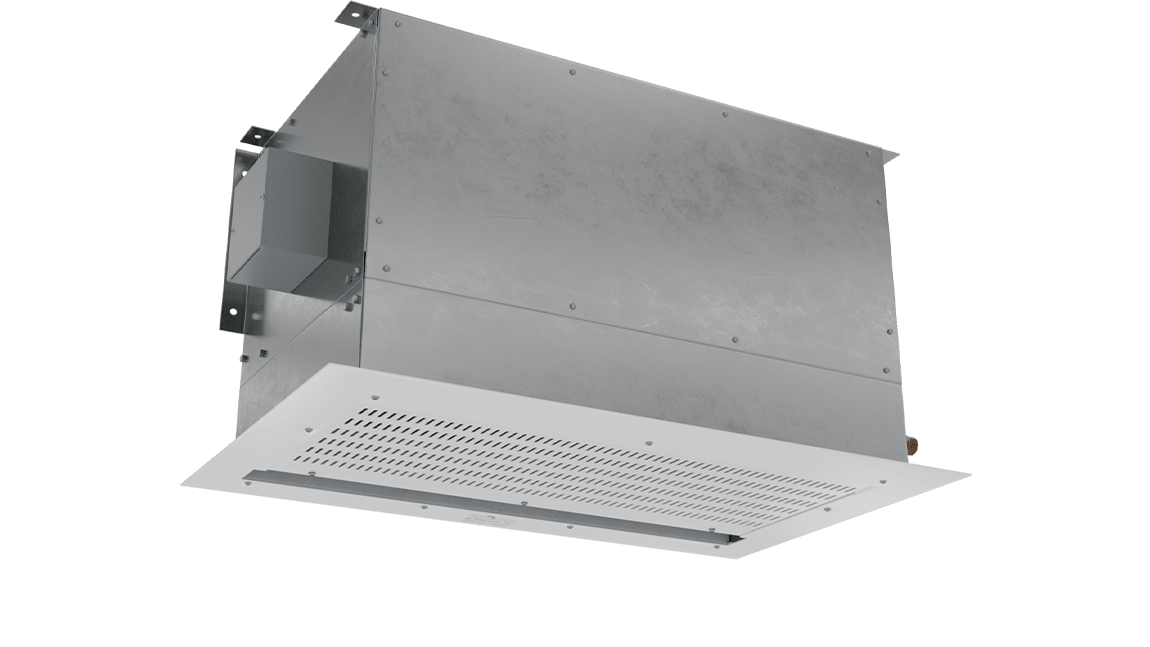

The ECC model air curtain is specifically designed to be dropped into the ceiling above customer entryways where a standard air curtain cannot be exposed.


Unit Sizing

Unit Width:
3' to 12'
Motor:
3/4 HP
Mount Type:
Above Ceiling
Max Install Height:
14'
Wind Stoppage Ability:
= 17.3mph

Key Design Features

  • White decorative intake grille with hinged access panel (consult factory for custom finishes)
  • 3/4 HP EC (Electronically Commutated) direct-drive motor(s) with 2:1 speed turndown ratio and instantaneous startup
  • High-efficiency discharge plenum with adjustable air foil vane (+/-20˚)
  • NEMA 12 control panel
  • Coil made to AHRI Standard 410
  • Hot water coil comprised of galvanized steel casing, 5/8" copper tube, aluminum fins, and same end supply/return connections
  • Leak tested at 450 psi
  • Custom coil selections available (consult factory)

Air Curtain Controls

  • Activation by 24V magnetic door switch
  • Toggle disconnect switch
  • SmartTouch controller
  • Filter (washable)

360 View

360 View | ECC-ST - ECo Motor™ (ECC-ST) Steam Heated Air Curtain

Cost Savings Calculator

This tool will help you understand the cost savings you could expect based on the air curtain you select and your input on how and where it will be used.

Calculate Now

Air Curtain Selector

This tool is designed to help you find the best air curtain
for your situation by asking a few basic questions.

Begin
ECC-ST Air Curtain | Performance Table
Steam
MODELNozzle
Width (in.)
Max. FPM
at Nozzle
Avg.
FPM
Max.
CFM
CFM at
Nozzle
Outlet Velocity
Uniformity
Number of
Motors
Motor
HP
mbtu / HourTemp. Rise (°F)Weight
(lbs.)
ECC-1-36ST36421836952899254195%13/410839206
ECC-1-48ST48421827713867255992%13/410839224
ECC-1-60ST60421822184374252891%13/411441255
ECC-2-72ST72.07421836965803508295%23/420236402
ECC-2-84ST84.07421831696766506393%23/421038415
ECC-2-96HST96.07421827737732508192%23/421539430
ECC-2-108ST108.07421824728216509095%23/419836455
ECC-3-108ST108.15421837028702762392%33/429235598
ECC-3-120ST120.15421831749668761495%33/430537615
ECC-3-132ST132.154218279210177758995%33/432639630
ECC-4-144ST144.2242183696116061016495%43/439035794
ECC-HW Air Curtain | Mechanical Information Table
MODEL Nozzle Width (in.) Overall Width (in.) Mounting Width (in.)
ECC-1-36ST 36 39 37.5
ECC-1-48ST 48 51 49.5
ECC-1-60ST 60 63 61.5
ECC-2-72ST 72.07 75.07 73.57
ECC-2-84ST 84.07 87.07 85.57
ECC-2-96ST 96.07 99.07 97.57
ECC-2-108ST 108.07 111.07 109.57
ECC-3-108ST 108.15 111.15 109.65
ECC-3-120ST 120.15 123.15 121.65
ECC-3-132ST 132.15 135.15 133.65
ECC-4-144ST 144.22 147.22 145.72
