Extra High Door (EHD-HW) Hot Water Heated Air Curtain

Hot Water

The Extra High Door (EHD) is used in industrial settings at large door openings. EHD units are manufactured in single increments that can be provided up to 30 ft. wide. The EHD has top and bottom access panels to replace or service motors or blowers without lowering entire unit or bottom half of unit. All industrial units are direct drive, which avoids misalignment of couplers and outboard bearings and eliminates periodic belt replacement. The motor/blower plate comes out as an entire piece and all parts on the outside of the unit are constructed of stainless steel.


Unit Sizing

Unit Width:
4' to 20'
Motor:
5 HP
Mount Type:
Exposed
Max Install Height:
22'
Wind Stoppage Ability:
= 21.3mph

Key Design Features

  • Outer cabinet constructed of 18-gauge 304 stainless steel with #3 finish
  • 5 HP TEAO (Totally Enclosed Air Over) direct-drive single-speed motor(s)
  • High-efficiency discharge plenum with adjustable air foil vane (+/-20˚)
  • Top and bottom access panels for servicing and removal of motor-blower assembly
  • NEMA 12 control panel with factory installed magnetic motor starter, overload relays, and control transformer
  • Coil made to AHRI Standard 410
  • Hot water coil comprised of galvanized steel casing, 5/8" copper tube, aluminum fins, and same end supply/return connections
  • Leak tested at 450 psi
  • Single length hot water coils up to 14 ft
  • Single length steam coils up to 10 ft
  • Custom coil selections available (consult factory)

Air Curtain Controls

  • Activation by 24V magnetic door switch
  • Toggle disconnect switch
  • Hand/Off/Auto selector switch
  • Heat On/Off selector switch
  • Digital thermostat
  • Hot water or steam control valve with actuator

360 View

360 View | EHD-HW - Extra High Door (EHD-HW) Hot Water Heated Air Curtain

Cost Savings Calculator

This tool will help you understand the cost savings you could expect based on the air curtain you select and your input on how and where it will be used.

Calculate Now

Air Curtain Selector

This tool is designed to help you find the best air curtain
for your situation by asking a few basic questions.

Begin
EHD-HW Air Curtain | Performance Table
Hot Water
MODELDoor Width
(ft.)
Nozzle
Width (in.)
Max. FPM
at Nozzle
Max. CFM
at Nozzle
Avg. FPM
at Nozzle
CFM at
Nozzle
Outlet Velocity
Uniformity
Number of
Motors
Motor
HP
mbtu / HourTemp. Rise
(°F)
Weight
(lbs.)
EHD-1-48HW448657269945499630595%1523434463
EHD-1-60HW560657299244358748094%1527835515
EHD-1-72HW6726572128545128925694%1533333560
EHD-2-96HW89665721592648421297795%2550936895
EHD-2-108HW910865721788846001376994%2555537955
EHD-2-120HW1012065721984843581575094%25603381008
EHD-2-132HW1113265722129148421612095%25650371030
EHD-2-144HW1214465722389148421916895%25733371065
EHD-3-156HW1315665722585046812025794%35839381335
EHD-3-168HW1416865722781245202282594%35872381390
EHD-3-180HW1518065722977243582300494%35881371450
EHD-3-192HW1619265723035548422333595%35916361477

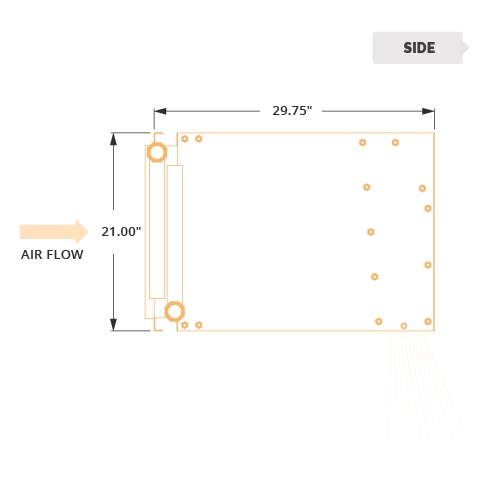

EHD-HW Air Curtain | Mechanical Information Table
MODELOverall
Width (in.)
Nozzle
Width (in.)
Mounting Width
Rear (in.)
Mounting Width
Top (in.)
EHD-1-48ST514849.547
EHD-1-60ST636061.559
EHD-1-72ST757273.571
EHD-2-96ST99.1296.1297.6295.12
EHD-2-108ST111.12108.12109.62107.12
EHD-2-120ST123.12120.12121.62119.12
EHD-2-132ST135.12132.12133.62131.12
EHD-2-144ST147.12144.12145.62143.12
EHD-3-156ST159.25156.25157.75155.25
EHD-3-168ST171.25168.25169.75167.25
EHD-3-180ST183.25180.25181.75179.25
EHD-3-192ST195.25192.25193.75191.25
