EHD-IG
Air Curtain

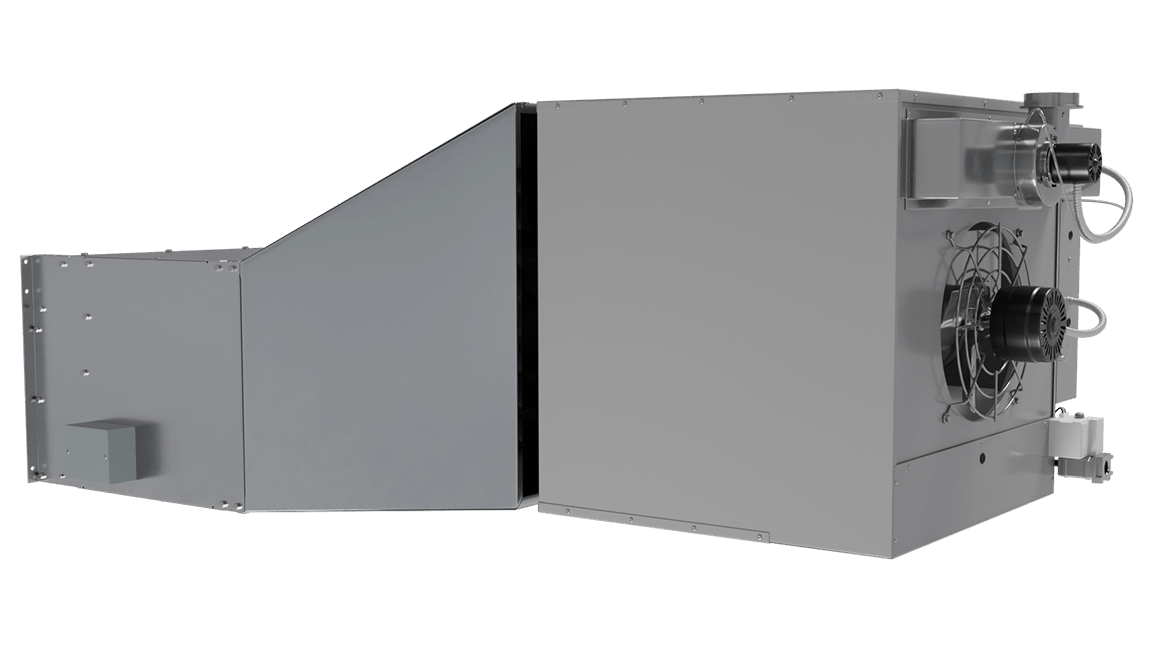

Extra High Door (EHD-IG) Indirect Gas Heated Air Curtain

Indirect Gas

The Indirect Gas Fired air curtain works like your typical home furnace. The flame heats a tube, the air flows over the tube and the heated air is discharged. This air curtain will provide up to a 35 ̊F temperature rise at the threshold. Not only will this model prevent cold air from infiltrating the opening, it will help keep door hinges from freezing, keep the floor dry, help keep employees comfortable and promote safety and productivity.

Indirect gas heaters used are certified by the American Gas Association (AGA). Standard equipment includes power-vented flues, spark-ignited pilots, stainless steel duct transition and stainless steel air curtain housing .


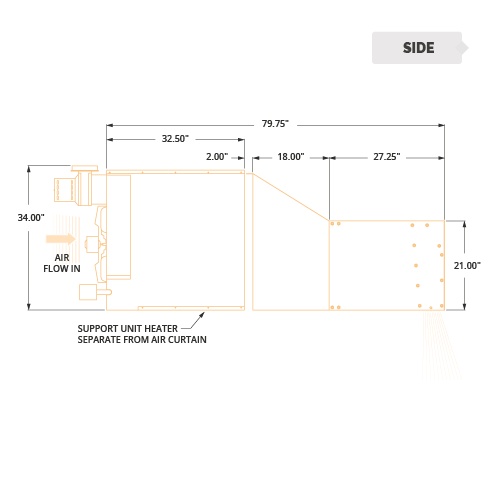

Unit Sizing

Unit Widths:
from 4' to 20'
Motors:
5 HP
Mount Type:
Exposed
Max Install Height:
22'
Wind Stoppage Ability:
= 21.3mph

Key Design Features

  • All weight bearing structural support is made of formed 11-gauge stainless steel and galvanized steel. Outer casing is constructed of 16-gauge stainless steel.
  • Heavy duty 5 HP Total Enclosed Aire Over (TEAO) motors at 1160 rpm each, 50/60 Hz cycle. Single speed.
  • Galvanized fans.
  • Access panels for inspection, cleaning or removal of motor blower assembly, without having to lower the unit.
  • High efficiency discharge plenum with directional air foil vane factory set to facilitate deflection of air stream +/- 20˚.
  • Factory matched indirect gas heater equipped with power exhaust, direct spark ignition, electronic flame supervision and gas pressure switches.
  • Tubular heat exchangers constructed of aluminized steel. Optional stainless steel heat exchangers are available upon request.
  • Includes NEMA 12 control panel with magnetic motor starter, overload relays and control transformer.

Recommended Air Curtain Controls

  • Panel mounted HAND / OFF / AUTO switch
  • Magnetic door switch for activation
  • Thermostat

360 View

360 View | EHD-IG - Extra High Door (EHD-IG) Indirect Gas Heated Air Curtain

Cost Savings Calculator

This tool will help you understand the cost savings you could expect based on the air curtain you select and your input on how and where it will be used.

Calculate Now

Air Curtain Selector

This tool is designed to help you find the best air curtain
for your situation by asking a few basic questions.

Begin
EHD Air Curtain | Performance Table
MODELDoor
Width (ft.)
Nozzle
Width (in.)
Max.FPM
at Nozzle
Max. CFM
at Nozzle
Avg. FPM
at Nozzle
CFM at
Nozzle
Outlet Velocity
Uniformity
Number of
Motors
Motor
HP
Weight
(lbs.)
EHD-1-48448657269945499630595%15387
EHD-1-60560657299244358748094%15420
EHD-1-726726572128545128925694%15440
EHD-2-9689665721592648421297795%25748
EHD-2-108910865721788846001376994%25781
EHD-2-1201012065721984843581575094%25814
EHD-2-1321113265722129148421612095%25834
EHD-2-1441214465722389148421916895%25854
EHD-3-1561315665722585046812025794%351145
EHD-3-1681416865722781245202282594%351180
EHD-3-1801518065722977243582300494%351210
EHD-3-1921619265723035548422333595%351227
EHD-3-2041720465723111443582340094%351248
EHD-3-2161821665723185046002457095%351268
EHD-4-2281922865723773648422832994%451615
EHD-4-2402024065723969643582912095%451645
EHD-IG Air Curtain | Heating & Technical Information Table
MODEL Number of Heaters Input mbtu/hr per Heater Output Total mbtu/hr Temp. Rise (F) Weight (lbs)
EHD-1-48IG 200 1 160 24 670
EHD-1-60IG 250 1 200 25 700
EHD-1-72IG 250 1 200 20 730
EHD-2-96IG 400 1 320 23 1205
EHD-2-108IG 400 1 320 22 1295
EHD-2-120IG 250 2 400 24 1378
EHD-2-132IG 250 2 400 23 1598
EHD-2-144IG 250 2 400 19 1650
EHD-3-156IG 350 2 560 26 1950
EHD-3-168IG 400 2 640 26 2005
EHD-3-180IG 400 2 640 26 2065
EHD-3-192IG 400 2 640 25 2120
EHD-3-204IG 400 2 640 25 2225
EHD-3-216IG 400 2 640 24 2278
EHD-4-228IG 350 3 840 27 2796
EHD-4-240IG 350 3 840 27 2865
