CLD-2-108 Air Curtain

Chameleon Light Duty • 2 Motors • 108" Wide • Unheated

CLD-2-108 Air Curtain
CLD-2-108 Air Curtain | Intertek ETL Listed C US CLD-2-108 Air Curtain | Made in the USA

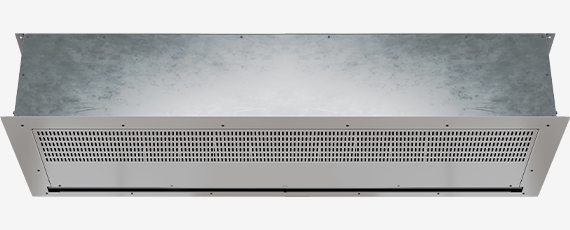

108” Chameleon Light Duty (CLD) unheated air curtain. Our Chameleon Series air doors preserve the design & appearance of entryways. The CLD blends into ceilings by mounting flush with a removeable grille. For openings up to 11 feet high. Standard color is white.

Heating
Unheated
Max Install Height
11'
Installation
Above Ceiling
Width
108"
CLD-2-108 | Peformance Table
MODELNozzle Width (in.)Max. FPM
at Nozzle
Avg. FPMMax. CFMCFM
at Nozzle
Outlet Velocity UniformityNumber of MotorsMotor HPWeight (lbs)
Un / Heated
CLD-2-108 108H 1904
L 1748
H 1058
L 945
H 3710
L 3403
H 2182
L 1949
95%21/2395 / 402
