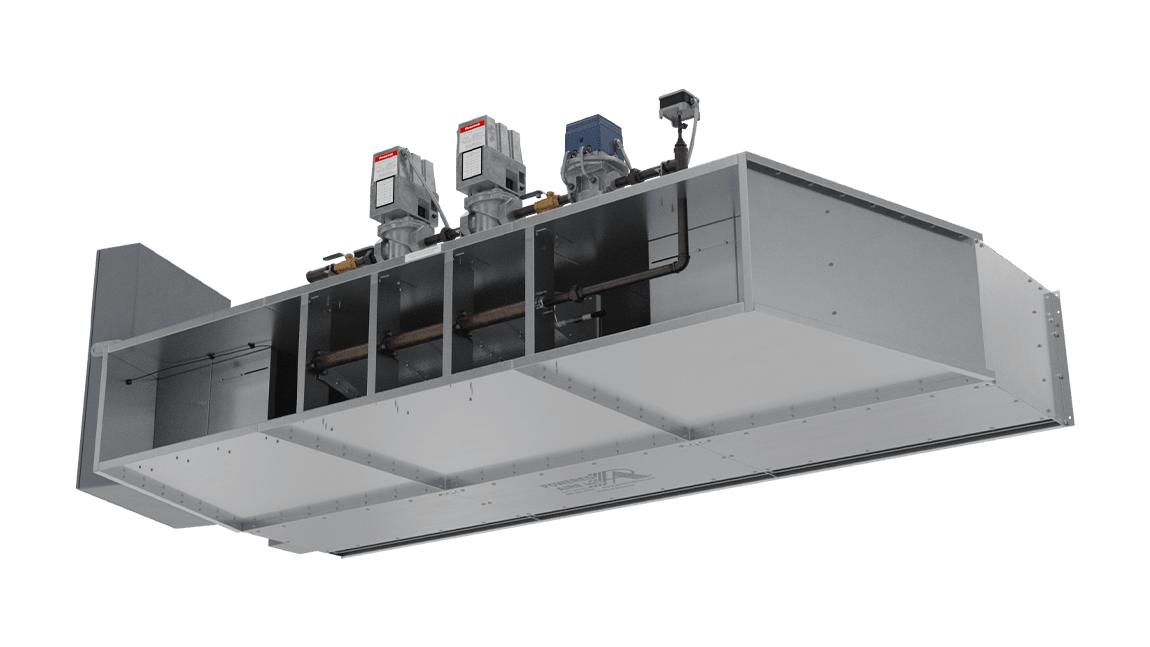

Extra High Door (EHD-DG) Direct Gas Heated Air Curtain

Direct Gas

The Direct Gas Fired model provides the most heat of any air curtain in the Powered Aire product line. With the Direct Fired air curtain, the intake air goes directly through the flame prior to being discharged. This air curtain will provide up to a 105 ̊F instant temperature rise at the threshold. Not only will this model prevent cold air from infiltrating the opening, it will help keep door hinges from freezing, keep the floor dry, help keep employees comfortable and promote safety and productivity. Certain codes apply; contact factory for details.


Unit Sizing

Unit Widths:
from 4' to 20'
Motors:
5 HP
Mount Type:
Exposed
Max Install Height:
22'
Wind Stoppage Ability:
= 21.3mph

Key Design Features

  • All weight bearing structural support is made of formed 11-gauge stainless steel and galvanized steel. Outer casing is constructed of 16-gauge stainless steel.
  • Heavy duty 5 HP Total Enclosed Aire Over (TEAO) motors at 1160 rpm each, 50/60 cycle. Single speed.
  • Galvanized fans.
  • Access panels for inspection, cleaning or removal of motor blower assembly, without having to lower the unit.
  • High efficiency discharge plenum with directional air foil vane factory set to facilitate deflection of air stream +/- 20˚.
  • Includes NEMA 12 control panel with magnetic motor starter, overload relays and control transformer.

Recommended Air Curtain Controls

  • Panel mounted HAND / OFF / AUTO switch
  • Magnetic door switch for activation
  • Thermostat

360 View

360 View | EHD-DG - Extra High Door (EHD-DG) Direct Gas Heated Air Curtain

Cost Savings Calculator

This tool will help you understand the cost savings you could expect based on the air curtain you select and your input on how and where it will be used.

Calculate Now

Air Curtain Selector

This tool is designed to help you find the best air curtain
for your situation by asking a few basic questions.

Begin
EHD-DG Air Curtain | Performance Table
MODEL Heater Output
mbtu / Hour
Max. Output Temp.
(˚F)
Weight
(lbs)
EHD-2-96DG 1042 105 1368
EHD-2-108DG 1077 105 1451
EHD-2-120DG 1111 105 1534
EHD-2-132DG 1194 105 1604
EHD-2-144DG 1277 105 1664
EHD-3-156DG 1598 105 2005
EHD-3-168DG 1681 105 2100
EHD-3-180DG 1715 105 2180
EHD-3-192DG 1798 105 2237
EHD-DG Air Curtain | Mechanical Table
MODEL Overall Width - A (in.) Mounting Width - B (in.) Intake Width - C (in.) Dimension - D (in.)
EHD-2-96DG 99.125 95.125 72.0625 70.25
EHD-2-108DG 111.125 107.125 72.0625 70.25
EHD-2-120DG 123.125 119.125 84.4375 70.25
EHD-2-132DG 135.125 131.125 84.4375 70.25
EHD-2-144DG 147.125 143.125 96.4375 70.25
EHD-3-156DG 159.25 155.25 96.4375 88.25
EHD-3-168DG 171.25 167.25 96.4375 88.25
EHD-3-180DG 183.25 179.25 107.8125 88.25
EHD-3-192DG 195.25 191.25 107.8125 94.25
