Twelve-Seventeen Door (TSD-IG) Indirect Gas Heated Air Curtain

Indirect Gas

The Indirect Gas Fired air curtain works like your typical home gas furnace. The flame heats a tube, the air flows over the tube and the heated air is discharged. This air curtain will provide up to a 35 ̊F temperature rise at the threshold. Not only will this model prevent cold air from infiltrating the opening, it will help keep door hinges from freezing, keep the floor dry, help keep employees comfortable and promote safety and productivity.

Get Unit Specs
TSD-IG - Twelve-Seventeen Door (TSD-IG) Indirect Gas Heated Air Curtain

Unit Sizing

Unit Width:
4' to 30'
Motor:
3 HP
Mount Type:
Exposed
Max Install Height:
17'
Wind Stoppage Ability:
= 19.8mph
Thumbnail View 1 | TSD-IG - Twelve-Seventeen Door (TSD-IG) Indirect Gas Heated Air Curtain
Thumbnail View 2 | TSD-IG - Twelve-Seventeen Door (TSD-IG) Indirect Gas Heated Air Curtain
Thumbnail View 3 | TSD-IG - Twelve-Seventeen Door (TSD-IG) Indirect Gas Heated Air Curtain
Thumbnail View 4 | TSD-IG - Twelve-Seventeen Door (TSD-IG) Indirect Gas Heated Air Curtain

Key Design Features

  • Outer cabinet constructed of 18-gauge 304 stainless steel with #3 finish
  • 3 HP TEAO (Totally Enclosed Air Over) direct-drive single-speed motor(s)
  • High-efficiency discharge plenum with adjustable air foil vane (+/-20˚)
  • Top and bottom access panels for servicing and removal of motor-blower assembly
  • NEMA 12 control panel with factory installed magnetic motor starter, overload relays, and control transformer
  • Factory mounted 18-gauge 304 stainless steel transition duct(s)
  • AGA/CGA labeled gas heater(s) with power exhaust, direct spark ignition, and tubular heat exchangers
  • Convertible open and closed combustion
  • Natural gas or propane fuel types
  • Standard single point power connection

Air Curtain Controls

  • Activation by 24V magnetic door switch
  • Toggle disconnect switch
  • Hand/Off/Auto selector switch
  • Heat On/Off selector switch
  • Digital thermostat

360 View

360 View | TSD-IG - Twelve-Seventeen Door (TSD-IG) Indirect Gas Heated Air Curtain

Cost Savings Calculator

This tool will help you understand the cost savings you could expect based on the air curtain you select and your input on how and where it will be used.

Calculate Now

Air Curtain Selector

This tool is designed to help you find the best air curtain
for your situation by asking a few basic questions.

Begin

TSD-IG Air Curtain Downloads

Download All

Individual Files

TSD Air Curtain | Performance Table
MODEL Door
Width (ft.)		 Nozzle
Width (in.)		 Max. FPM
at Nozzle		 Avg. Outlet
Velocity FPM		 CFM at
Nozzle		 Outlet Velocity
Uniformity		 Power
Rating (kW)		 Number of
Motors		 Motor
HP		 Weight
(lbs.)
TSD-1-48 4 48 6200 3881 5174 95.1% 3.0 1 3 342
TSD-1-60 5 60 5800 3006 4855 92% 2.1 1 3 380
TSD-1-72 6 72 5900 2891 5579 86.3% 2.5 1 3 400
TSD-2-96 8 96 6200 3881 10348 95.1% 6.0 2 3 681
TSD-2-108 9 108 6200 3444 10029 92% 5.1 2 3 719
TSD-2-120 10 120 5800 3006 9710 92% 4.2 2 3 757
TSD-2-132 11 132 5900 2949 10434 86.3% 4.6 2 3 777
TSD-2-144 12 144 5900 2891 11158 86.3% 5 2 3 797
TSD-3-144 12 144 6200 3881 15522 95.1% 9.0 3 3 1020
TSD-3-156 13 156 6200 3589 15203 92% 8.1 3 3 1058
TSD-3-168 14 168 6200 3298 14884 86.3% 8.5 3 3 1078
TSD-3-180 15 180 6200 3006 14565 86.3% 7.6 3 3 1116
TSD-3-192 16 192 6200 2929 15289 86.3% 8.0 3 3 1136
TSD-4-192 16 192 6200 3881 20696 95.1% 12.0 4 3 1359
TSD-3-204 17 204 5900 2929 16013 86.3% 7.1 3 3 1174
TSD-4-204 17 204 6200 3662 20377 92% 11.0 4 3 1397
TSD-3-216 18 216 5900 2891 16737 86.3% 7.5 3 3 1194
TSD-4-216 18 216 6200 3444 20058 86.3% 11.5 4 3 1417
TSD-4-228 19 228 6200 3225 19739 86.3% 10.6 4 3 1455
TSD-4-240 20 240 6200 3006 19420 86.3% 11.0 4 3 1475
TSD-5-240 20 240 6200 3881 25870 95.1% 15.0 5 3 1698
TSD-4-252 21 252 6200 2977 20144 86.3% 10.1 4 3 1513
TSD-IG Air Curtain | Heating Information Table
MODEL Number of Heaters Input mbtu / Hour per Heater Total Output mbtu / Hour Temp. Rise (˚F) Weight (lbs)
TSD-1-48IG 1 200 160 34.7 597
TSD-1-60IG 1 250 200 38.2 635
TSD-1-72IG 1 250 200 33.2 670
TSD-2-96IG 1 400 320 34.7 1191
TSD-2-108IG 1 400 320 32.5 1229
TSD-2-120IG 2 250 400 38.2 1267
TSD-2-132IG 2 250 400 35.5 1287
TSD-2-144IG 2 250 400 33.2 1337
TSD-3-144IG 2 250 400 29.0 1560
TSD-3-156IG 2 350 560 38.8 1628
TSD-3-168IG 2 350 560 37.1 1648
TSD-3-180IG 2 350 560 33.3 1686
TSD-3-192IG 2 350 560 31.8 1706
TSD-4-192IG 2 400 640 34.7 1929
TSD-3-204IG 2 400 640 37.0 1744
TSD-4-204IG 2 400 640 34.7 1967
TSD-3-216IG 2 400 640 35.4 1764
TSD-4-216IG 2 400 640 32.5 2272
TSD-4-228IG 3 350 840 41.3 2310
TSD-4-240IG 3 350 840 36.1 2330
TSD-5-240IG 3 350 840 36.5 2553

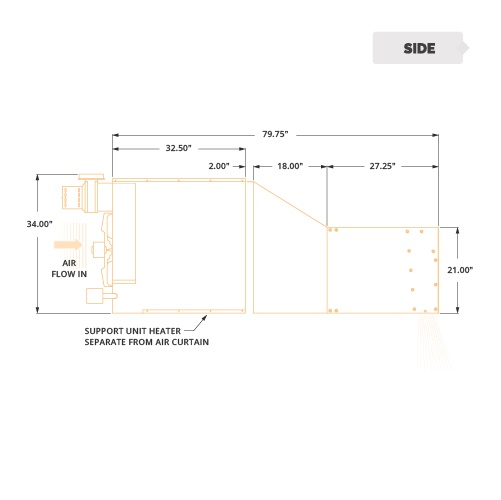

TSD-IG Air Curtain | Mechanical Table
MODEL Air Curtain Width (in.) Mounting Width (in.) Hanging Width (in.) Flue Diameter (in.) Heater Size Gas Inlet (in.)
TSD-1-48IG 51 47 30.63 5 200 0.5
TSD-1-60IG 63 59 30.63 5 250 0.75
TSD-1-72IG 75 71 30.63 5 250 0.75
TSD-2-96IG 99.13 95.13 48.63 6 400 0.75
TSD-2-108IG 111.13 107.13 48.63 6 400 0.75
TSD-2-120IG 123.13 119.13 30.63 5 2 × 250 0.75
TSD-2-132IG 135.13 131.13 30.63 5 2 × 250 0.75
TSD-2-144IG 147.13 143.13 30.63 5 2 × 250 0.75
TSD-3-144IG 147.25 143.25 30.63 5 2 × 250 0.75
TSD-3-156IG 159.25 155.25 48.63 6 2 × 350 0.75
TSD-3-168IG 171.25 167.25 48.63 6 2 × 350 0.75
TSD-3-180IG 183.25 179.25 48.63 6 2 × 350 0.75
TSD-3-192IG 195.25 191.25 48.63 6 2 × 350 0.75
TSD-4-192IG 195.38 191.38 48.63 6 2 × 400 0.75
TSD-3-204IG 207.25 203.25 48.63 6 2 × 400 0.75
TSD-4-204IG 207.38 203.38 48.63 6 2 × 400 0.75
TSD-3-216IG 219.25 215.25 48.63 6 2 × 400 0.75
TSD-4-216IG 219.38 215.38 48.63 6 2 × 400 0.75
TSD-4-228IG 231.38 227.38 48.63 6 3 × 350 0.75
TSD-4-240IG 243.38 239.38 48.63 6 3 × 350 0.75
TSD-5-240IG 243.5 239.5 48.63 6 3 × 350 0.75
