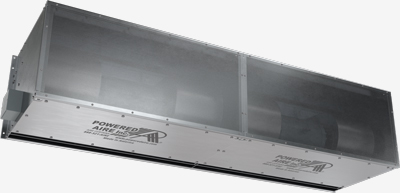

Twelve-Seventeen Door (TSD) Unheated Air Curtain

Unheated

The TSD is typically used over dock doors, ground level doors or large openings in an industrial environment. All industrial units are direct drive, which avoids misalignment of couplers and outboard bearings and eliminates periodic belt replacement.

Powered Aire, Inc. certifies model TSD shown herein is licensed to bear the AMCA Seal. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 211 and comply with the requirements of the AMCA Certified Ratings Program. The AMCA Certified Ratings Seal applies to airflow rate, average outlet velocity, outlet velocity uniformity, velocity projection and power rating at free delivery only. (May 2016)


Unit Sizing

Unit Width:
4' to 30'
Motor:
3 HP
Mount Type:
Exposed
Max Install Height:
17'
Wind Stoppage Ability:
= 19.8mph

Key Design Features

  • All weight bearing structural support is made of formed 11-gauge stainless steel and galvanized steel. Outer casing is constructed of 16-gauge stainless steel.
  • TSD has heavy duty 3 HP Total Enclosed Aire Over (TEAO) motors at 1160 rpm each, 50/60 cycle. Single speed.
  • Galvanized fans.
  • Air intake screen is perforated stainless steel.
  • Access panels for inspection, cleaning or removal of motor blower assembly, without having to lower the unit.
  • High efficiency discharge plenum with directional air foil vane factory set to facilitate deflection of air stream +/- 20 ̊.
  • Includes NEMA 12 control panel with magnetic motor starter, overload relays and control transformer.

Air Curtain Controls

  • Panel mounted HAND / OFF / AUTO switch
  • Magnetic Door Switch for activation

360 View

360 View | TSD - Twelve-Seventeen Door (TSD) Unheated Air Curtain

Cost Savings Calculator

This tool will help you understand the cost savings you could expect based on the air curtain you select and your input on how and where it will be used.

Calculate Now

Air Curtain Selector

This tool is designed to help you find the best air curtain
for your situation by asking a few basic questions.

Begin
TSD Air Curtain | Performance Table
MODELDoor
Width (ft.)
Nozzle
Width (in.)
Max. FPM
at Nozzle
Avg. Outlet
Velocity FPM
CFM at
Nozzle
Outlet Velocity
Uniformity
Power
Rating (kW)
Number of
Motors
Motor
HP
Weight
(lbs.)
TSD-1-4844862003881517495.1%3.013342
TSD-1-6056058003006485592%2.113380
TSD-1-7267259002891557986.3%2.513400
TSD-2-96896620038811034895.1%6.023681
TSD-2-1089108620034021002992%5.123719
TSD-2-1201012058003006971092%4.223757
TSD-2-13211132590029431043486.3%4.623777
TSD-2-14412144590028911115886.3%523797
TSD-3-14412144620038811552295.1%9.0331020
TSD-3-15613156620035511520392%8.1331058
TSD-3-16814168620034651592786.3%8.5331078
TSD-3-18015180620032001560886.3%7.6331116
TSD-3-19216192620031451633286.3%8.0331136
TSD-4-19216192620038812069695.1%12.0431359
TSD-3-20417204590029251601386.3%7.1331174
TSD-4-20417204620036302037792%11.0431397
TSD-3-21618216590028911673786.3%7.5331194
TSD-4-21618216620035592110186.3%11.5431417
TSD-4-22819228620033462078286.3%10.6431455
TSD-4-24020240620032952156086.3%11.0431475
TSD-5-24020240620038812587095.1%15.0531698
TSD-4-25221252620031122118786.3%10.1431513
TSD Air Curtain | Mechanical Information Table
MODELOverall Width (in.)Nozzle Width (in.)Mounting Width Rear (in.)Mounting Width Top (in.)MODELOverall Width (in.)Nozzle Width (in.)Mounting Width Rear (in.)Mounting Width Top (in.)
TSD-1-48514849.547TSD-4-264267.36264.36265.86263.36
TSD-1-60636061.559TSD-5-264267.48264.48265.98263.48
TSD-1-72757273.571TSD-4-276279.36276.36277.86275.36
TSD-2-9699.1296.1297.6295.12TSD-5-276279.48276.48277.98275.48
TSD-2-108111.12108.12109.62107.12TSD-4-288291.36288.36289.86287.36
TSD-2-120123.12120.12121.62119.12TSD-5-288291.48288.48289.98287.48
TSD-2-132135.12132.12133.62131.12TSD-6-288291.6288.6290.1287.6
TSD-2-144147.12144.12145.62143.12TSD-5-300303.48300.48301.98299.48
TSD-3-144147.24144.24145.74143.24TSD-6-300303.6300.6302.1299.6
TSD-3-156159.24156.24157.74155.24TSD-5-312315.48312.48313.98311.48
TSD-3-168171.24168.24169.74167.24TSD-6-312315.6312.6314.1311.6
TSD-3-180183.24180.24181.74179.24TSD-5-324327.48324.48325.98323.48
TSD-3-192195.24192.24193.74191.24TSD-6-324327.6324.6326.1323.6
TSD-4-192195.36192.36193.86191.36TSD-5-336339.48336.48337.98335.48
TSD-3-204207.24204.24205.74203.24TSD-6-336339.6336.6338.1335.6
TSD-4-204207.36204.36205.86203.36TSD-7-336339.72336.72338.22335.72
TSD-3-216219.24216.24217.74215.24TSD-5-348351.48348.48349.98347.48
TSD-4-216219.36216.36217.86215.36TSD-6-348351.6348.6350.1347.6
TSD-4-228231.36228.36229.86227.36TSD-7-348351.72348.72350.22347.72
TSD-4-240243.36240.36241.86239.36TSD-5-360363.48360.48361.98359.48
TSD-5-240243.48240.48241.98239.48TSD-6-360363.6360.6362.1359.6
TSD-4-252255.36252.36253.86251.36TSD-7-360363.72360.72362.22359.72
TSD-5-252255.48252.48253.98251.48
